Description

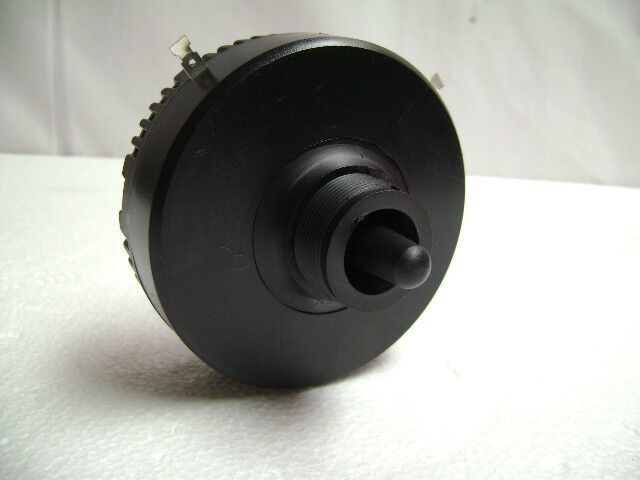

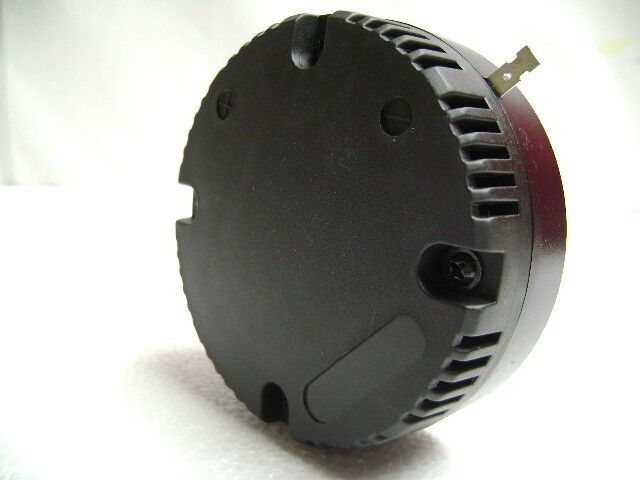

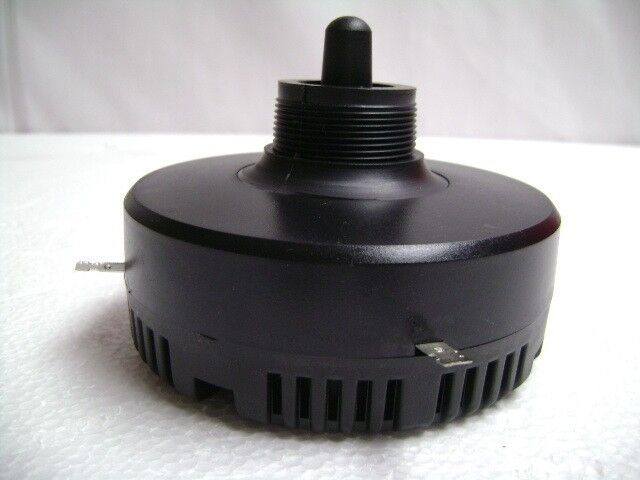

Aftermarket Replacement for Motorola KSN1188A Piezo Horn Driver
Piezo Horn Driver Similar to KSN1188A
The PZ1188 is specifically designed and engineered to be a replacement for the very popular KSN1188A piezo horn drivers from days gone by. Using a 22 mm ceramic piezo element, follow Standard 1-3/8" 18-TPI threads facilitate use with 1" horns. With a wide frequency range and ample power handling, this is also a prime candidate for new designs, especially if the crossover requirements must be kept to an absolute minimum. This 100 watt driver incorporates advanced protective circuitry which allows it to be used at power levels of up to 400 watts.
SPECIFICATIONS
- Power handling: 100 watts max
- Frequency response: 800-20,000 Hz
- SPL: 93 dB 1W/1m
- Dimensions: Diameter: 3-7/8", Depth: 3"
- WEIGHT 0.4 LBS
Finally, an affordable drop-in replacement for those vintage KSN1188A piezos! GRS piezo tweeters are built using a 22 mm ceramic piezo element, to the original specifications.
Highlights
Perfect replacement for many classic loudspeakers
No crossover required - great for simple, economical designs
Great for super tweeter applications in DJ/Karaoke systems
Equal or superior to products being sold for 8-10 times our price!
22 mm ceramic piezo element that follows original specs
