Description

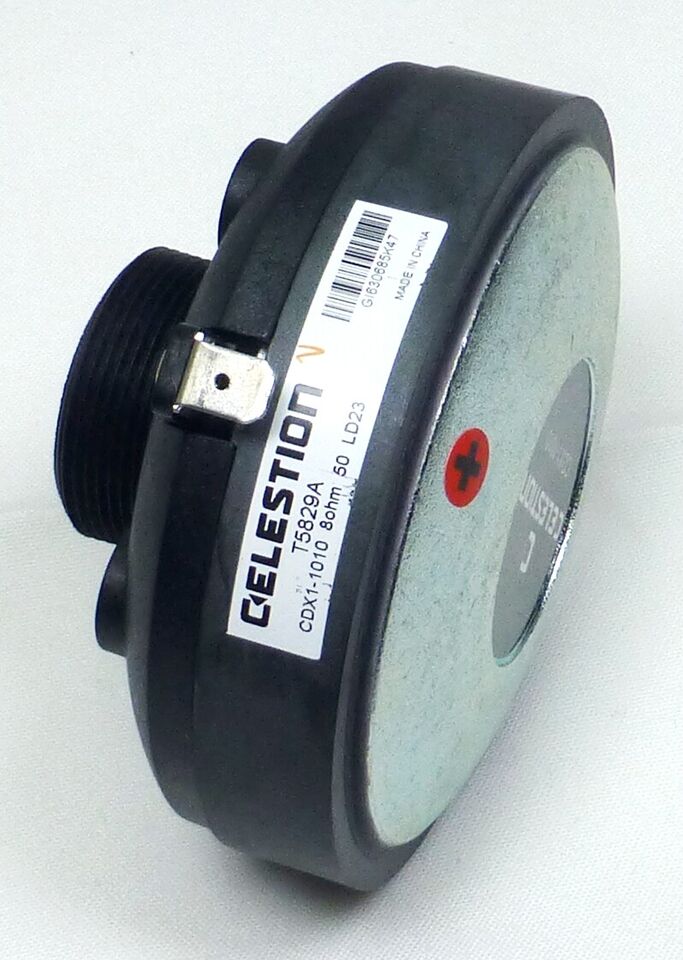

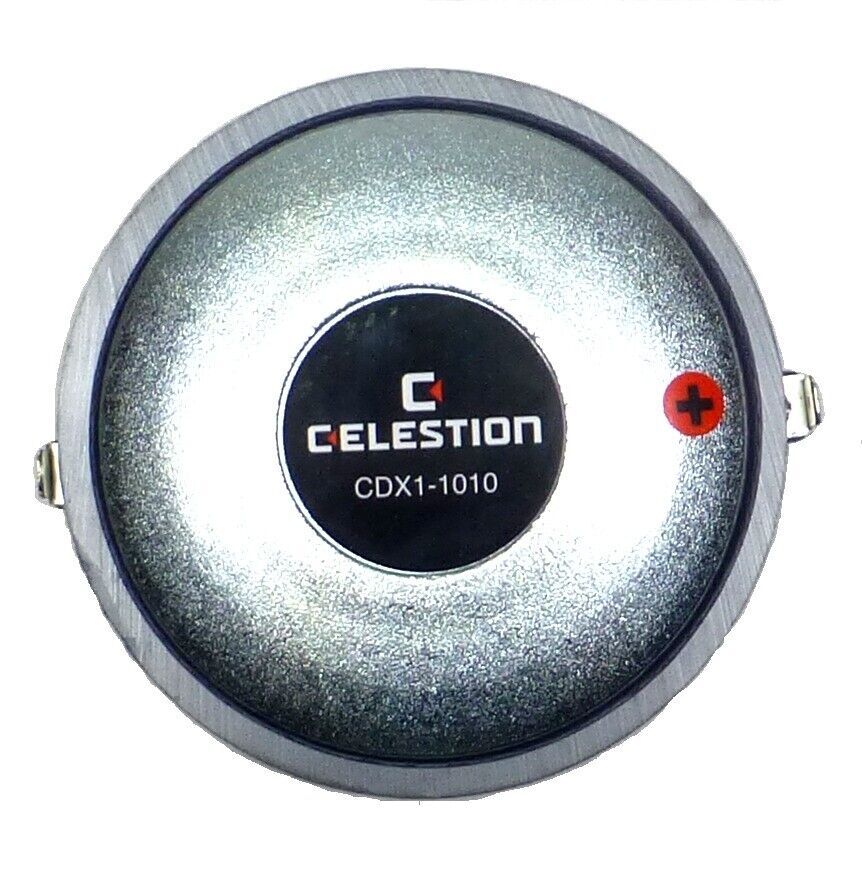

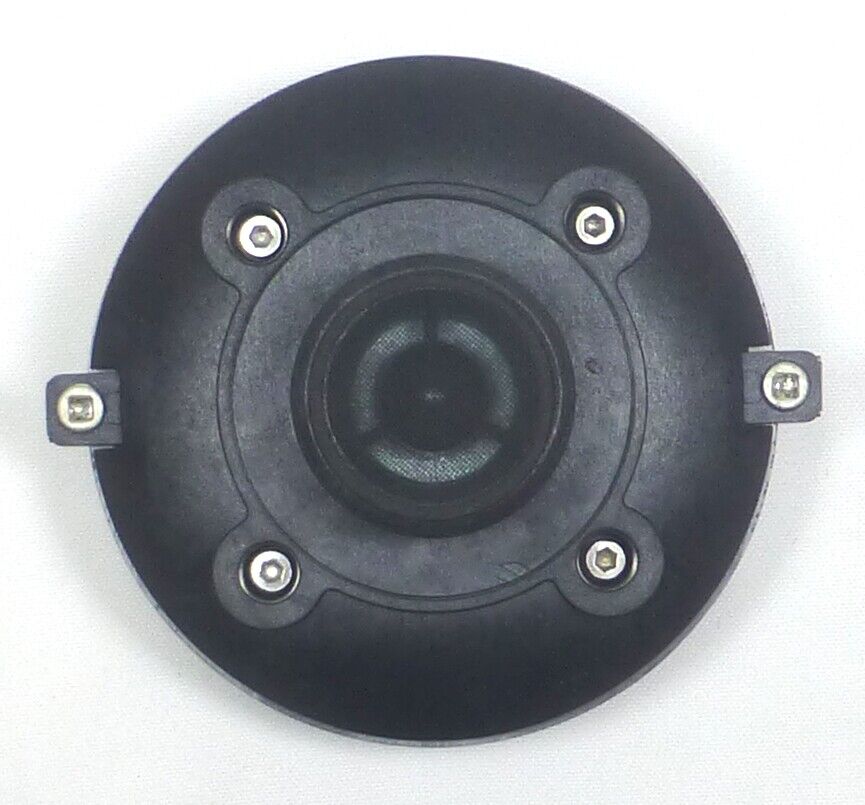

Celestion CDX1-1010 - Screw-On 1" Compression Driver / Ferrite @ 8 Ω
FEATURES
FEATURES
- 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
- 15W rms power handling (AES standard) and 107dB sensitivity
- Sound Castle™ clamping ensures even pressure on diaphragm assembly for reduced distortion
- One piece PETP diaphragm and surround
- Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
SPECIFICATIONS
- Power rating - 15 W rms (AES standard).
- Nominal impedance- 8 Ω
- Frequency range- 1,500-20,000Hz
- Sensitivity - 107dB 1W/1M
- Recommended min. crossover - 2,200Hz (12dB/oct)
- Voice coil diameter- 1-3/8"-18 TPI
- Voice coil material- Edgewound copper clad aluminium
- Magnet type- Ferrite
- Diaphragm material- PETP film
- Surround material- PETP film
- Mounting Information
- Overall width- 120mm/4.7in
- Overall depth- 56mm/2.2in

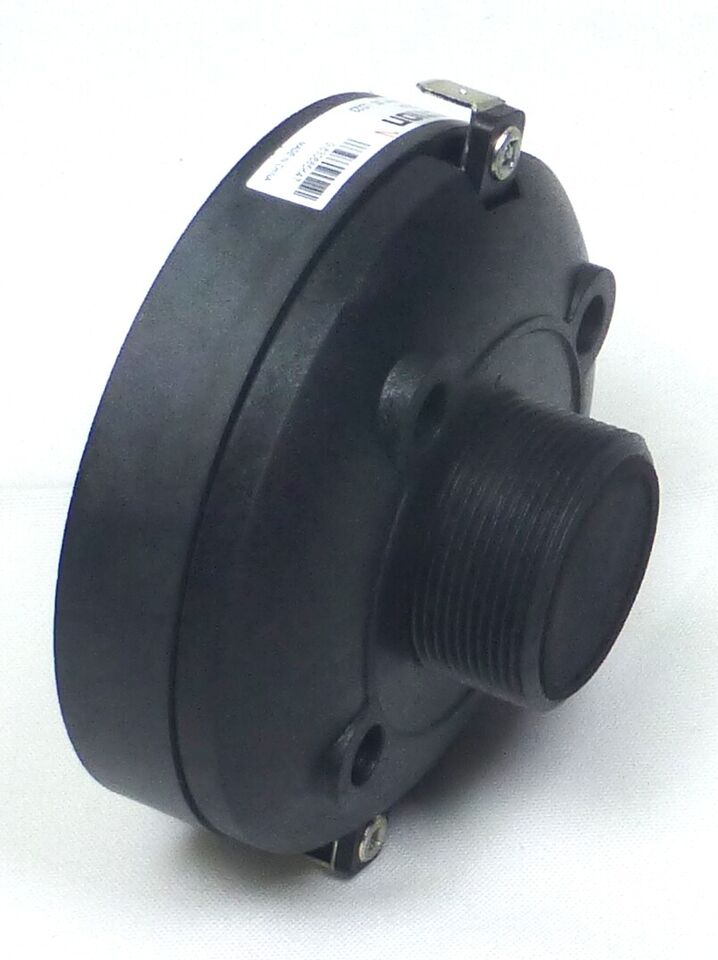

- Fitting- Screw (35mm, 1.38in dia)
- Throat exit- 25.4mm/1in
- Unit weight- 1.8 lbs (816.46gm)
Packed Dimensions & Weight
- Single pack size W x D x H- 140mm x 170mm x 70mm (5.5in x 6.7in x 2.8in)
- Single pack weight- 3lbs (1360.78gm)
