Description

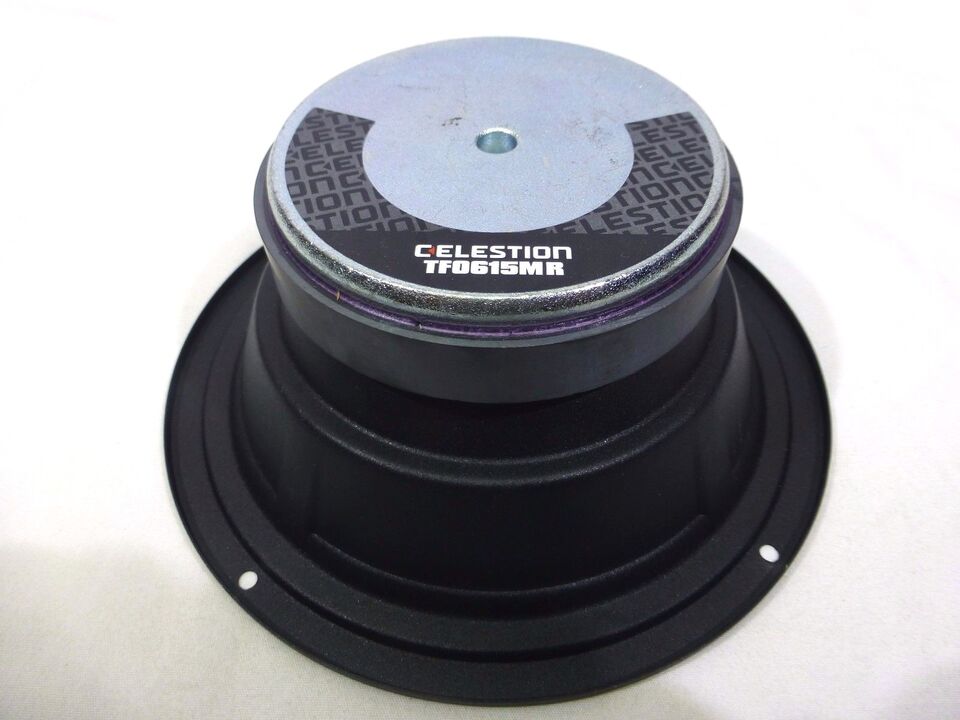

The Celestion TF0615MR 6.5" 50W Mid-Range Pressed Chassis Ferrite Speaker
Celestion speakers have been powering the sound of rock music for over half a century. Musicians worldwide rely on Celestion speakers for their fantastic sound and exceptional reliability. Whether it's the speaker in your guitar amp or a replacement PA speaker component, Celestion tests each speaker series rigorously to make sure you're getting a great-sounding speaker that's built to last. When you need great sound that's ready for serious use, you can count on Celestion speakers.This Celestion TF0615MR is a 6.5" replacement speaker, with 50-watts RMS power handling at eight ohms. It's an ideal replacement component for two-way and three-way systems. Celestion TF0615MR 6.5" PA Speaker Driver , 6" ferrite driver for PA speakers , Kevlar-loaded paper cone.
SPECIFICATIONS
- Nominal diameter: 6.5 inches (7 inch overall)
- Power rating: 50 Watts RMS
- Nominal Impedance: 8 ohms
- Sensitivity: 97dB
- Frequency Range: 500-5000Hz
- Voice Coil Diameter: 38mm/1.5 inches
- Chassis Type: Pressed steel
- Magnet Type: Ferrite
- Magnet Weight: 0.48kg/17oz
- Coil Material: Round copper
- Former Material: Polyimide
- Cone Material: Kevlar loaded paper
- Surround Material: Treated paper
- Suspension: Single
MOUNTING INFORMATION
- Overall Diameter: 178mm/7.01in
- Overall Depth: 74mm/2.91in
- Cut-out Diameter: 147mm/5.79in
- Mounting Slot Dimensions: Ø 4.3mm/0.17in
- Number of Mounting Slots: 4
- Mounting PCD Range: 168.5mm/6.63 inches
- Unit Weight: 1.4kg/3.1 lbs
