Description

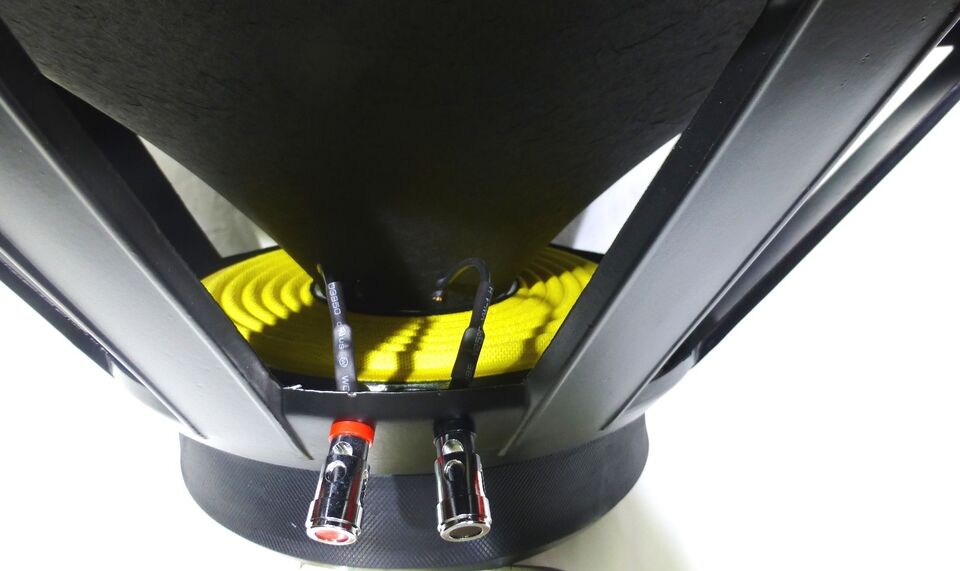

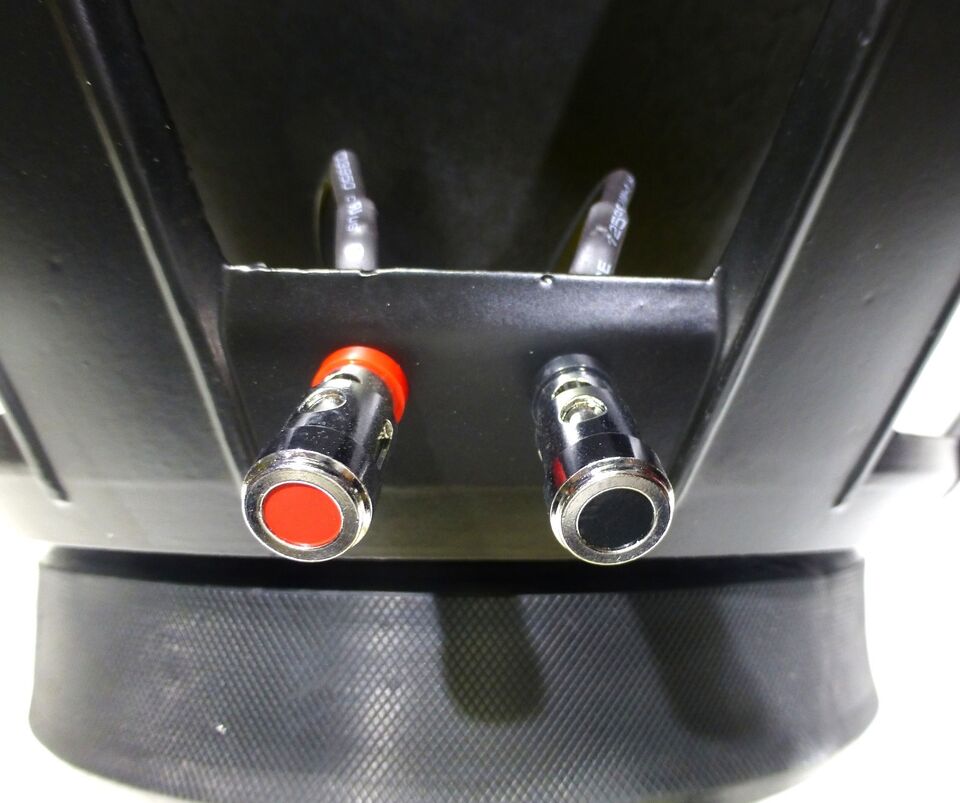

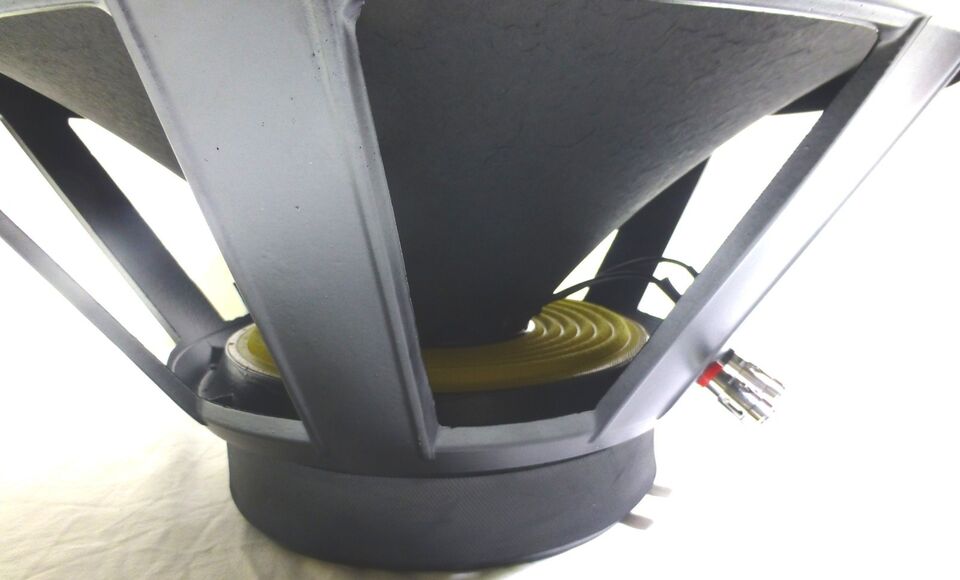

The LASE Replacement 18" Speaker for Bag End EL-18A / S18 / D18
@ 8 Ohm
3" Voice Coil
Suitable for use in the following models:
- S18- series
- D18- series
- AF1B- series
- QUARTZ- series
- PS18- series
- PD18- series
- PAF1B- series
- PQUARTZ- series
- IPS18- series
- IPD18- series
- IPQUARTZ- series
SPECIFICATIONS
- Nominal Basket Diameter: 18”, 457 mm
- Nominal Impedance: 8 Ohms
- Power Rating: Watts: 650W
- Music Program: 1300W
- Resonance: 28Hz
- Usable Frequency Range: 40Hz-2.4kHz
- Sensitivity: 99 dB
- Magnet Weight: 120 oz
- Gap Height: 0.375”, 9.53 mm
- Voice Coil Diameter: 3”, 76 mm
- Shipping Wt. 28.1 lbs, 13.75Kg
