Description

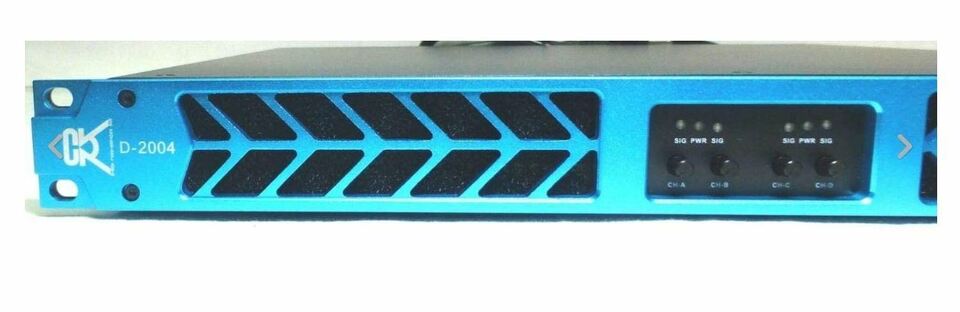

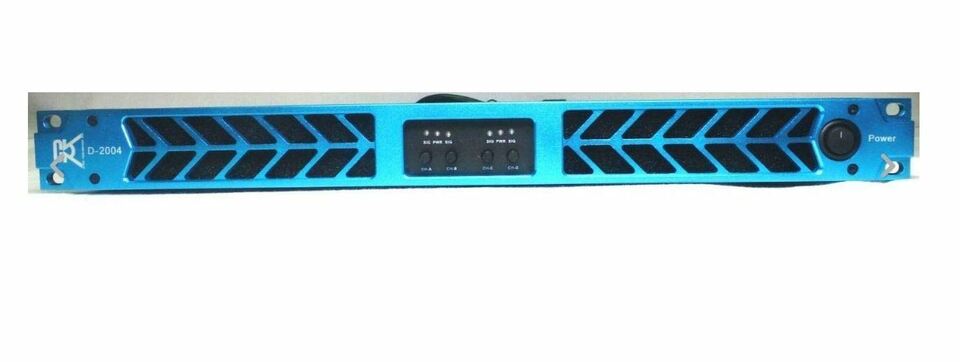

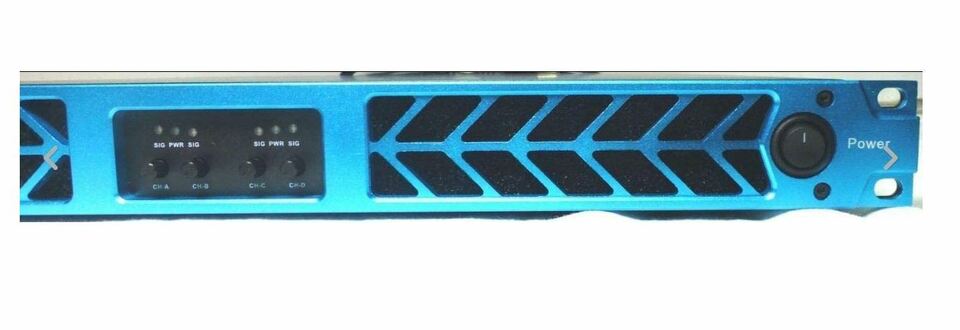

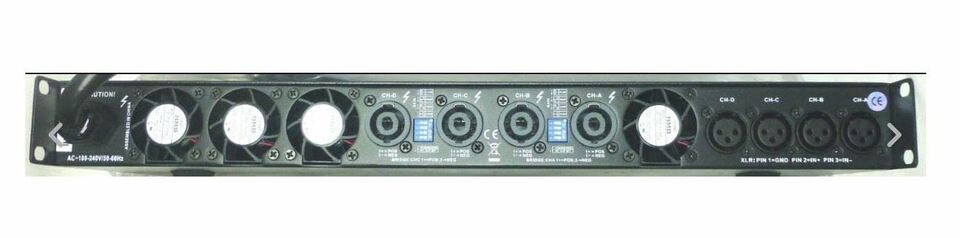

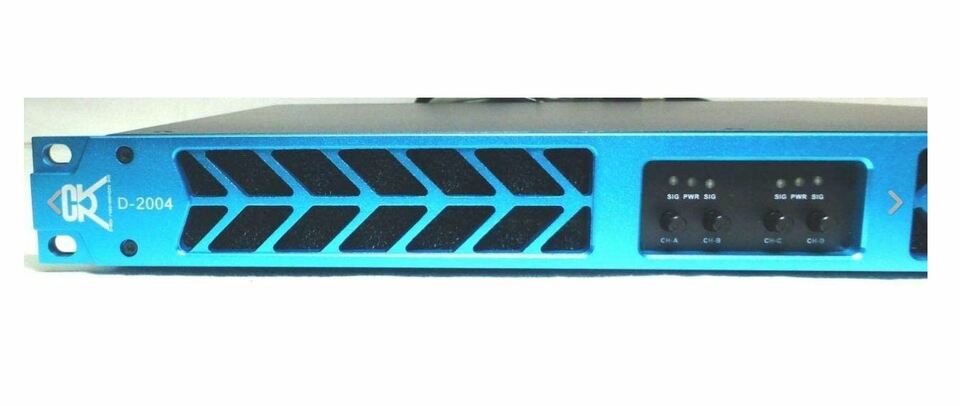

The CVR D-2004 Series 1U Professional Power Amplifier 2000 Watts x 4 Channels @ 8Ω
The CVR D-Series Powered Amplifiers employ an efficient D circuit design using high quality and reliable components. Compact and light weight at a 1U size rack space, the CVR D-series amplifiers are equipped with a complete, high speed protection system that prevents overheating, overloading, DC output etc. Also includes an independent logic wide range power supply which is designed to provide a great solution for all kinds of power requirements.
SPECIFICATIONS
- Class D Wiring
- 8Ω (RMS) 2000W x 4
- 4Ω (RMS) 3400W x 4
- 2Ω (RMS) 4760W x 4
- 16Ω Bridged Power (RMS) 4000W x 2
- 8Ω Bridged Power (RMS) 6800W x 2
- 4Ω Bridged Power (RMS) 9520W x 2
- Frequency Response 10Hz - 34kHz
- Signal-to-Noise Ratio >110 dBA
- Channel separation (Crosstalk) at 1 kHz >90 dB
- Input Connectors (per channel) 3-pin XLR, electronically balanced
- Output Connectors (per channel) speakon
- Damping factor >5000
- Slew Rate 50v/us
- RMS Output Voltage 89.4
- Tour Class Protection short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
- Operating voltage, 115v or 230v, 50 Hz or 60 Hz
- Input impedance 20 kOhm Level adjustment (per ch.)
- Front-panel potentiometer, 31 position detented from -inf to 0 dB
- Dimensions (W×H×D): 19" x 1.73" x 18.35" (483×44×465mm)
- Net weight: 26lbs 8oz (12kg)
