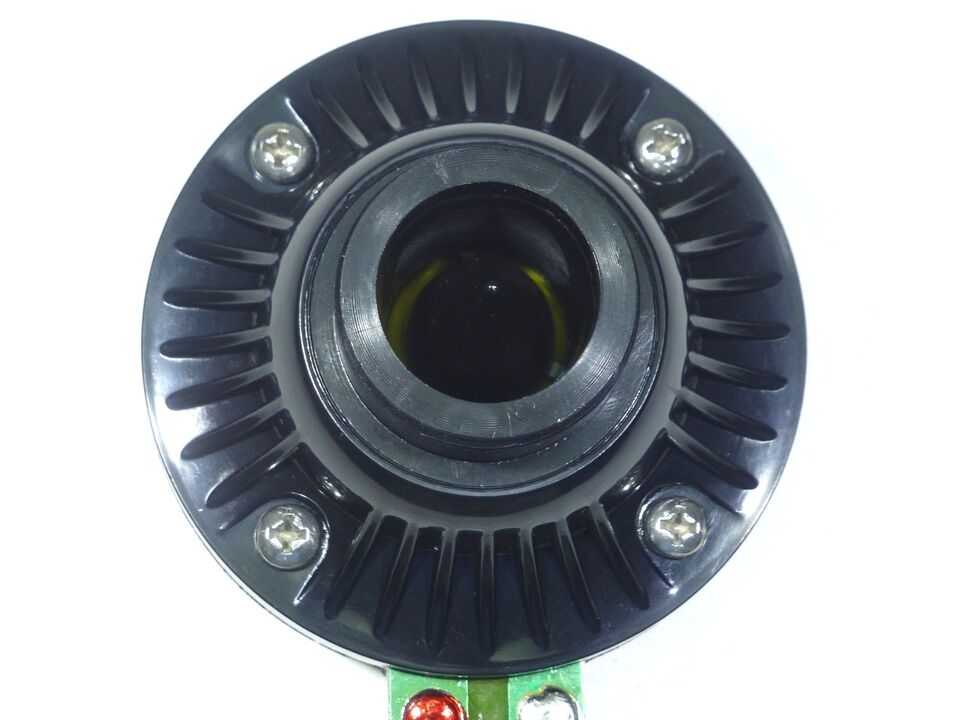

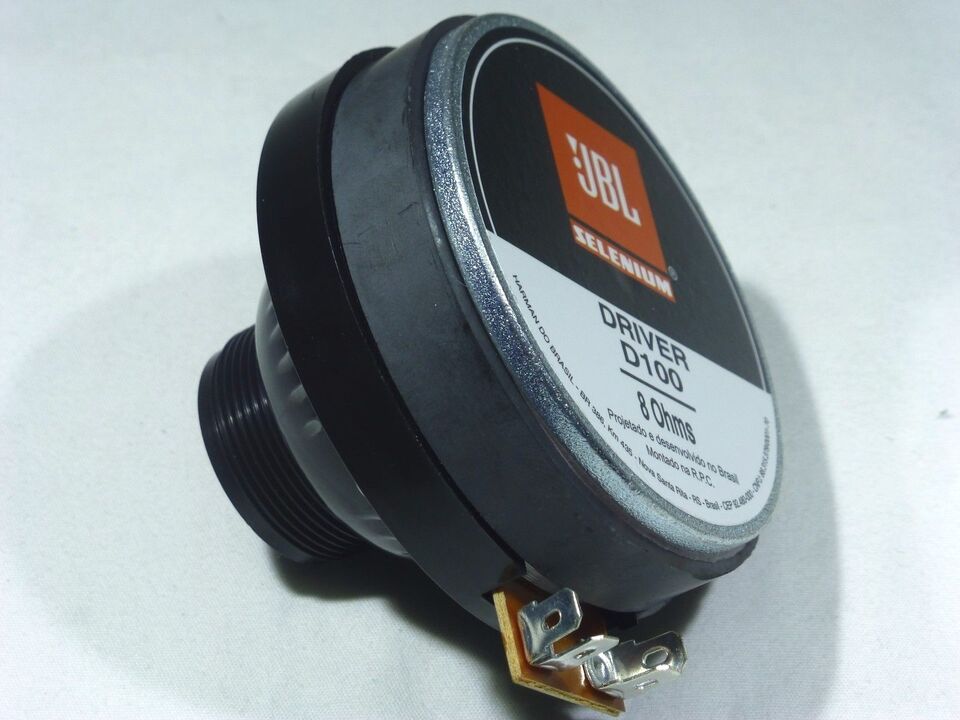

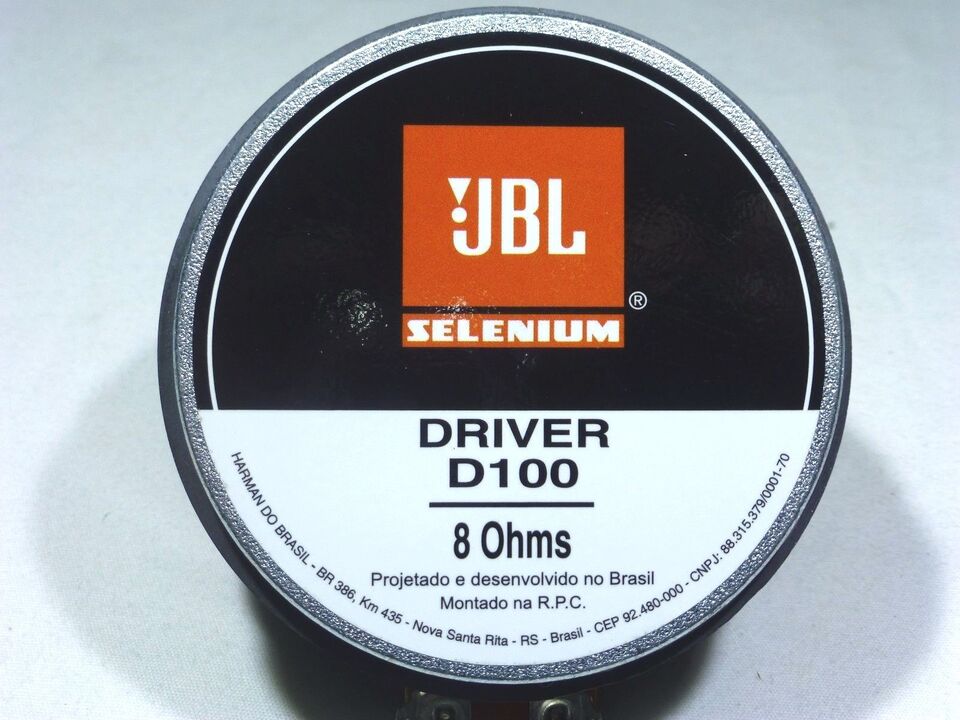

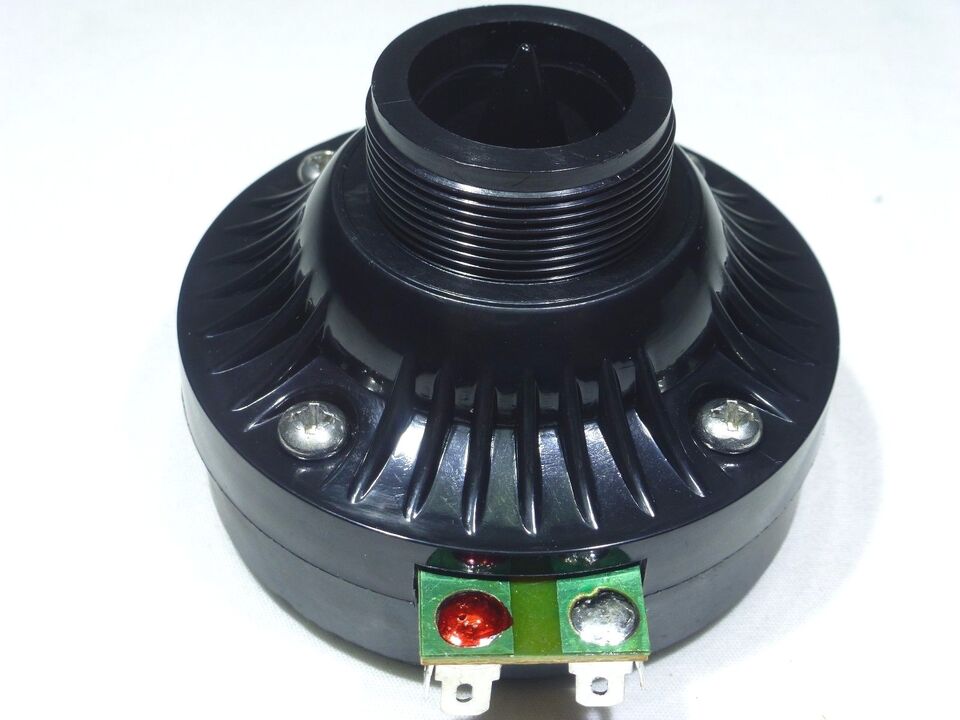

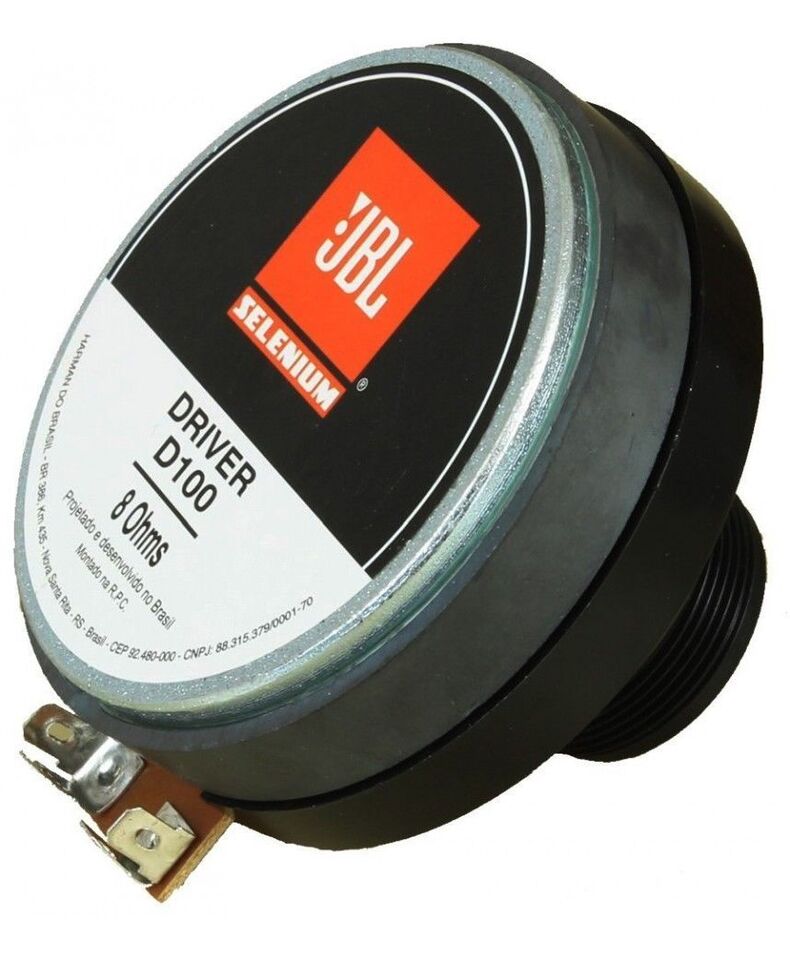

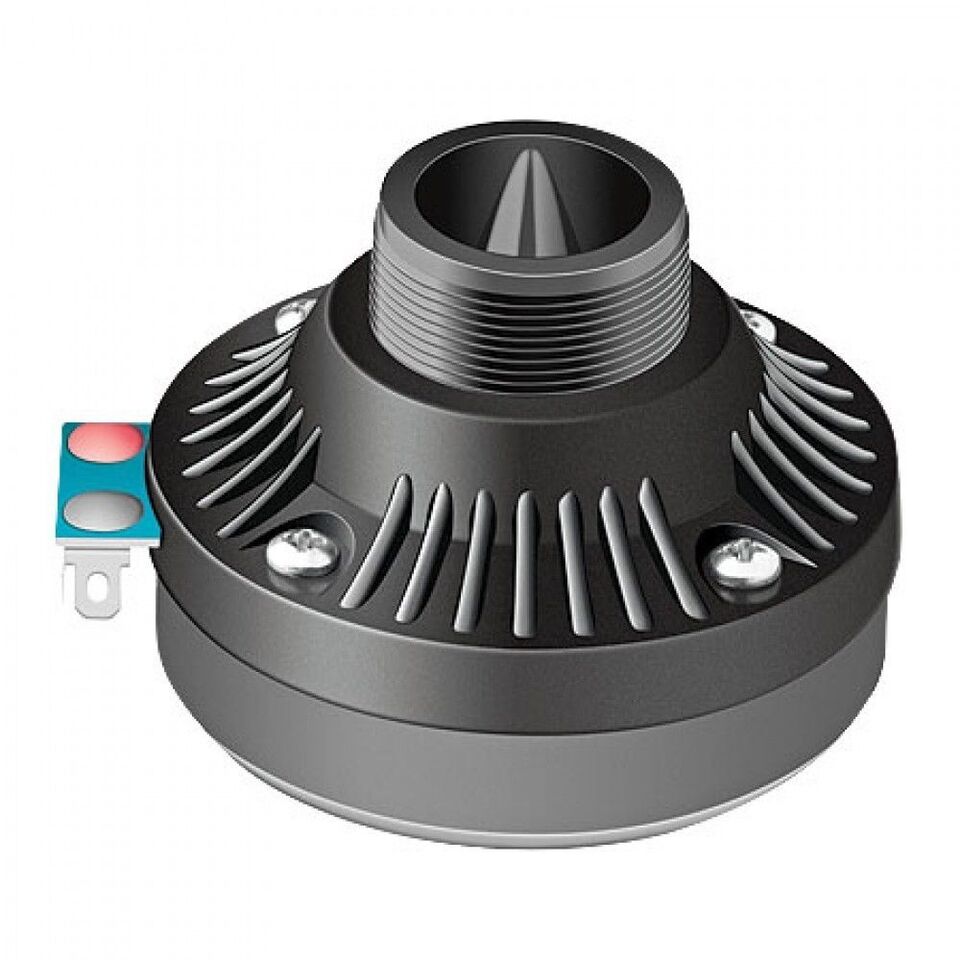

JBL / Selenium D100 Compression Phenolic Screw-On 1 3/8" Driver Tweeter 8 ohms

JBL / Selenium by Harman D100 Compression Phenolic Screw-On 13/8"Driver Tweeter @ 8 ohms

D100 Compression Phenolic Driver is designed for medium and high frequencies in acoustic boxes for general sonorizations.


SPECIFICATIONS

• Throat Diameter (in) – 1”
• Impedance (ohms) - 8
• RMS (W) – 60 Watts
• Musical Program (W) - 100
• SPL 1W @ 1m (dB) - 107
• Frequency Resp. @ -10dB (Hz) – 1500 to 15,000
• Rec. X-over, 12dB/oct min. (Hz) - 2000
• Voice Coil Diameter – 1" (25mm)
• Magnet weight (g) - 10 (290) – Barium Ferrite
• Housing material – Plastic
• Horn Connection – Screw on
• Weight (lbs) – 2.00
