Description

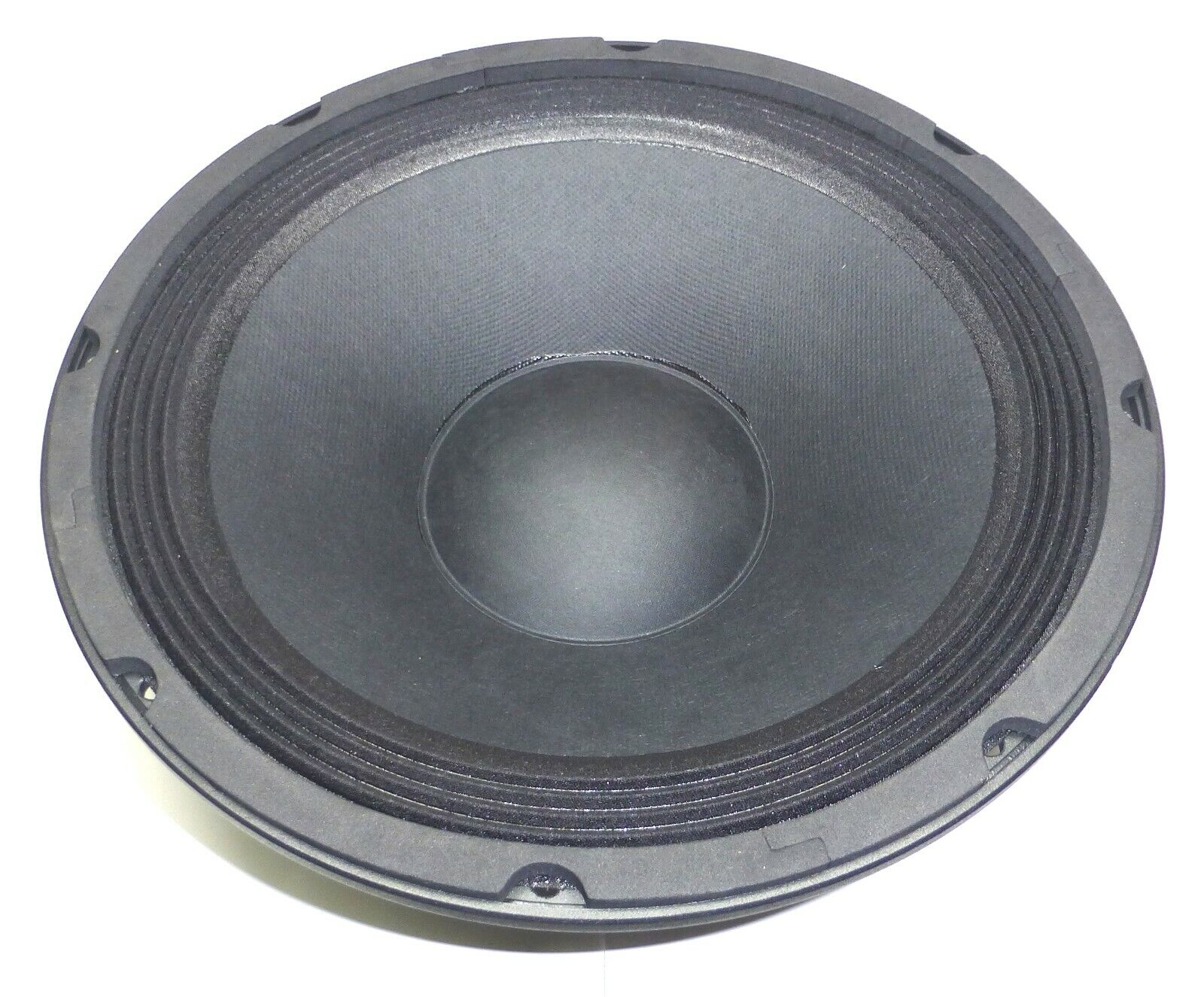

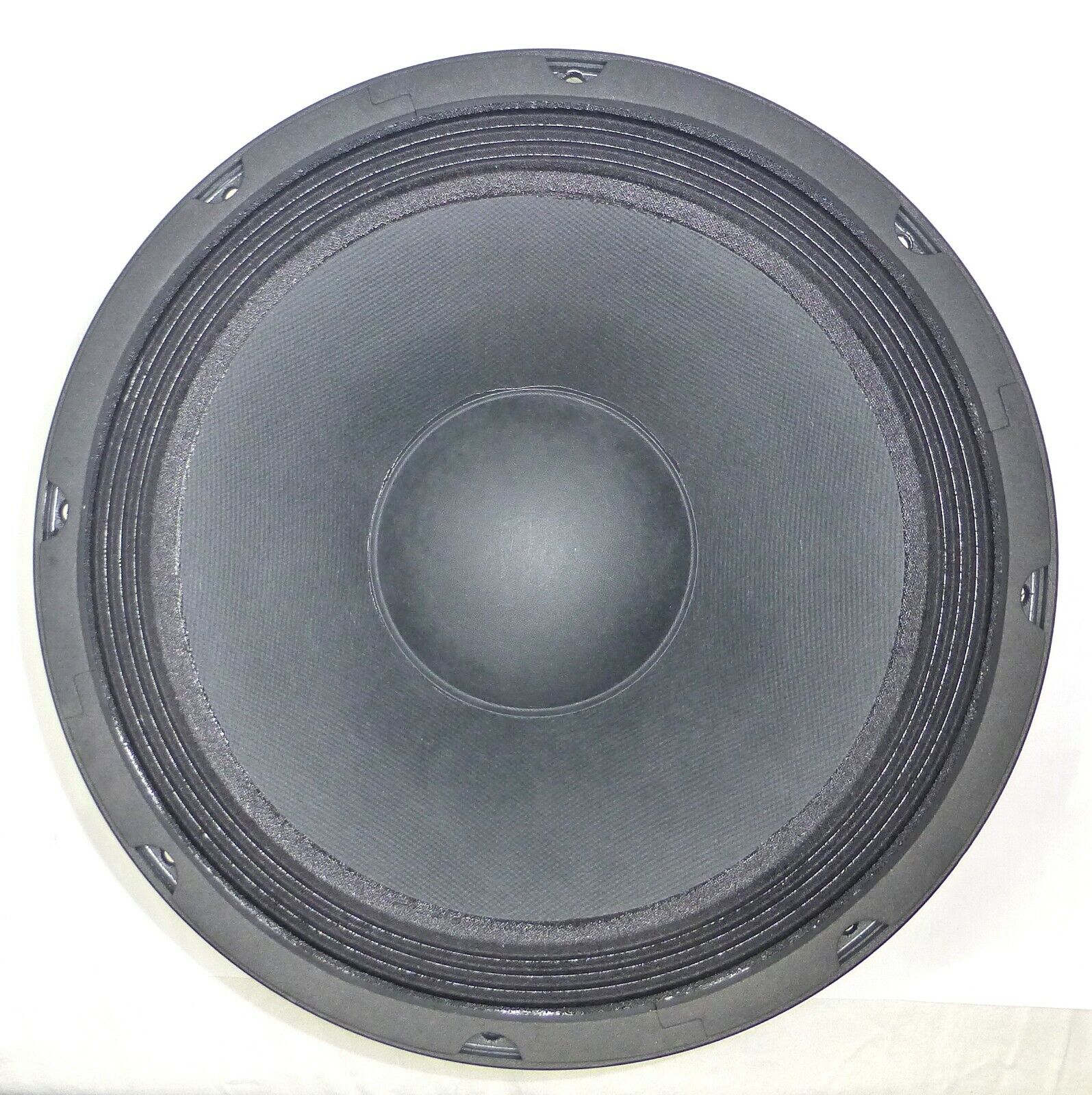

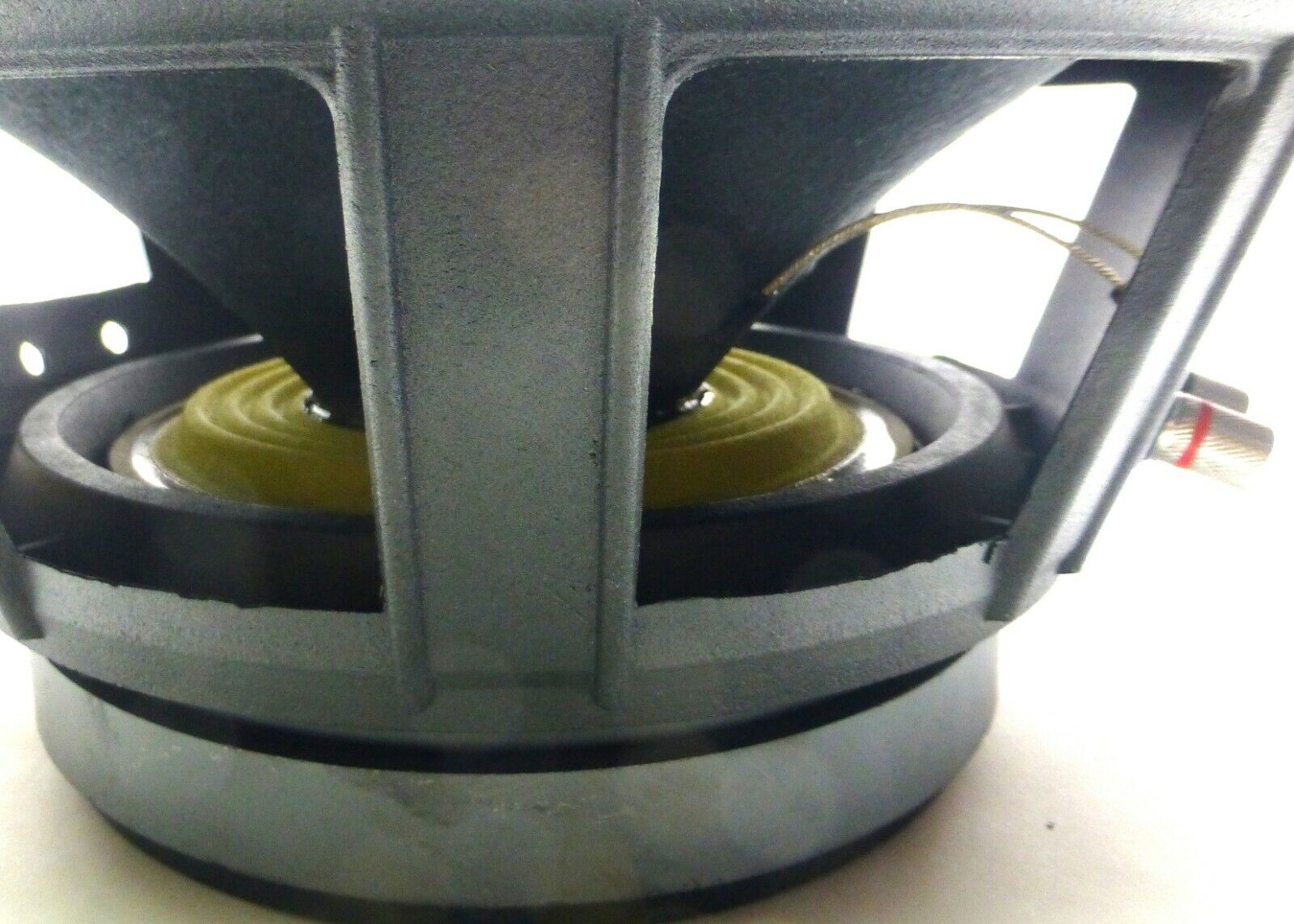

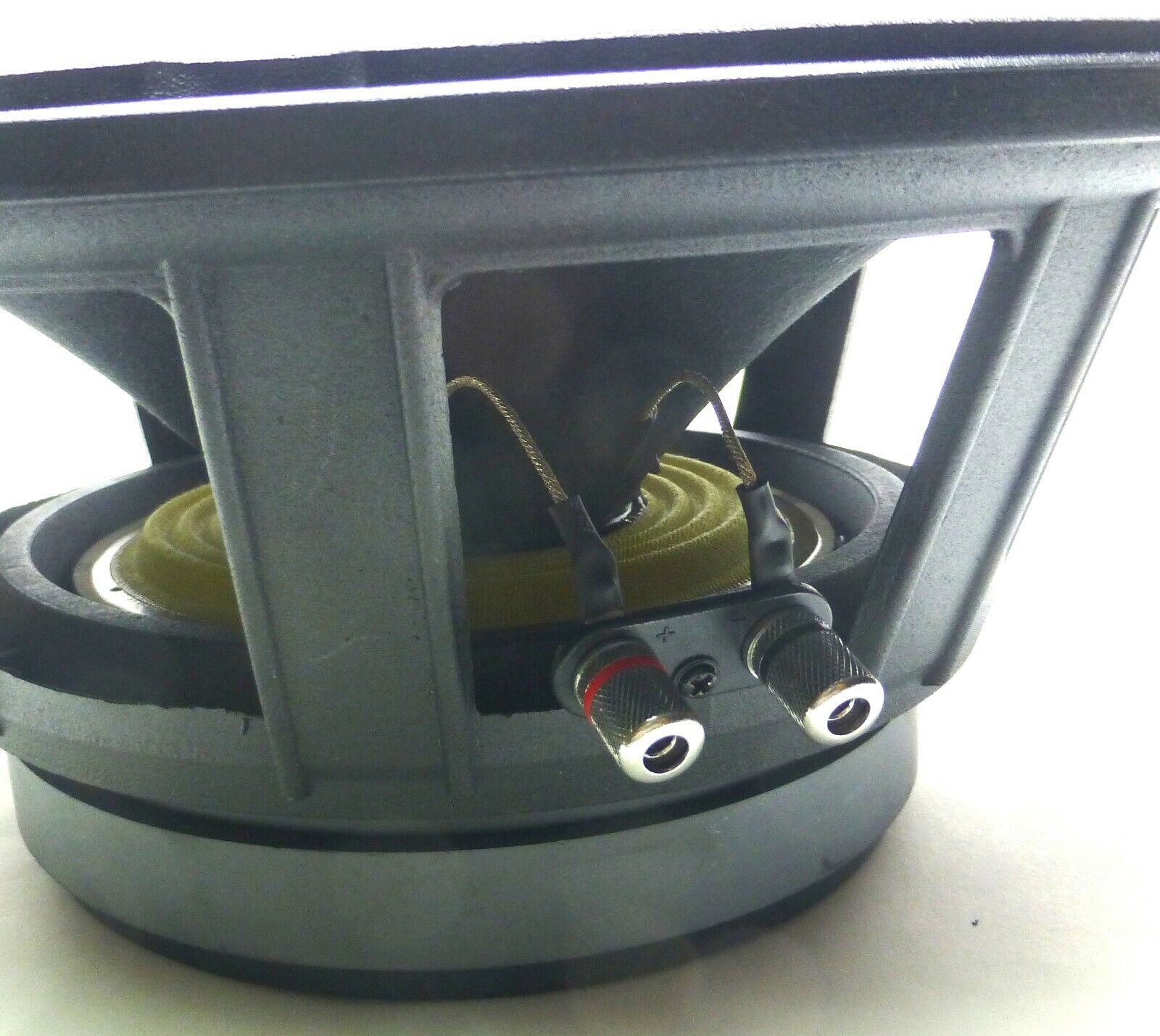

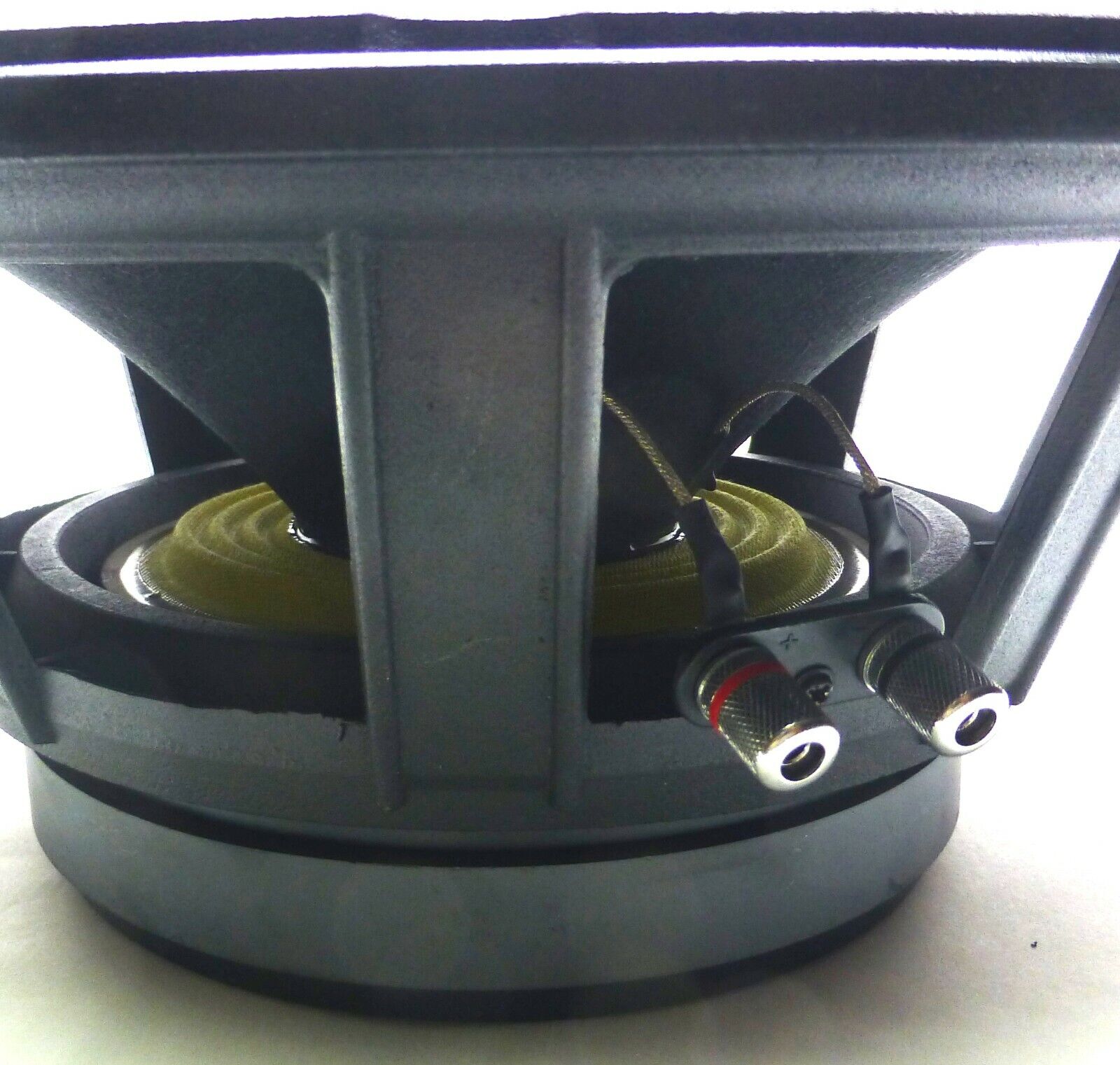

The LASE PRO 12A speaker is an excellent replacement for the EAW 804058, 804051, & 804087 speakers for application in the EAW KF940, BH760, & DCS2 subwoofers. It is recommended for use in professional audio as a sealed / vented mid-bass or in a vented bass enclosure incorporating a high-pass filter. Also works great in horn-loaded designs, thanks to its high motor strength. We are confident that the PRO 12A will fulfill all your pro-audio needs!
FEATURES
- Professional bass / mid-bass speaker
- Polyamide-imide coated copper voice coil
- Kapton coil former
- 1000 watt continuous program power handling.
- High sensitivity and low distortion
- Shaped shallow triple-roll damped surround
- Primarily designed to be horn loaded in medium and long throw system
- Ferrite magnet
SPECIFICATIONS
- Nominal Diameter: 12"
- Power Handling (rms): 500 watts
- Power Handling (max): 1000 watts
- Impedance: 8 ohm
- Frequency Response: 57 to 2,800 Hz
- Maximum Linear Excursion (Xmax): 4.8mm
- Sensitivity: 97.1db 1w/1 m
- Voice Coil Diameter: 3"
- Magnet Weight: 5 lbs
