Description

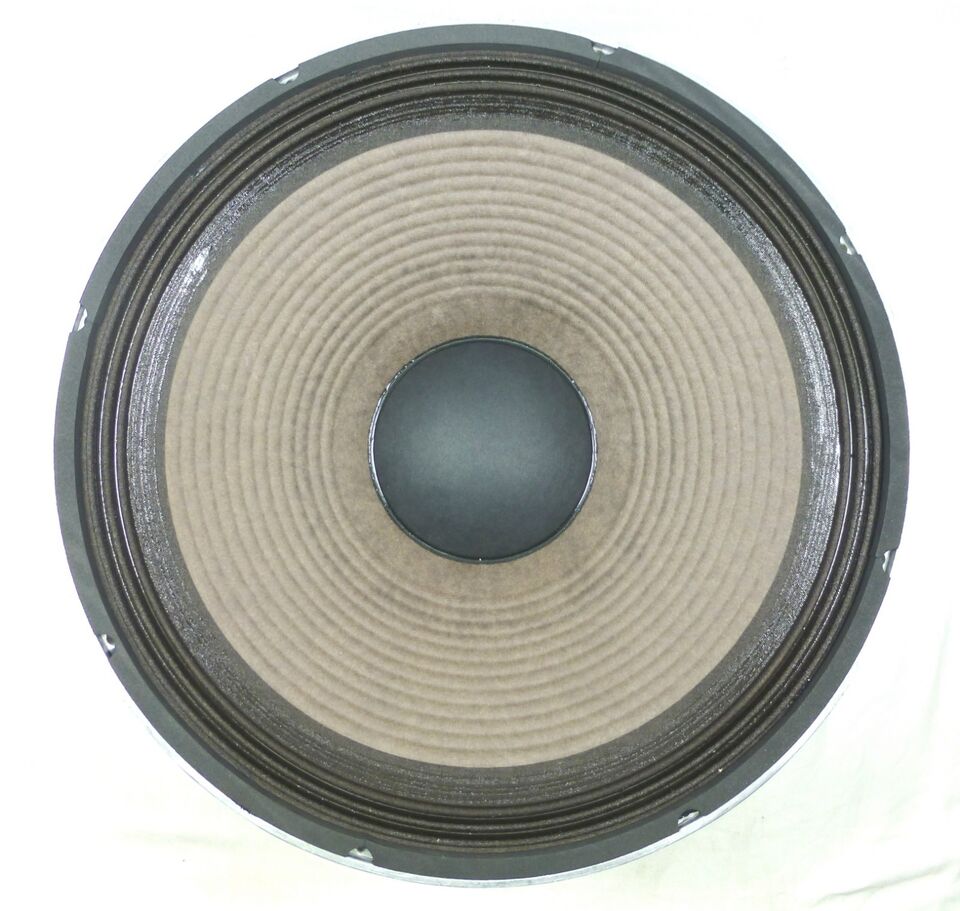

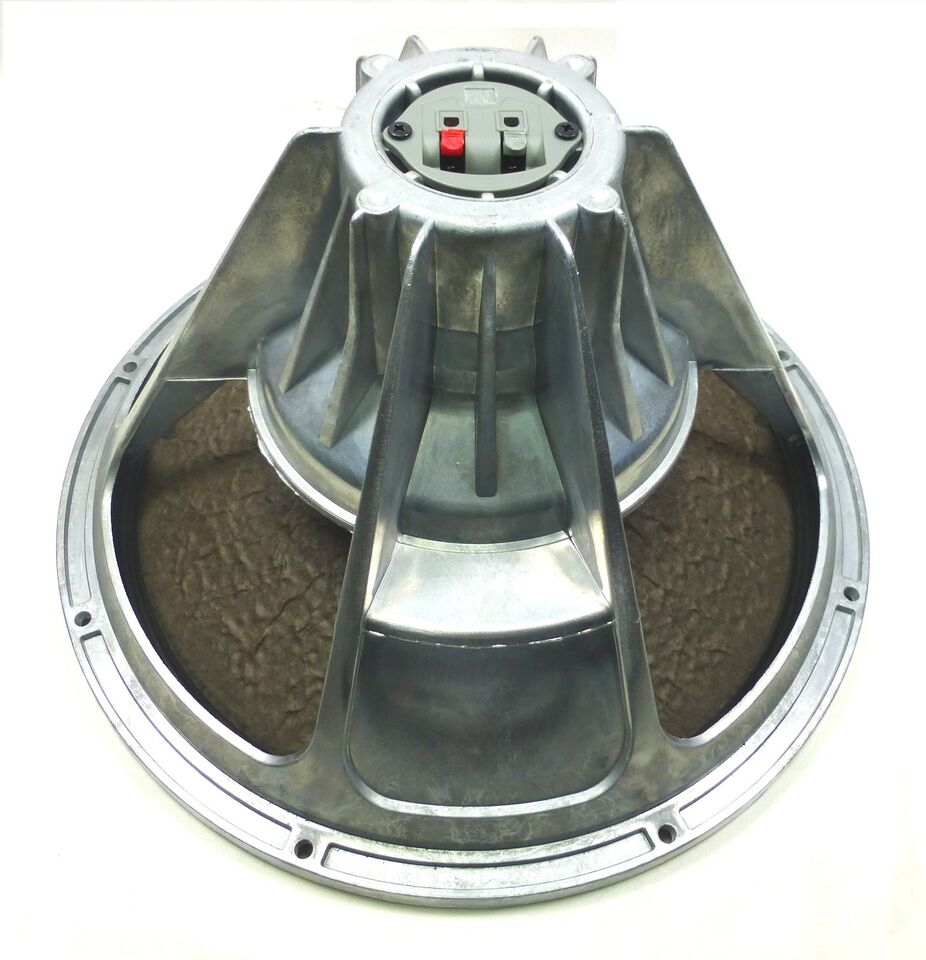

LASE 15" Replacement Differential Woofer for JBL 2266H
Compatible with the following models:
- JBL SRX 715
- JBL SRX 725
- JBL VRX 915
- JBL Vertex 4888

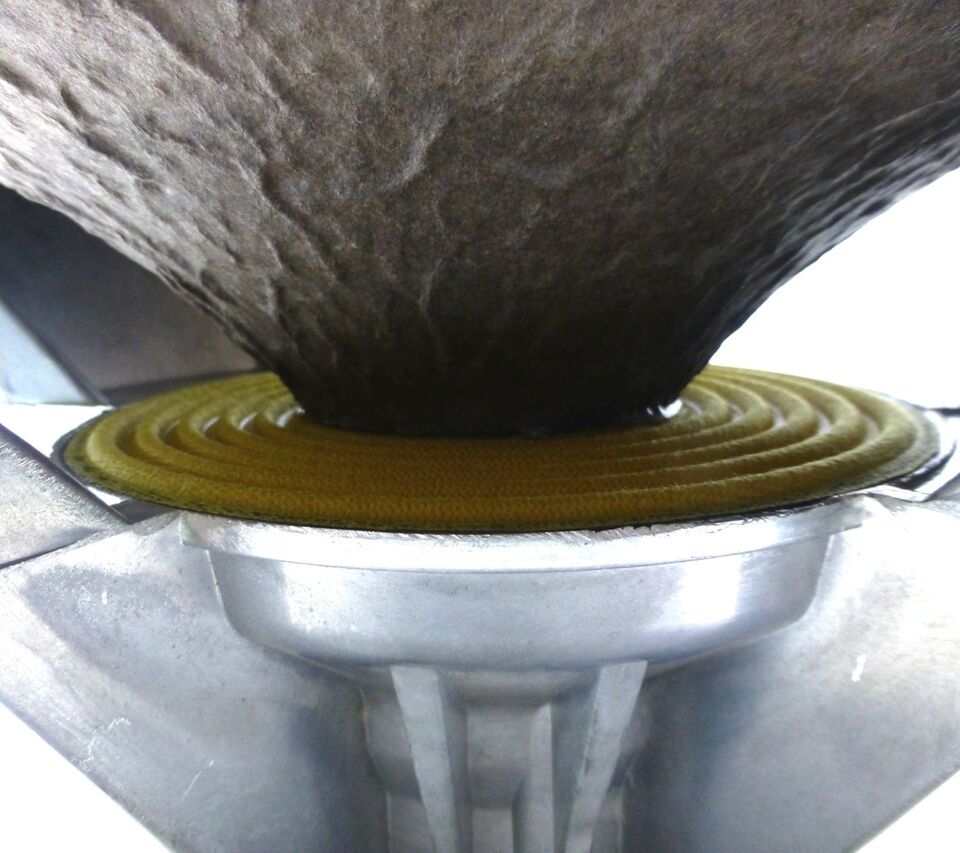

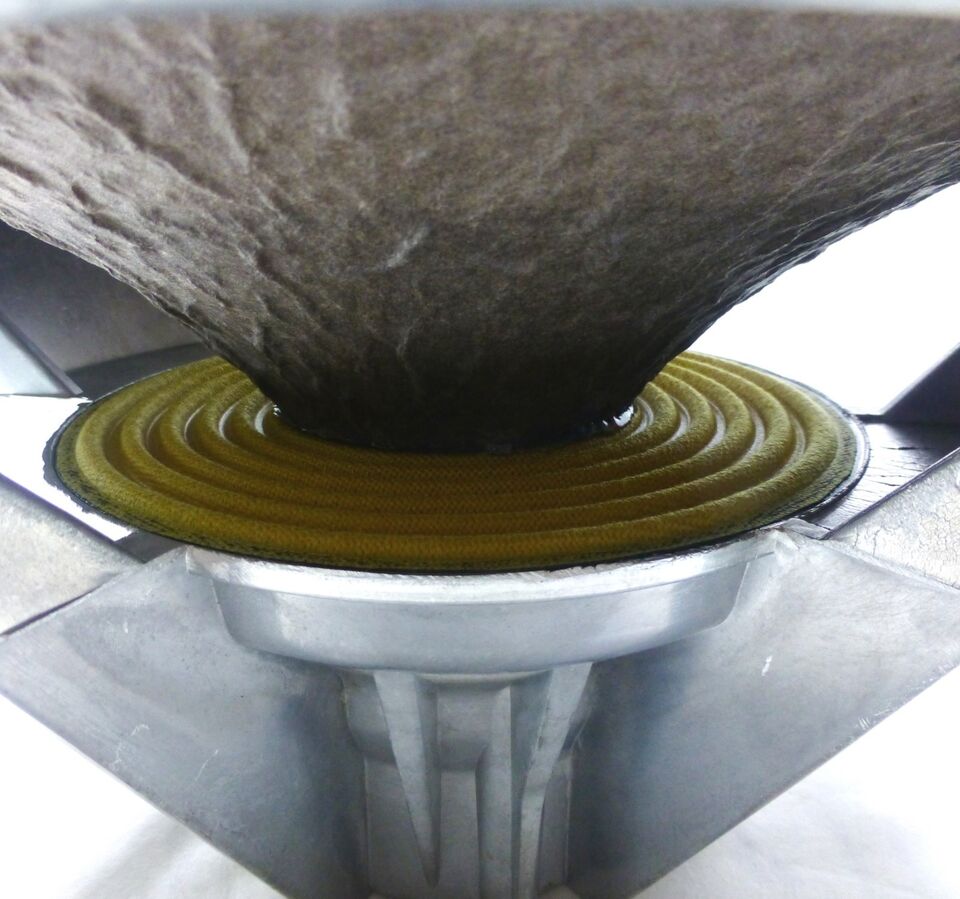

The LASE 15" Replacement Differential Woofer for JBL 2266H is capable of reproducing full-bandwidth sound at high levels. Its neodymium magnet and dual voice coils allow it to perform better than conventional designs with less distortion at a fraction of the weight. Features a 381 mm (15 in) differential drive® transducer integrated woofer with dual 3” voice coils that are wound in the opposite direction within magnetic fields of opposite polarity. Additionally, these voice coils are arranged in an inline configuration instead of the traditional single voice coil gap configuration.
SPECIFICATIONS
- Nominal Diameter: 15"
- Power Handling
- RMS: 750 W
- Max: 1500 W
- Nominal Impedence: 4 ohm
- Sensitivity: 97 dB 1W/1m
- Voice Coil Diameter: 3"
- Shipping Weight 13.85 lbs
THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs): 37 Hz
- DC Resistance (Re): 5.1 ohms
- Voice Coil Inductance (Le): 1.7 mH
- Mechanical Q (Qms): 3.3
- Electromagnetic Q (Qes): 0.36
- Total Q (Qts): 0.32
- Compliance Equivalent Volume (Vas): 6.22 ft.³
- Maximum Linear Excursion (Xmax): 8 mm
