Description

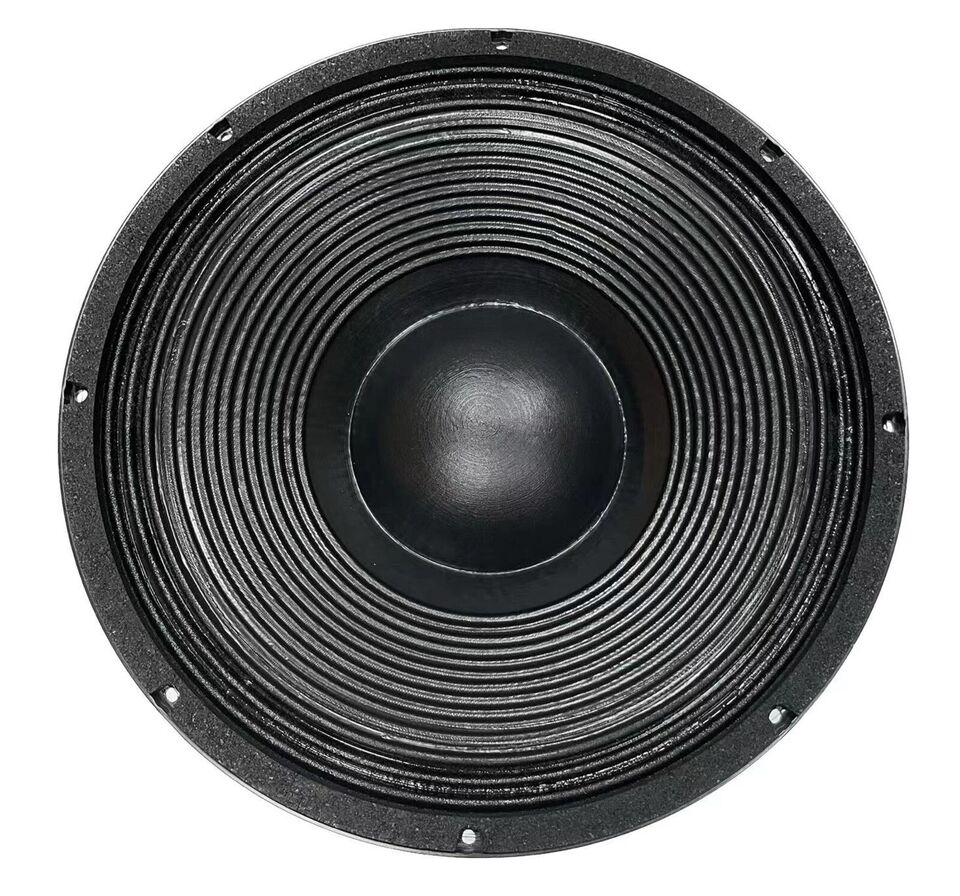

The LASE 21NLW-6000-8 Low Frequency 21" Neodymium Woofer Speaker
With 6" voice coil
The LASE 21NLW-6000 low frequency transducer is the result of many years of development with the goal of creating new levels of professional audio performance standards. This products features advancements and improvements in all the key areas of transducer technology. Incredibly linear frequency response characteristics, the highest power handling of any comparable transducer, the lowest power compression. The LASE 21NLW-6000 features a fibre loaded cone assembly along with a high excursion triple roll, constant geometry surround: this combination provides remarkable strength and a peak to peak maximum excursion of 54 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
SPECIFICATIONS
- AES Power Rating: 3000 W
- Program Power: 6000 W
- Impedance: 8 ohm
- Sensitivity: 97 db
- Frequency Response: 30 Hz - 1.2Khz
- Voice coil Diameter: 6" (152 mm)
- Weather protected cone and plates for outdoor usage
- Suitable for ultra low frequency systems.
- Weight: 48 lbs (21.8Kg)
- Dimensions: 21.65 "(550mm) x 9.44" (240mm)
THIELE & SMALL PARAMETERS
- Resonance Frequency: 30Hz
- DC Resistance: 5.2 ohm
- Mechanical Factor: Qms 7.5
- Electrical Factor: Qes 0.24
- Total Factor: Qts 0.23
- BL Factor: BL 40T-M
- Effective Moving Mass: 355 grams
- Xmax: 13.5mm
- Compliance: 385 liters/13.59 cu.ft
- Shipping Weight: 51.8 lbs (23.5 Kg)
- Shipping Box (single): 22.91" x 22.91" x 11.22" (58.2 x 58.2 x 28.5 cm)
