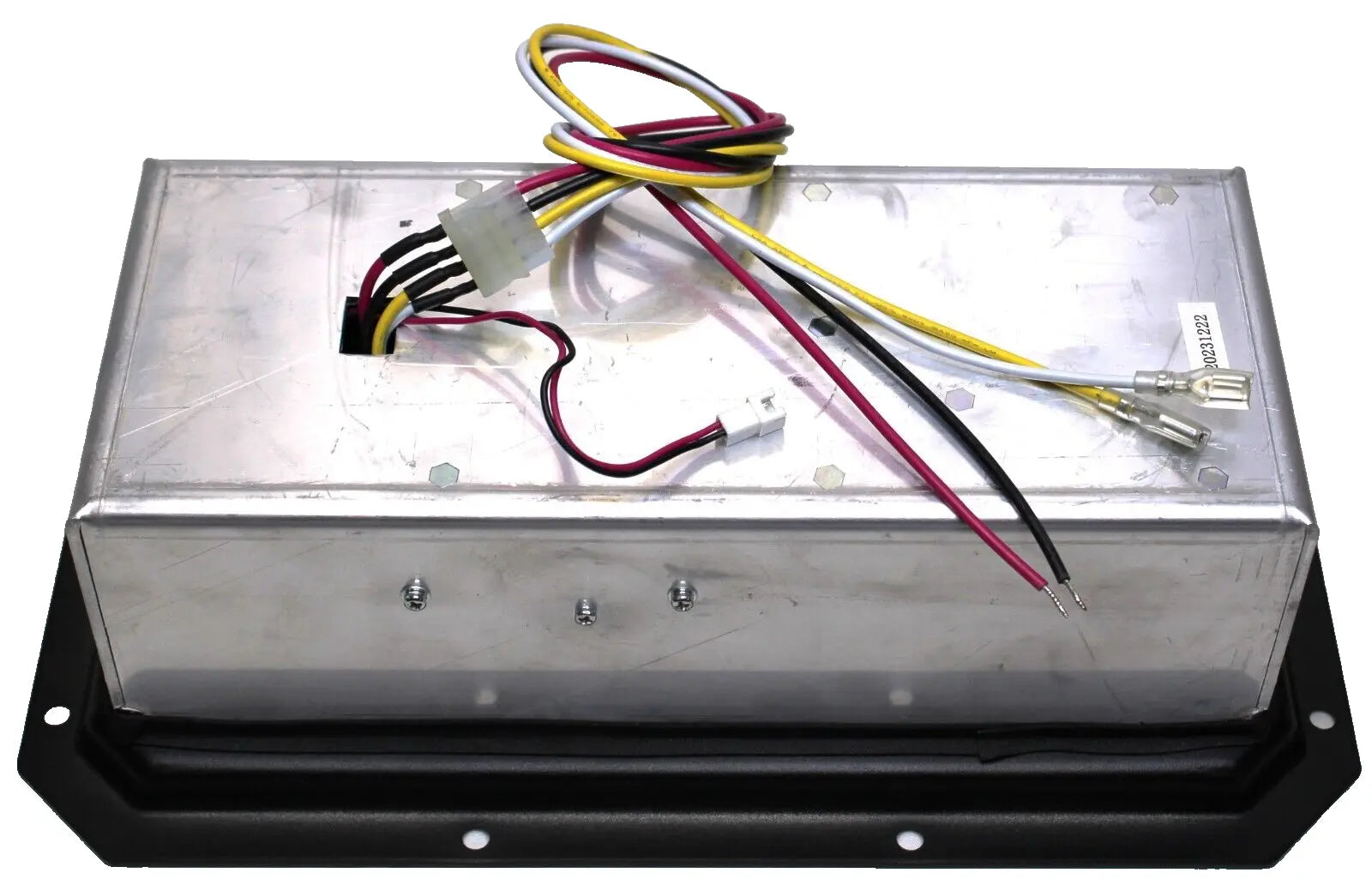

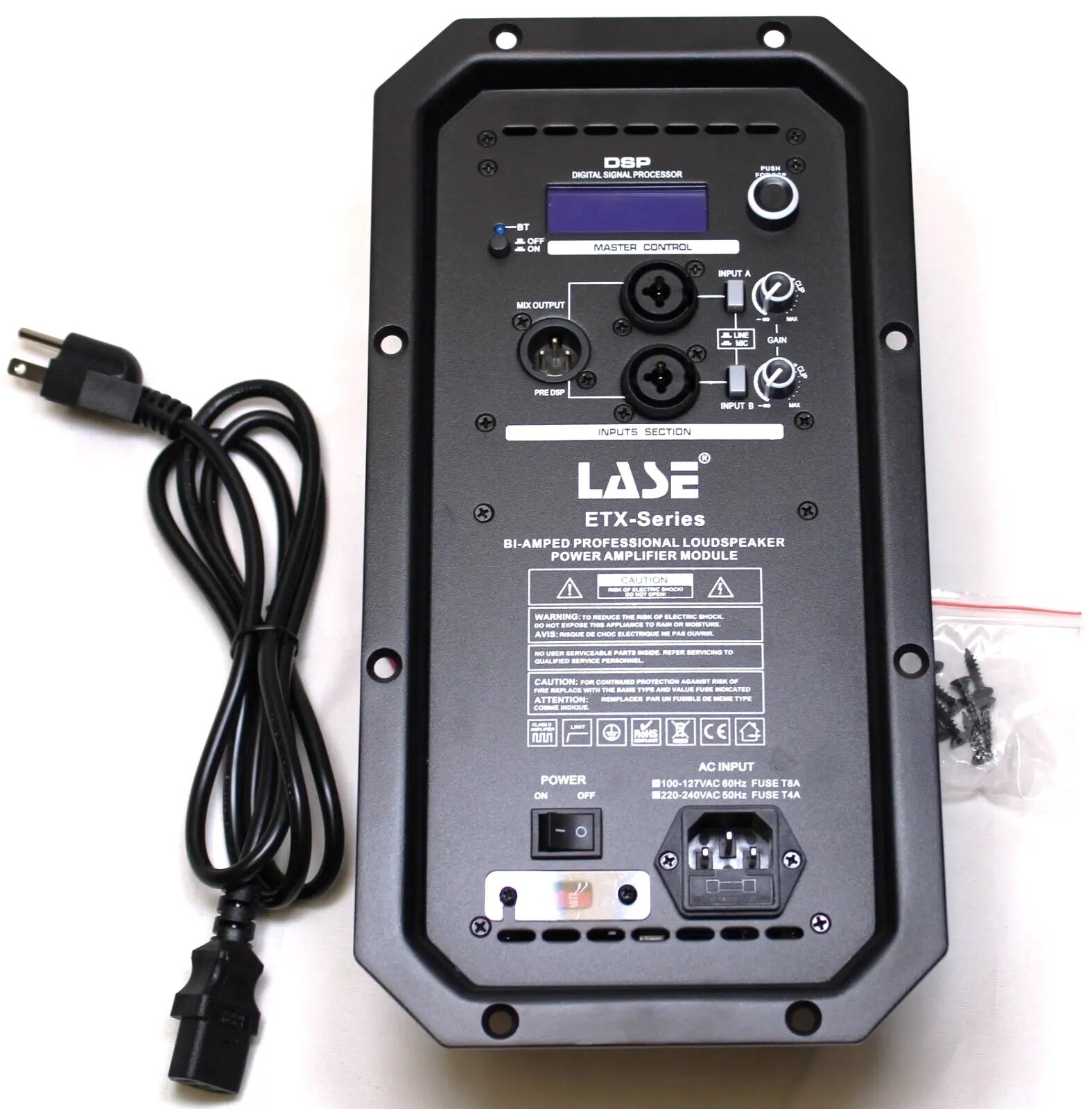

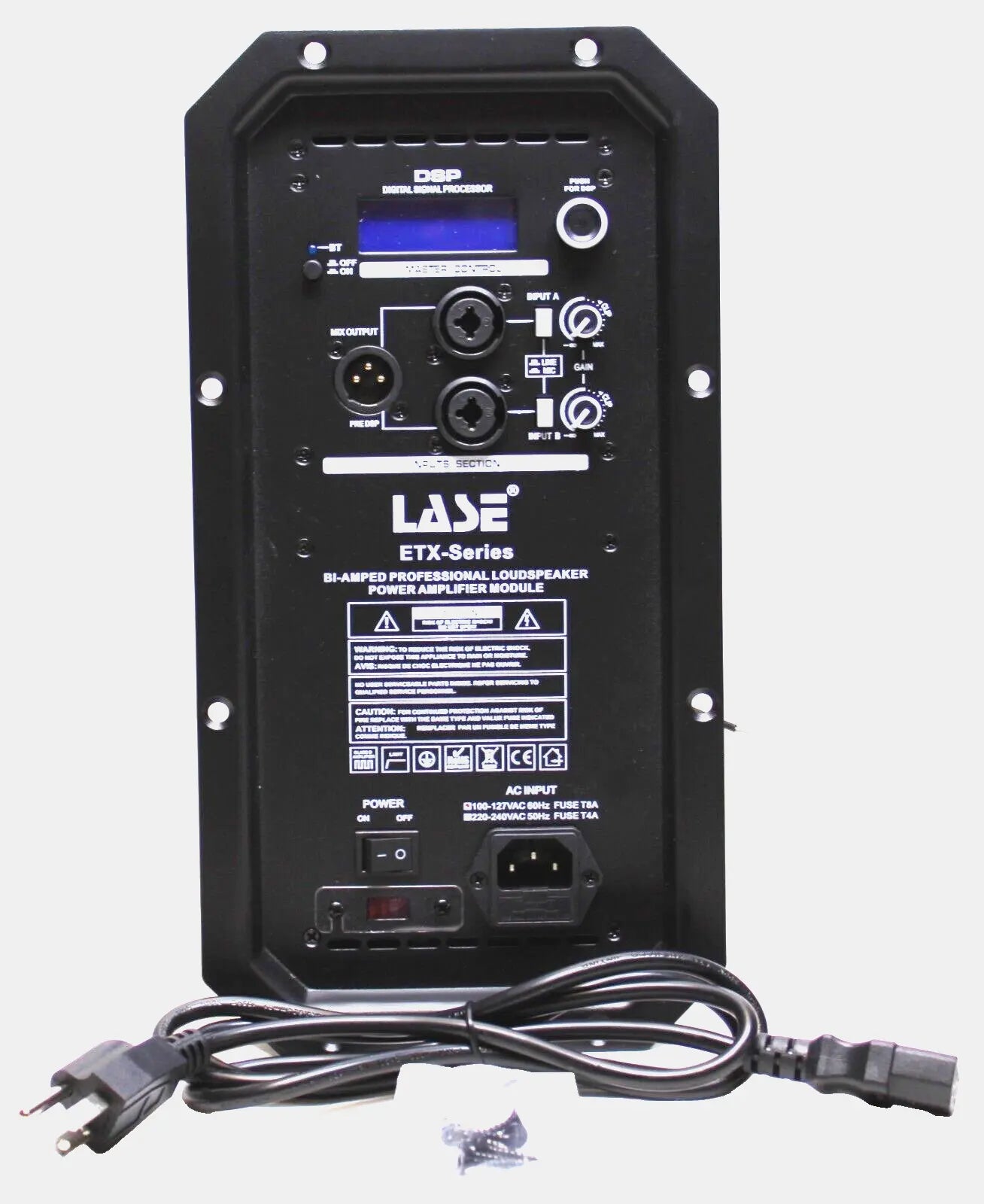

LASE Amplifier Module Electro Voice EV ETX Series 10P / 12P / 15P / 35P Power Speaker


Price:
Sale price$249.00

Description

New ! LASE ETX Series Replacement for Electro Voice EV ETX10P/12P/15P/35P

Bi-Amped Professional Loudspeaker Power-Amplifier Module With DSP Control

(8Ω Load Only)

Very easy to install!

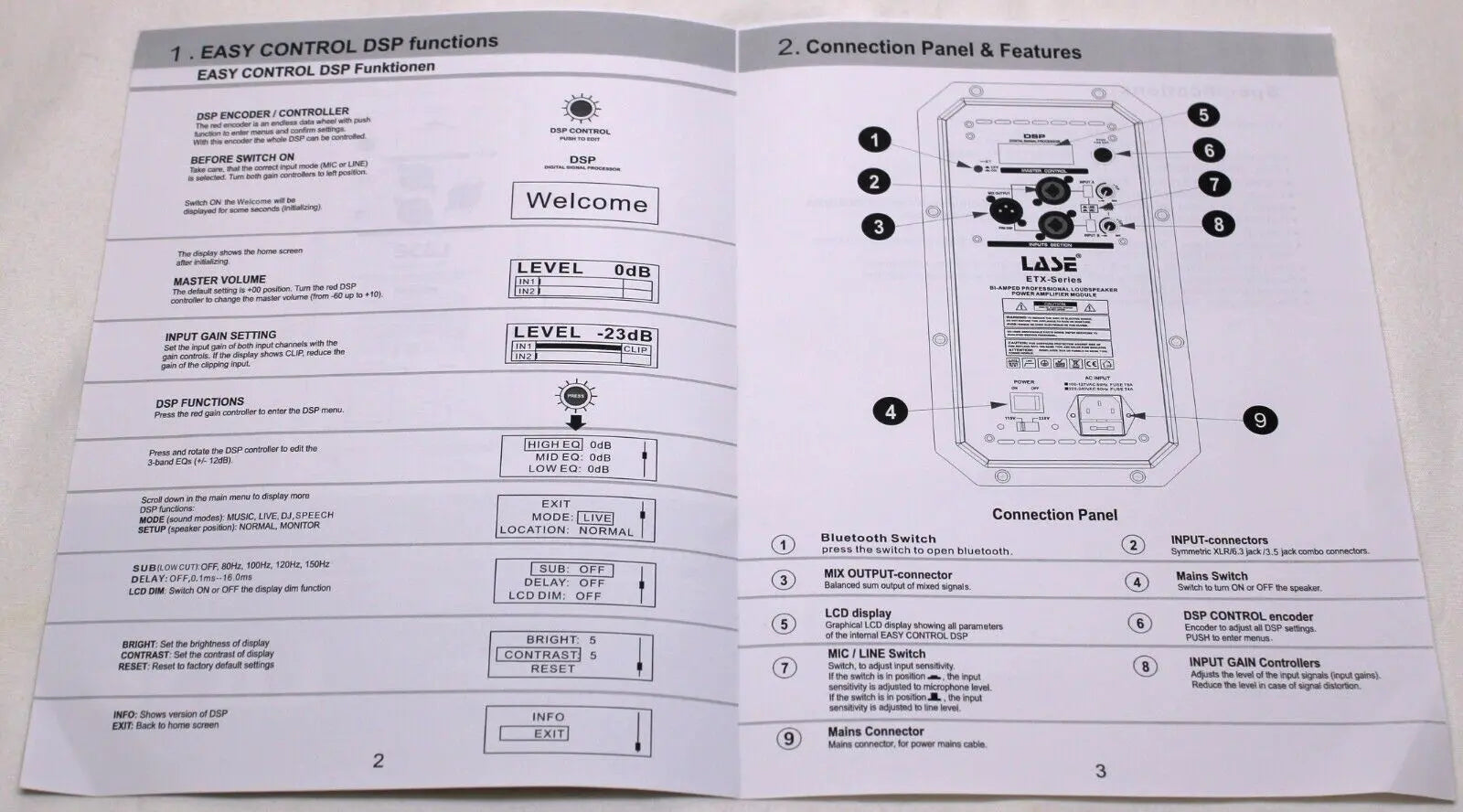

The New LASE ETX 10P/12P/15P/35P for Electro Voice EV Professional Loudspeaker Bi-Amped Power-Amplifier Module a Replacement for EVLX 112;EVLX 115 has a number of unique control features - push button mic/line level inputs, mix level XLR output, DSP (digital signal processor) on the master control with push button control.

Works 110V or 220V

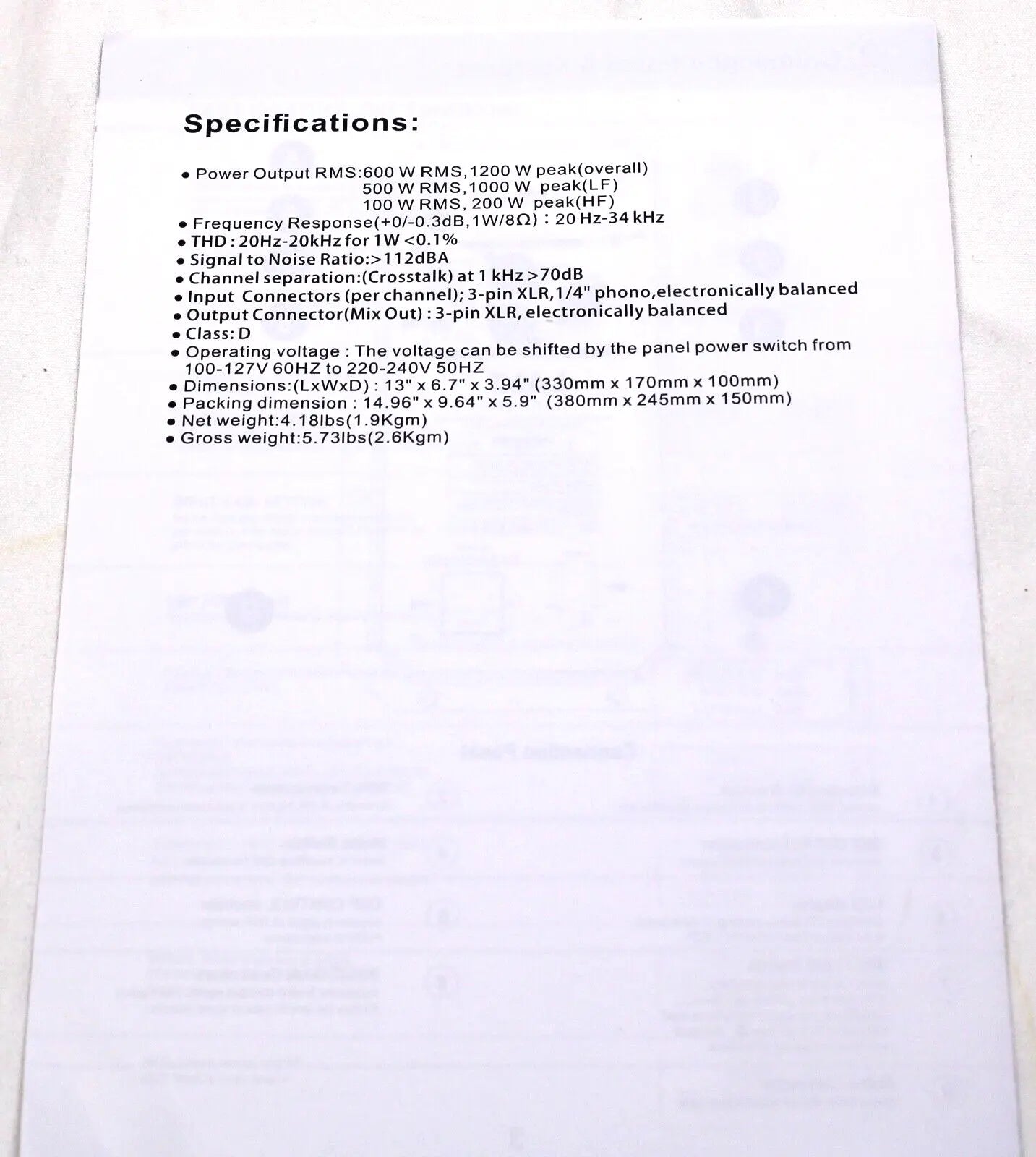

SPECIFICATIONS

  • Power rated @ 8 Ohm Load Only
  • Output Power : 20-20kHz, 1W with 1 khz
  • Power Output RMS : 600 W RMS, 1200 W peak (overall) @ 8Ω.
                                      500 W RMS, 1000 W peak (LF)
                                      100 W RMS, 200 W peak (HF)
  • Frequency Response(+0/-0.3dB,1W/8Ω) : 20 Hz - 34 kHz
  • Crossover Frequency : 1.7 Khz
  • THD : 20 Hz - 20 kHz for 1 W    <0.1%
  • Signal-to-Noise Ratio : >112 dBA
  • Channel separation: (Crosstalk) at 1 kHz    >70 dB
  • Input Connectors (per channel) :    3-pin XLR, 1/4" phono, electronically balanced.
  • Output Connector (Mix Out) : 3-pin XLR, electronically balanced
  • Class : D
  • Operating voltage: 220 V / 110 V nominal   190-240 V / 90-130 V selectable
                                    (Please specify in a message which voltage you prefer)
  • Dimensions: (L×W×D) : 15" x 6.7" x 3.14" (381mm x 170mm x 80mm).
  • Packing dimension: 16.92" x 9.64" x 4.72" (430mm x 245mm x 120mm)
  • Net weight: 3.3lbs (1.5Kgm)
  • Gross weight :4.19lbs(1.9Kgm)

FREE SHIPPING ONLY In Lower 48 States.
