Description

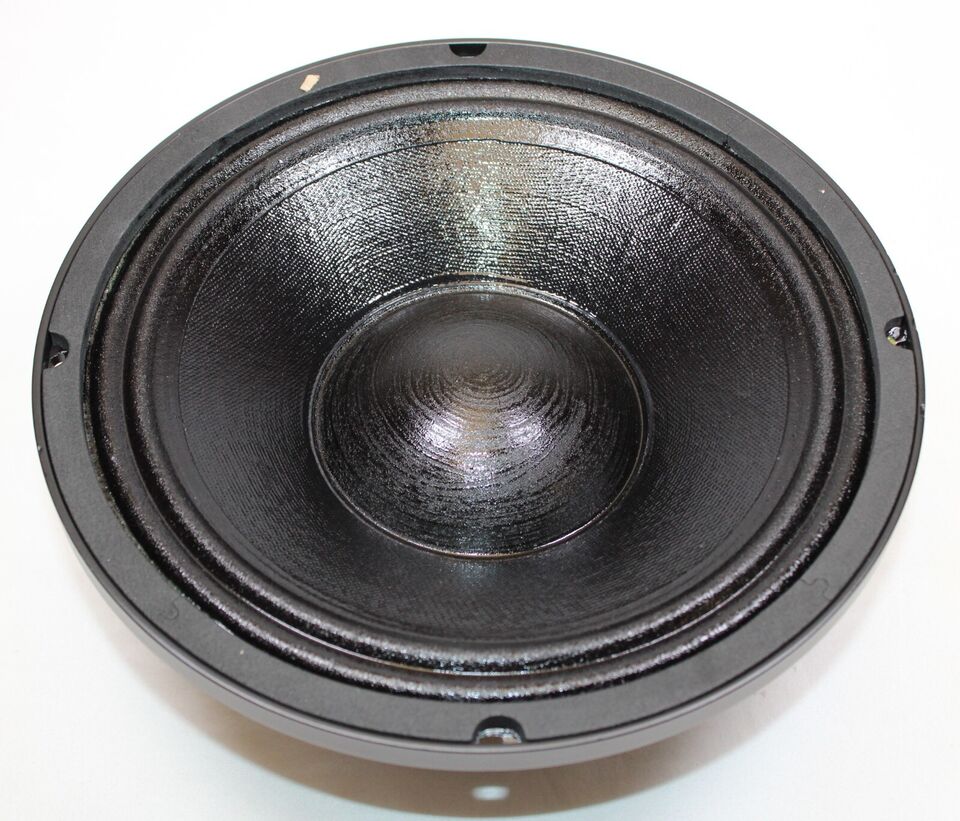

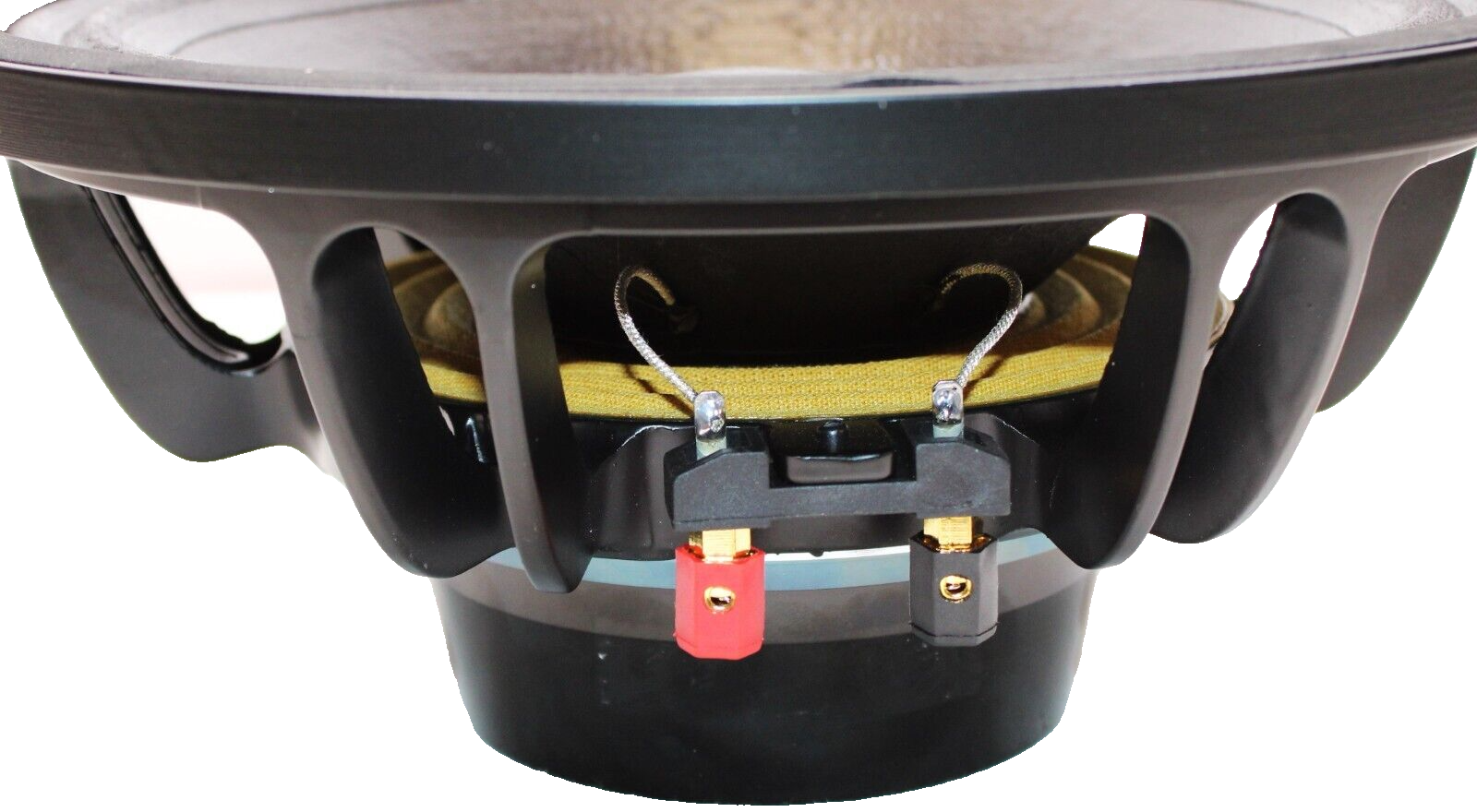

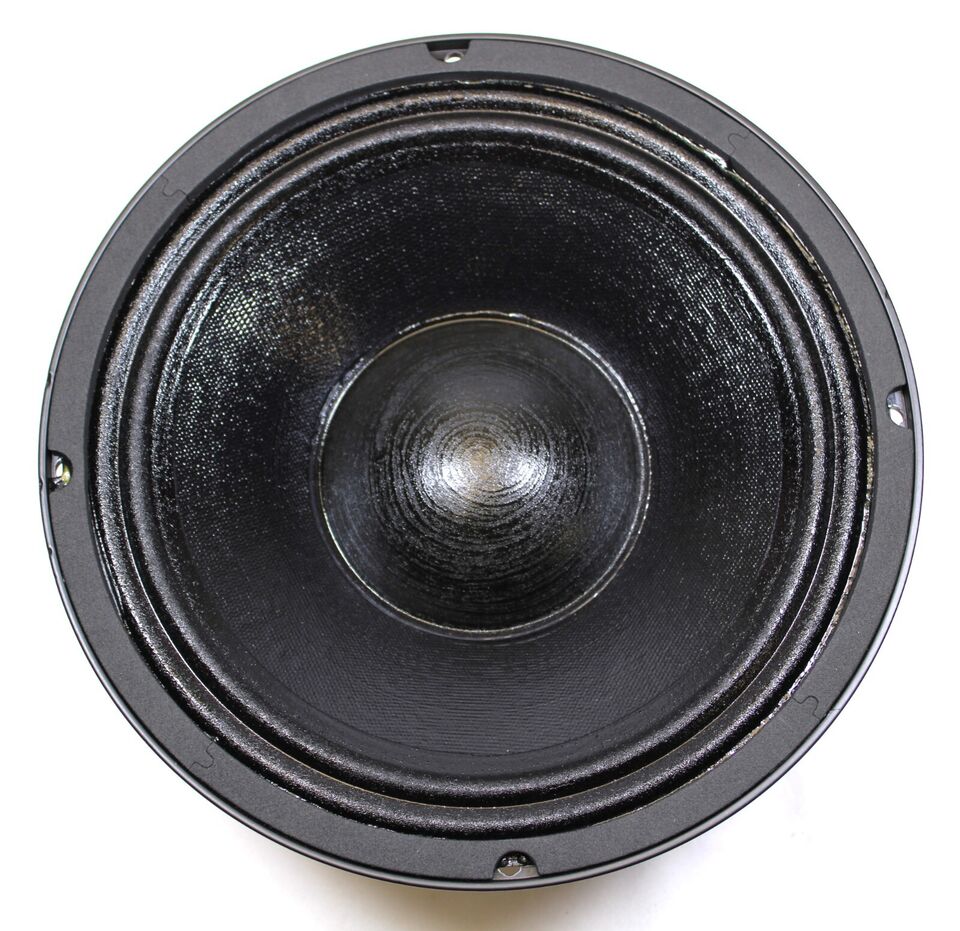

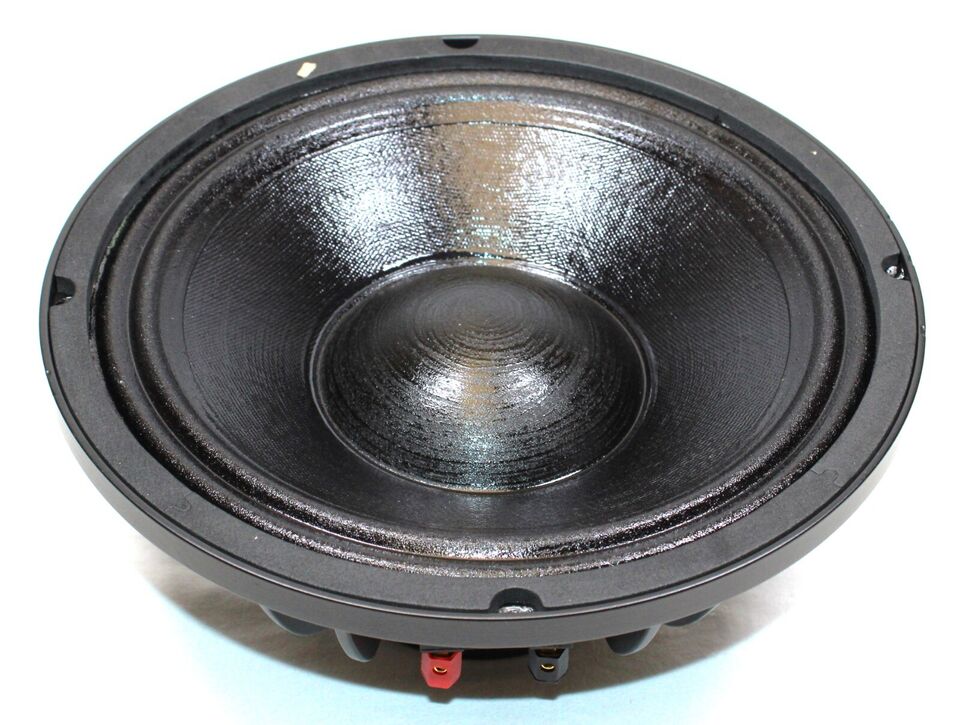

The LASE NEO 10-600MR 10" Mid-bass Speaker w/ 3" Voice Coil
The LASE NEO 10 - 600MR features extended linearity and high efficiency. More over, the radiator features a heat dissipation system that ensures the unit stays cool and will not overheat in high-powered settings. The aluminum voice coil provides a properly aligned Q factor and high sensitivity. A specially designed shallow triple-roll surround guarantees low midrange distortion, and the fiberglass former voice coil, polycotton suspensions, and treated cone contribute to the LASE NEO 10-600MR's high power handling. When mounted in compact size bass reflex enclosures, the combination of a short voice coil, very low mass, and suspension control makes the LASE NEO 10-600MR an excellent choice for high power, 2-way satellite applications. The LASE NEO 10-600MR is a popular replacement speaker for EAW, Yorkville, Sonic, Martin Audio, and other subwoofer speaker systems.
FEATURES
- Professional/Concert Touring Midbass Driver.
- 3" Edgewound Aluminum Voice Coil on a fiberglass former.
- 600 watt continuous Program Power Handling.
- High Sensitivity and Low Distortion.
- Shaped shallow triple-roll damped surround.
- Primarily designed to be horn loaded in medium and long throw system.
- Inverted dust cap minimizes cone distortion, improves coupling to a phase plug.
SPECIFICATIONS
- Nominal Diameter: 10"
- Power Handling (rms): 300 watts
- Power Handling (max): 600 watts
- Impedance: 8 ohm
- Frequency Response: 60Hz to 3000 Hz
- Sensitivity: 96db
- Voice Coil Diameter: 3"
- Weight: 7.4 lbs / 3.35 kg
