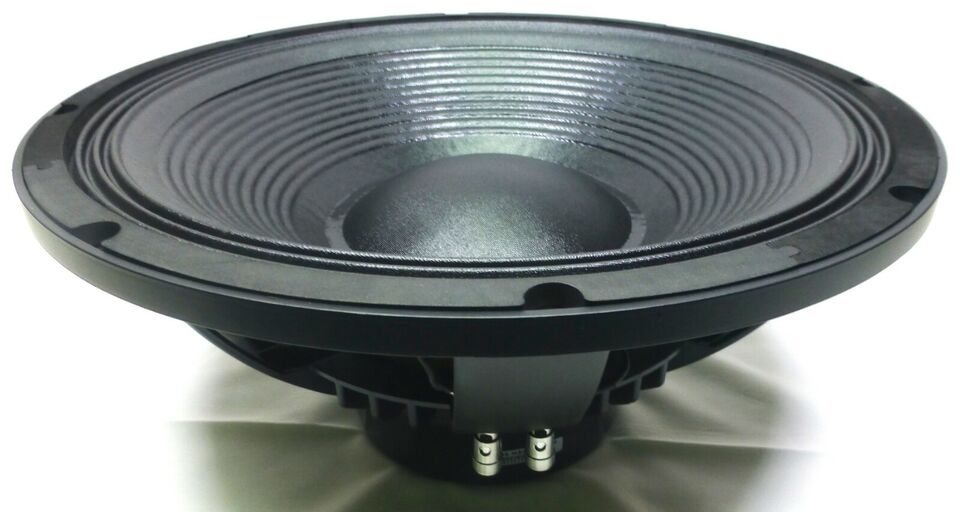

LASE NEO 15-2400 15" Low Frequency Neodymium Speaker


Price:
Sale price$199.99

Description

The LASE NEO 15-2400 15" Low Frequency Neodymium Speaker 4" Voice Coil

The LASE NEO 15-2400 features extended linearity and high efficiency. Moreover, the radiator features a heat dissipation system that ensures the unit stays cool and will not overheat in high-powered settings. The aluminum voice coil provides a properly aligned Q factor and high sensitivity. A specially designed shallow triple-roll surround guarantees low midrange distortion, and the fiberglass former voice coil, polycotton suspensions, and treated cone contribute to the LASE NEO 15-2400's high power handling. When mounted in compact size bass reflex enclosures, the combination of a short voice coil, very low mass, and suspension control makes the LASE NEO 15-2400 an excellent choice for high power, 2-way satellite applications. The LASE NEO 15-2400 is a popular replacement speaker for EAW, Yorkville, Sonic, Martin Audio, and other subwoofer speaker systems.

FEATURES

  • Professional/ Concert Touring Bass Driver.
  • 4" Edgewound Aluminum voice coil on a fiber glass Former
  • 1200 watt continuous program power handling
  • High Sensitivity and low distortion
  • Shaped shallow triple-roll damped surround.
  • Primarily designed to be horn loaded or and long throw system.
  • Inverted dust cap minimizes cone distortion, improves coupling to a phase plug.

SPECIFICATIONS

  • Nominal Diameter: 15"(381mm)
  • Power Handling: 600 W (rms)
  • Power Handling: 1200 W (max).
  • Impedance: 8 ohm.
  • Frequency Response: 48 hz - 2,000 hz .
  • Sensitivity: 96 db 2.83/1m
  • Voice Coil Diameter: 4"(100mm)
  • Magnet weight: 1.25T
  • Weight: 18.51 lbs (8.4 kgm)
  • Shipping Weight: 20.28 lbs (9.2Kgm)

THIELE & SMALL PARAMETERS

  • FS: 48 Hz.
  • RE: 6.8 Ω
  • Qms: 3.5
  • Qes: 0.19
  • Qts: 0.18
  • Mms: 170.7G
  • Cms: 0.78mm/N
  • BL: 34.9 T-M
  • Xmax: 9mm
  • SD: 8665 cm
  • Vas: 198 L
