Description

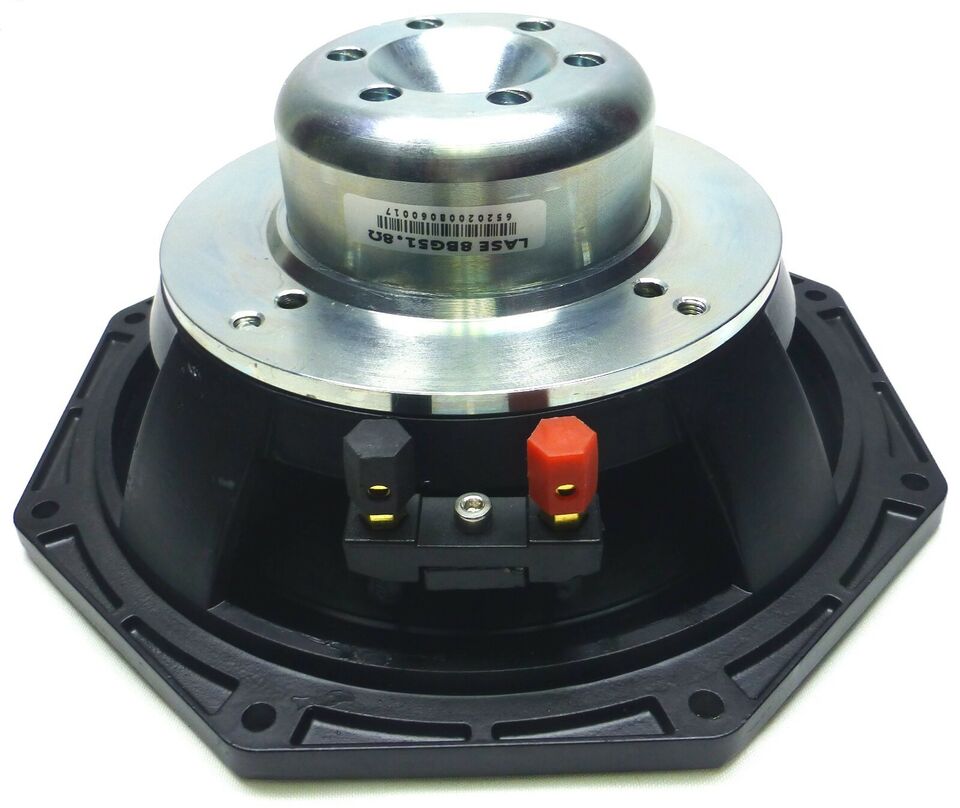

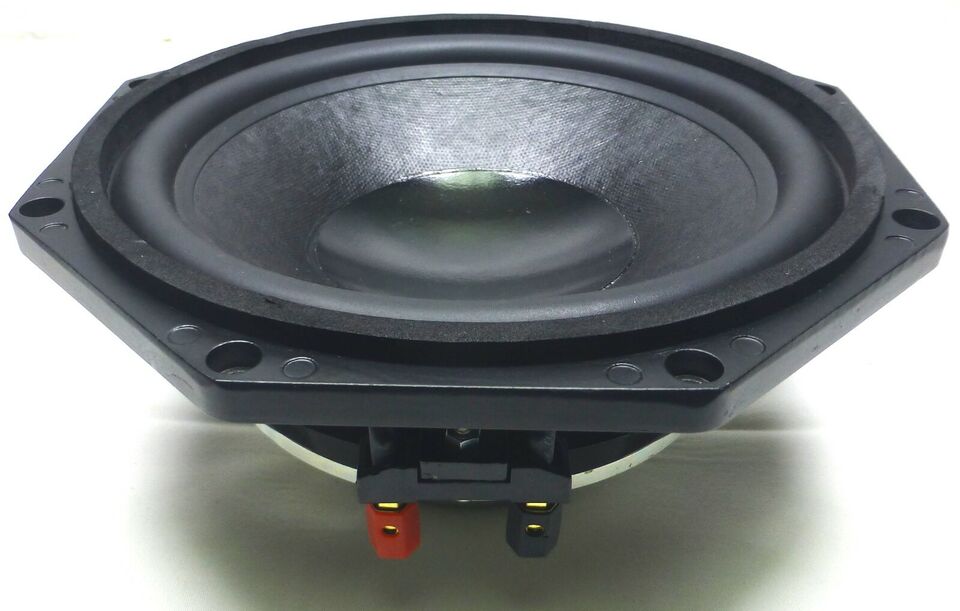

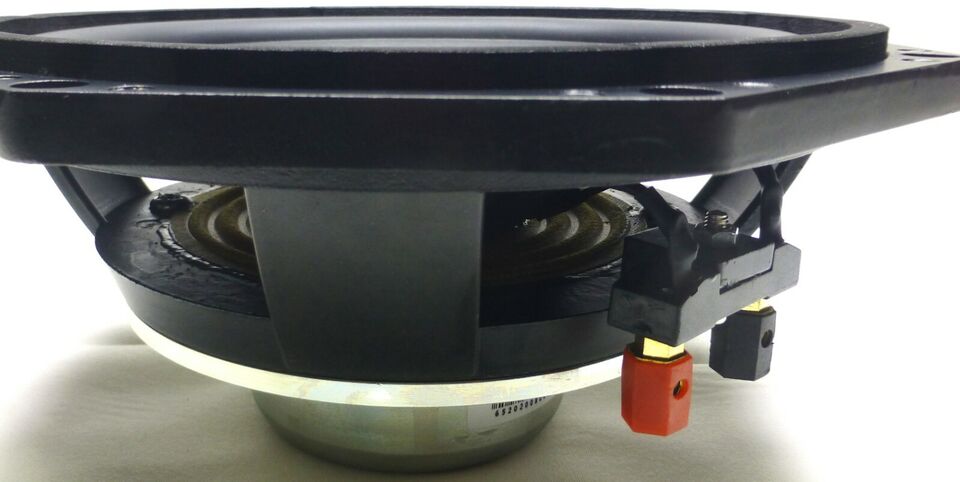

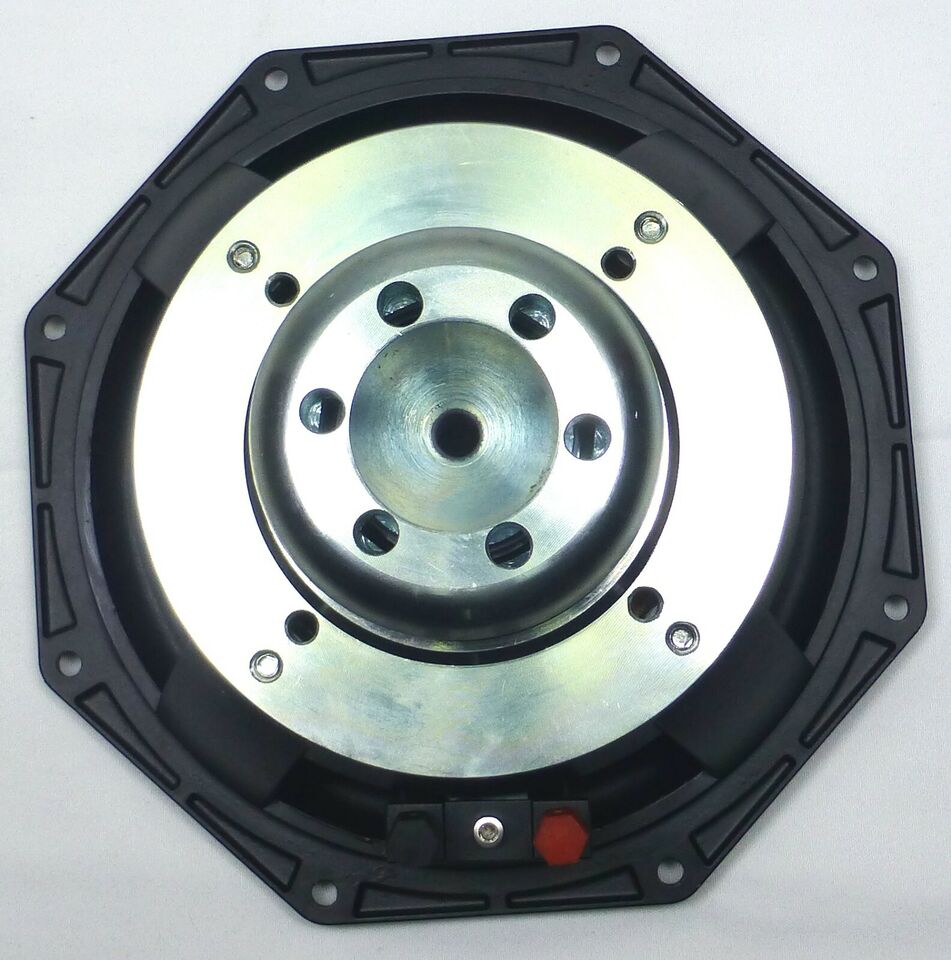

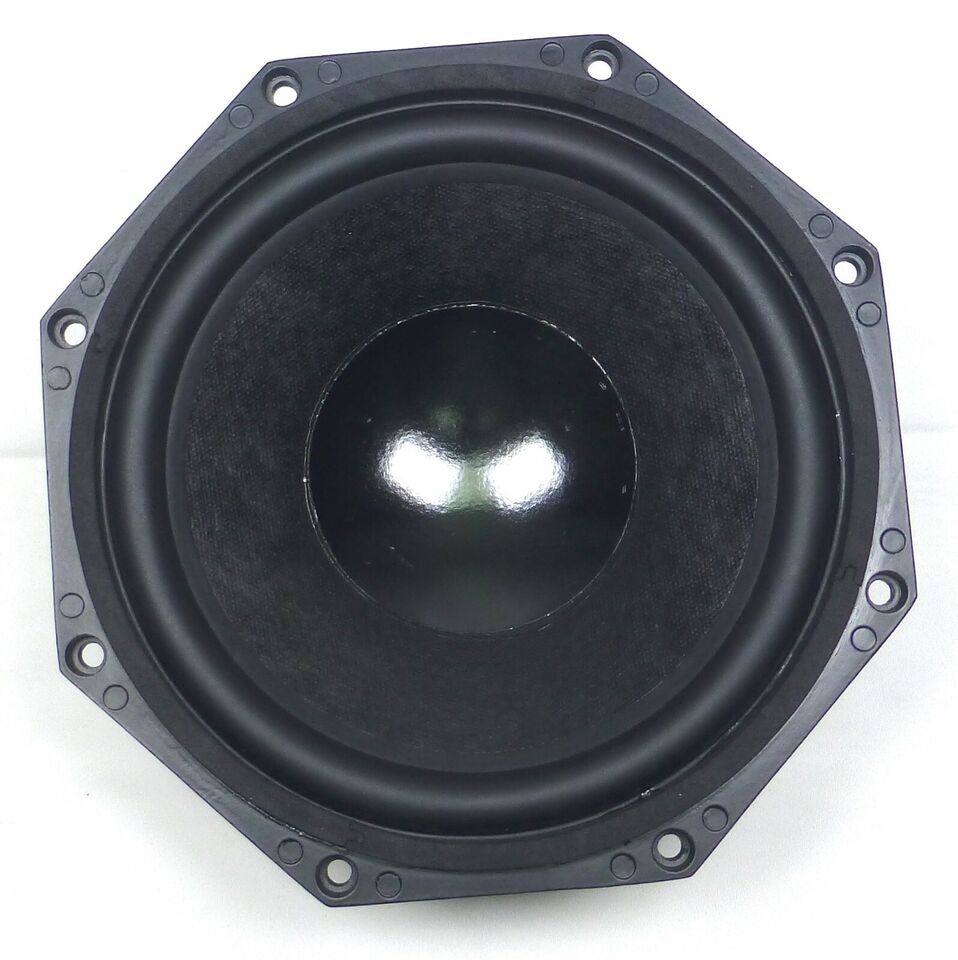

The LASE NEO 8BG51 Mid-Range 8" Neodymium Speaker for line array & auto audio installations
The LASE NEO 8BG51 8" cast frame neodymium driver features a long throw 2" voice coil and rubber half-roll cone surround, which enable it to produce serious amounts of bass in compact pro loudspeaker enclosures.These are very high quality, lightweight speakers, still they have a high xmax and can produce deep bass at lower volumes.
FEATURES
- Rubber half-roll cone surround
- Neodymium magnet assembly
- Ventilated voice coil gap for reduced power compression
- 2" copper voice coil on fiberglass former
- Copper cap on pole piece reduces inductance and extends HF
- 500 watts continuous program power capacity
- 50 – 4,000 Hz response
SPECIFICATIONS
- Size: 8"(250mm)
- Power Rating (RMS): 250 W
- Power Rating (Peak): 500W
- Impedance: 8 ohm
- Sensitivity: 92db @(1w/1m)
- Frequency Response: 50hz - 4000 hz
- Voice Coil Diameter: 2" (50mm)
- Magnet Diameter: 3.34" (85 mm)
- Winding Material: Copper
- Magnet size: 6.69"x 3.35"x 0.78" (170mm x 86mm x 20mm)
- Net Weight: 4.85 lbs
- Shipping weight: 7 lbs
THIELE & SMALL PARAMETERS
- FS: 52 HZ
- Re: 5.1ohm
- Qms: 12.3
- Qes: 0.42
- Qts: 0.4
- Mms: 35 G
- BL: 11.8 T-M
- Sd: 220cm²
- Xmax: 6.5mm
MOUNTING INFORMATION
- Overall Outside Diameter: 8.8"
- Baffle Cutout Diameter: 7.4"
- Depth: 3.5"
- Bolt Circle Diameter: 8.3"
- # Mounting Holes: 8
- Net Weigh 1.4 kg/3.08 lbs
- Shipping Weight 8 kg/17.63 lbs
