Description

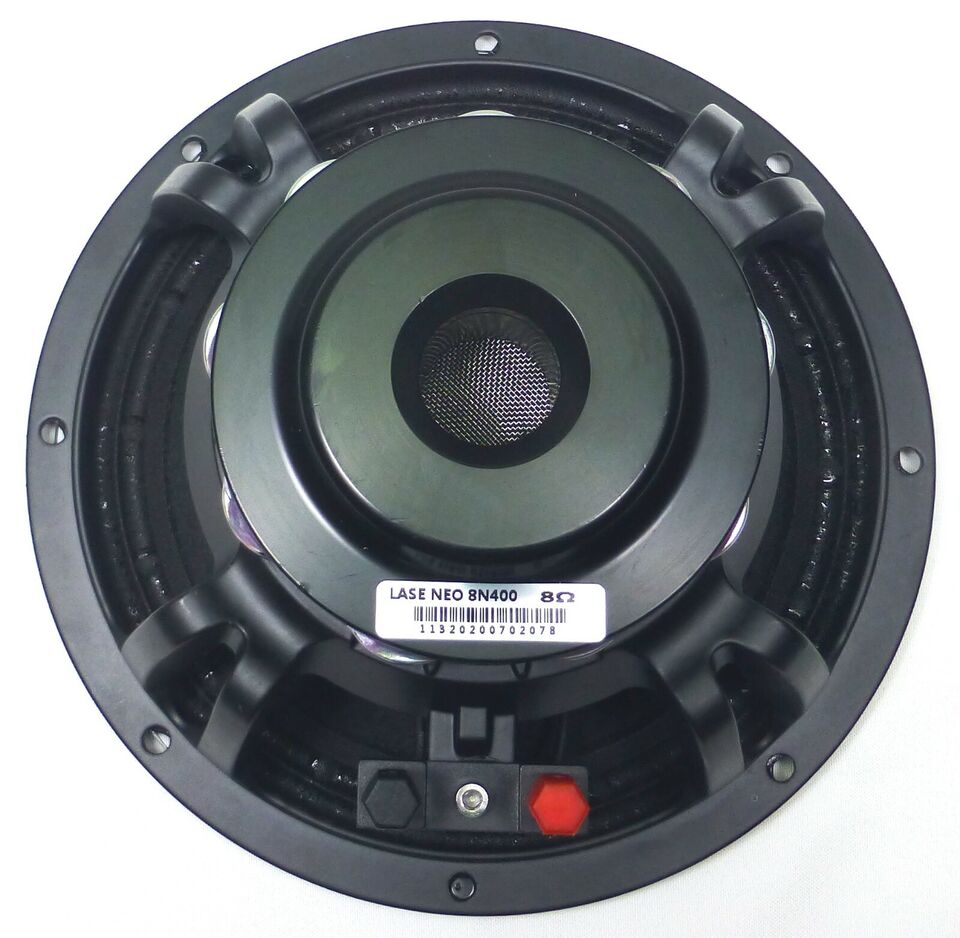

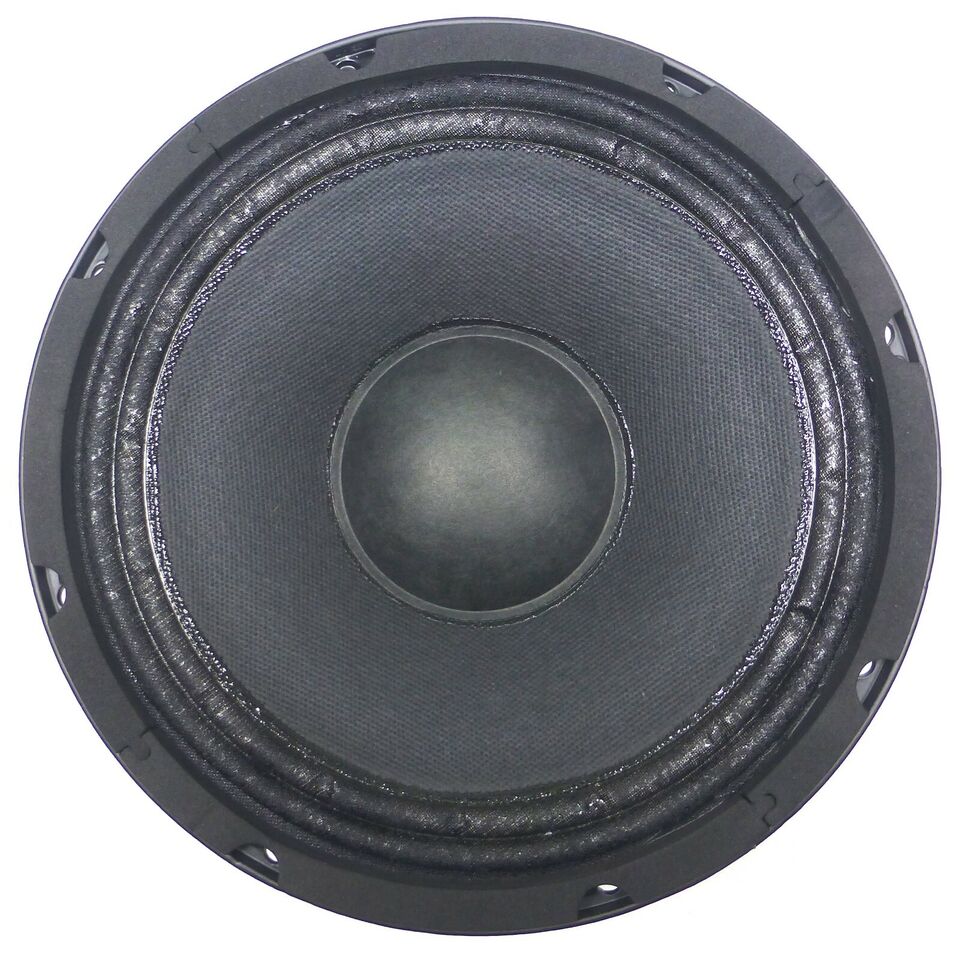

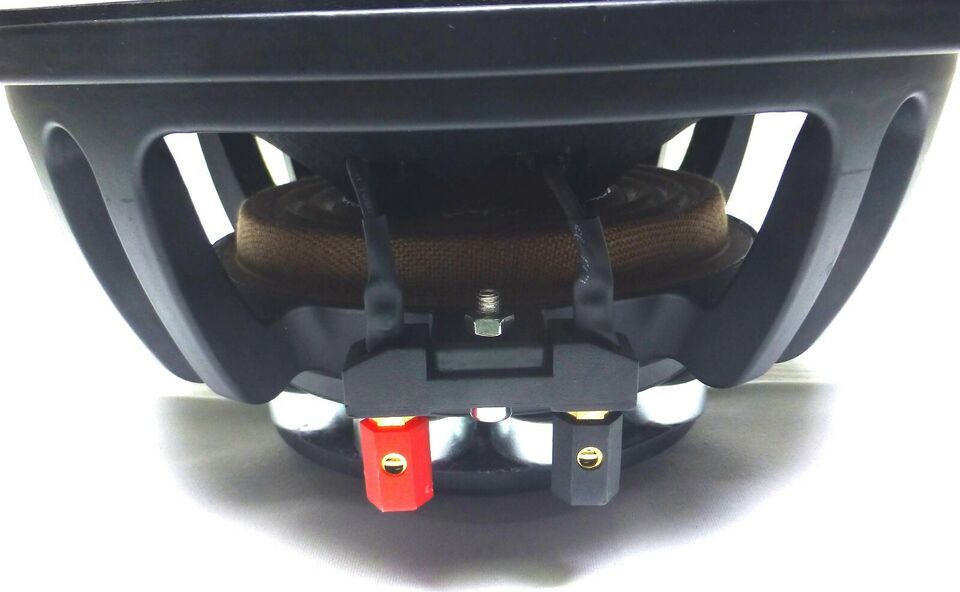

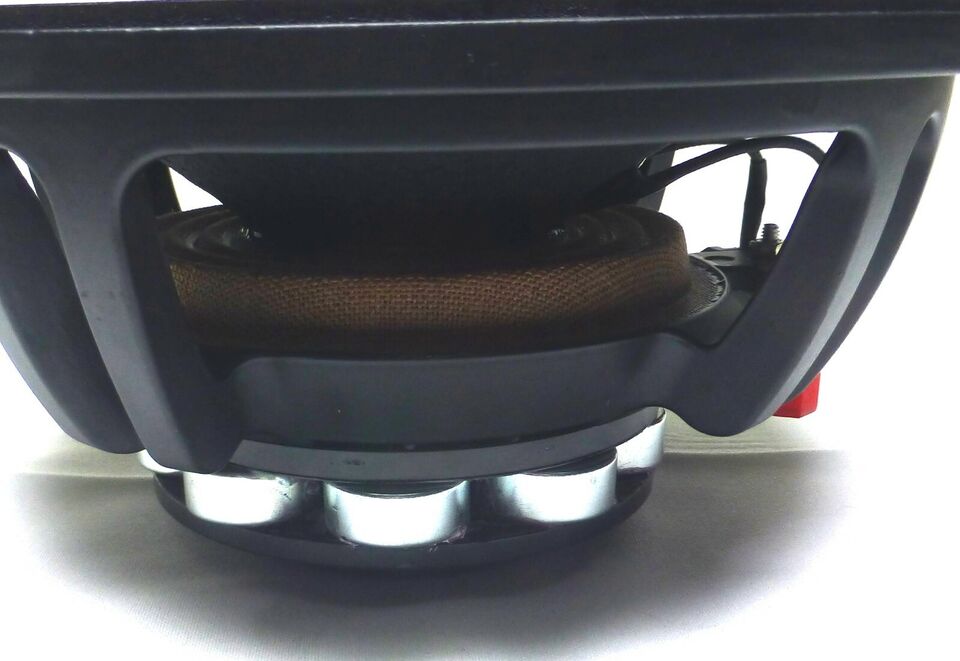

The LASE NEO 8N400 8" Round Mid-Range Speaker @ 8 Ohm
SPECIFICATIONS
- Size : 8"(250mm)
- Power Rating (RMS) : 200 W
- Power Rating (Peak) : 400W
- Impedance : 8 ohm.
- Sensitivity : 96db @(1w/1m)
- Frequency Response : 60hz - 3000 hz
- Voice Coil Diameter : 2" (50mm).
- Magnet Diameter : 3.34"(85 mm).
- Winding Material : Copper.
- Magnet size : 6.69"x 3.35"x 0.78" (170mm x 86mm x 20mm)
THIELE & SMALL PARAMETERS
- FS: 60 HZ
- Re: 5.8ohm
- Qms: 4.28
- Qes: 0.31
- Qts: 0.30
- Mms: 14.9 G
- BL: 10.0 T-M
- Sd: 210cm²
- Vas: 33.0 L
MOUNTING & PACKING INFORMATION
- Overall Diameter: 205mm/ 8.2 inch
- Bolt Circle Diameter: 197 mm/7.88 inch
- Baffle Cutout Diameter: 186mm/7.44 inch
- N.Of Mounting Holes: 8 pcs
- Mounting Holes Diameter: 6.5 mm/0.255 inch
- Depth: 90mm/3.6 inch
- Net Weigh 1.4 kg/3.08 lbs
- Shipping Weight 8 kg/17.63 lbs
