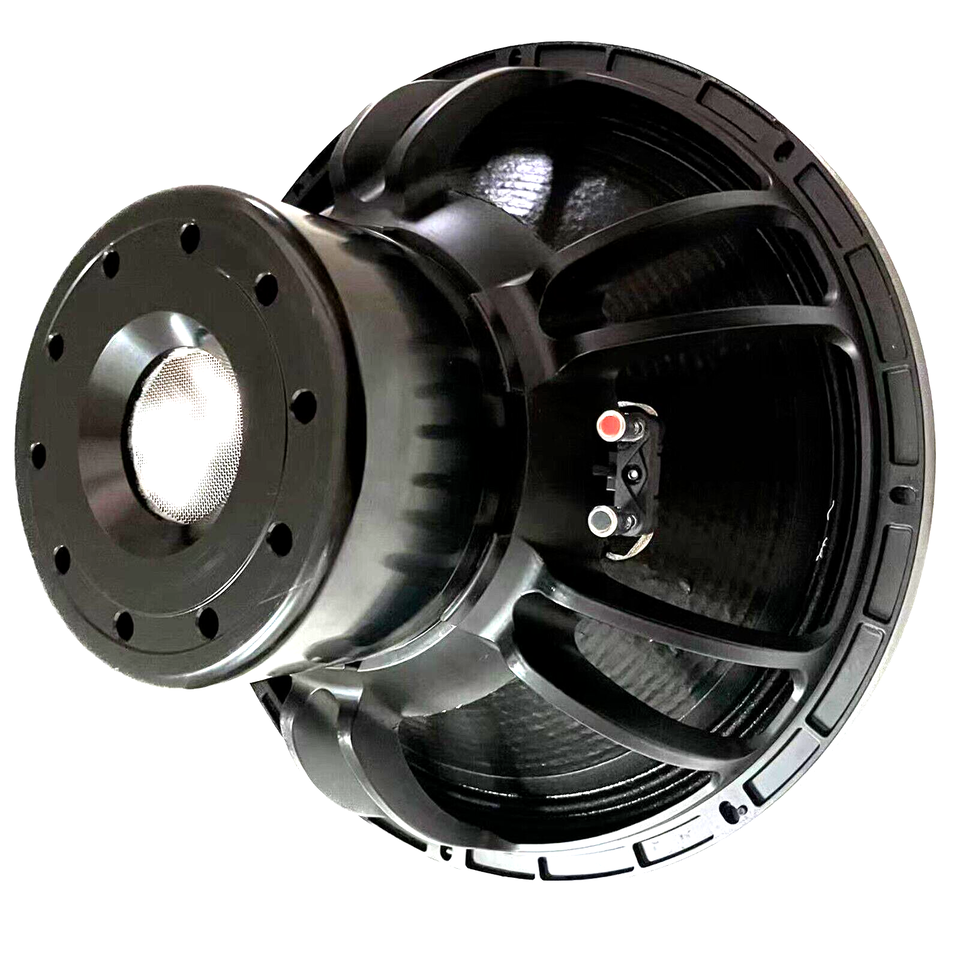

LASE NEO18-6000 18" Neodymium Bass Woofer


Price:
Sale price$499.00

Description

The LASE NEO18-6000 Neodymium 18" Bass Speaker with 6" voice coil

The LASE NEO18-6000 features high efficiency and extended linearity. The radiator ensures efficient heat dissipation, allowing the user to power it to its max potential without fear of overheating. The aluminum voice coil provides a properly aligned Q factor and high sensitivity. Our specially designed shallow triple-roll surround guarantees low midrange distortion, and the fiberglass former voice coil, polycotton suspensions, and treated cone contribute to the LASE NEO18-6000's high power handling capability. When mounted in compact size bass reflex enclosures, the combination of a short voice coil, low mass, and suspension control makes the LASE NEO18-6000 an excellent choice for high power, 2-way satellite applications. The LASE NEO18-6000 is a popular replacement speaker for EAW, Yorkville, Sonic, Martin Audio, and other subwoofer speaker systems.

FEATURES

  • Professional/Concert Touring Midbass Driver
  • 6" Edgewound Aluminum Voice Coil on a fiberglass former
  • 6000 watt continuous Program Power Handling
  • High Sensitivity and Low Distortion
  • Shaped shallow triple-roll damped surround

SPECIFICATIONS

  • Nominal Diameter: 18"
  • Power Handling: 3000 W (rms)
  • Power Handling: 6000 W (max).
  • Impedance: 8 Ω.
  • Minimum Impedance: 6.5 Ω
  • Frequency Response :30Hz - 1.2Khz
  • Sensitivity: 98 db1w/1m
  • Xmax: ±16.5mm

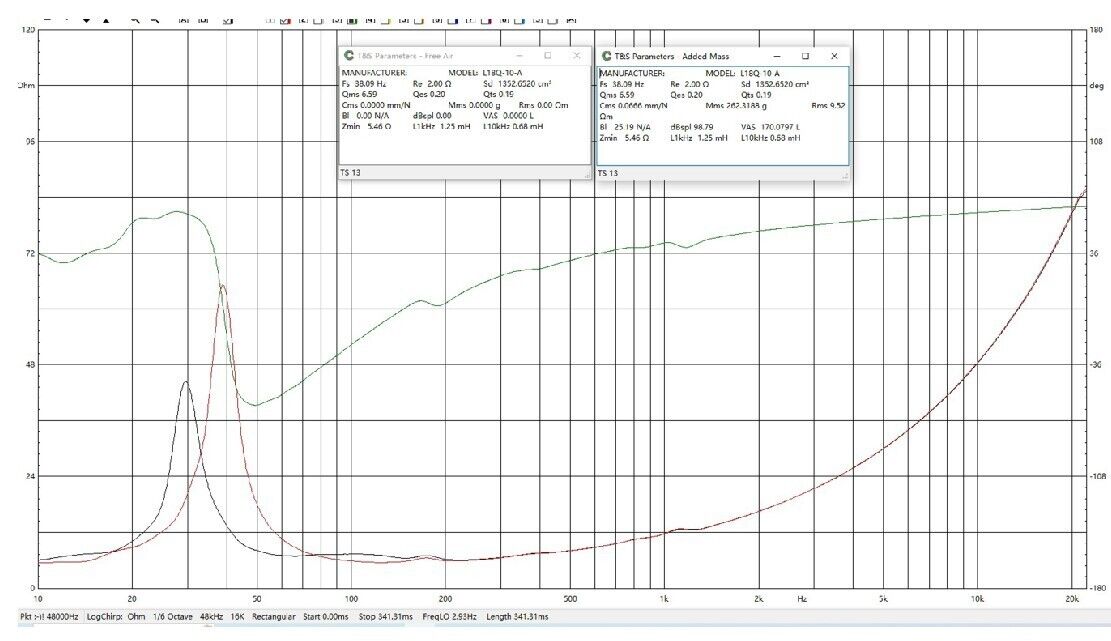

  • FS: 38 Hz
  • RE: 1.8
  • MMS: 262G
  • BL: 25T-M
  • SD: 1352 cm2
  • VAS: 170 L
  • Voice Coil Diameter: 6" (152mm)
  • Voice Coil Former: Fiberglass
  • Voice Coil Wire: 6" diameter Copper Clad Aluminum Wire voice coil.
  • Overall Diameter: 18.19" (462mm)
  • Bolt Circle Diameter: 17.32" (440mm)
  • Speaker Cutout Diameter : 16.61" (442mm)
  • Weight: 42.5 lbs (19.3 kgm)
  • Shipping Weight: 49.6 lbs (22.5 kgm)
  • Shipping Dimensions: L 20" x W 20" x H 12.4" (510mm x 510mm x 315mm)
