Description

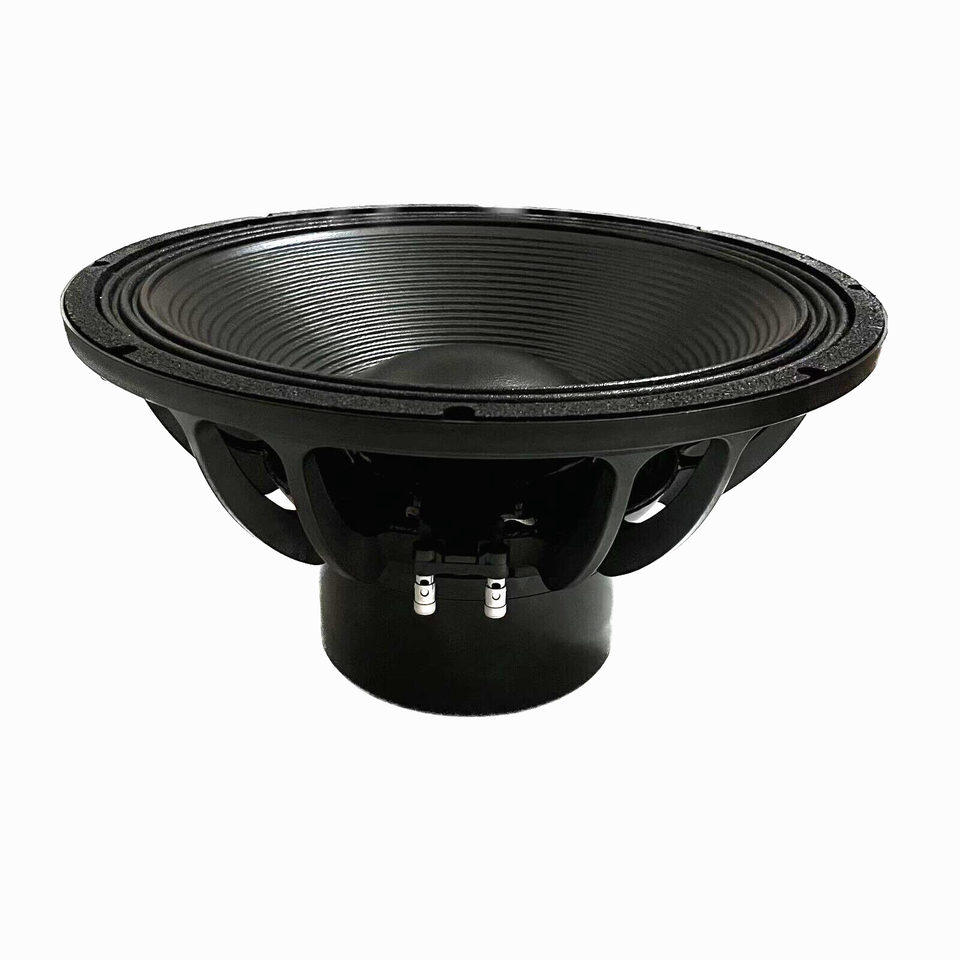

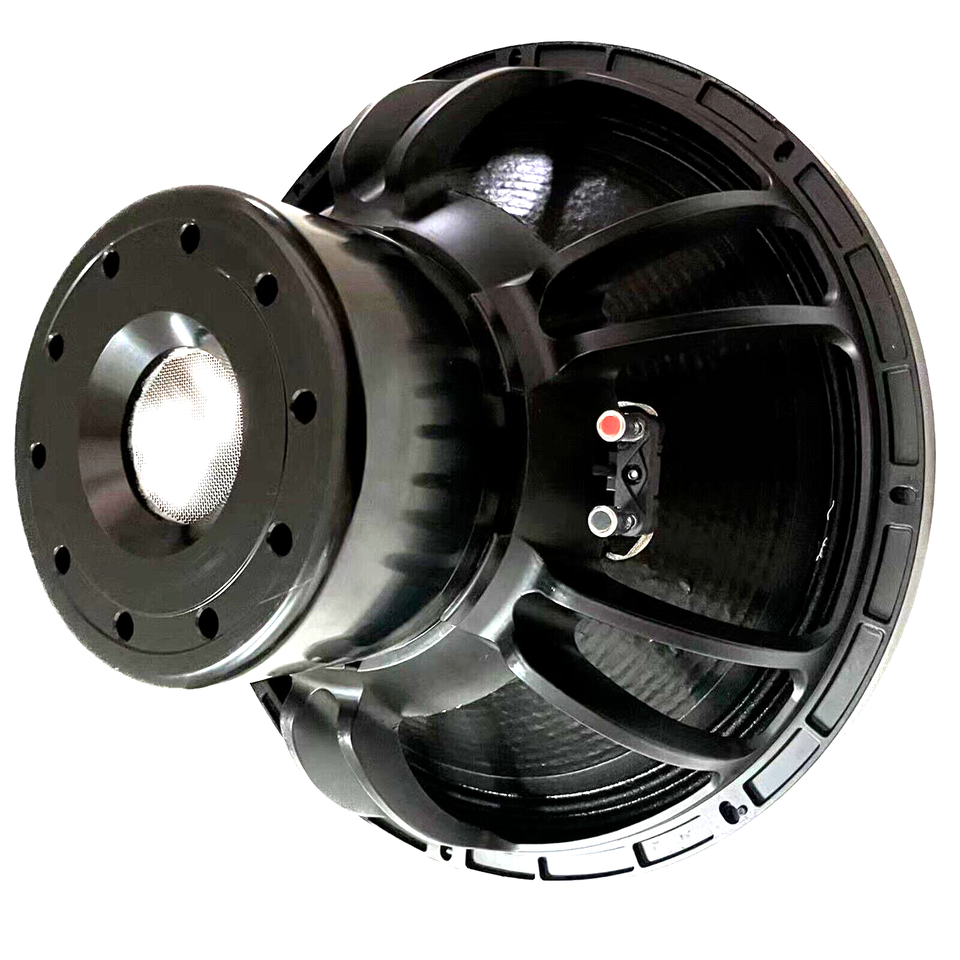

The LASE NEO18-6000 is an 18" neodymium low frequency speaker with a 6" voice coil at 4 ohms. It features extended linearity and high efficiency. Moreover, the radiator features a heat dissipation system that ensures the unit stays cool and will not overheat in high-powered settings. The aluminum voice coil provides a properly aligned Q factor and high sensitivity. A specially designed shallow triple-roll surround guarantees low midrange distortion, and the fiberglass former voice coil, polycotton suspensions, and treated cone contribute to the LASE NEO18-6000's high power handling. When mounted in compact size bass reflex enclosures, the combination of a short voice coil, very low mass, and suspension control makes the LASE NEO18-6000 an excellent choice for high power, 2-way satellite applications. The LASE NEO18-6000 is a popular replacement speaker for EAW, Yorkville, Sonic, Martin Audio, and other subwoofer speaker systems.
FEATURES
- Professional/ Concert Touring Bass Driver.
- 6" Edgewound Aluminum voice coil on a fiber glass Former
- 6000 Watt Program power handling
- High Sensitivity and low distortion
- Shaped shallow triple-roll damped surround
SPECIFICATIONS
- Nominal Diameter: 18"
- Power Handling: 3000 W (rms)
- Power Handling: 6000 W (max)
- Impedance: 4 ohm
- Minimum Impedance: 3.0 Ω
- Frequency Response: 30Hz - 1.2Khz
- Sensitivity: 98 db1w/1m
- Xmax: ±16.5mm

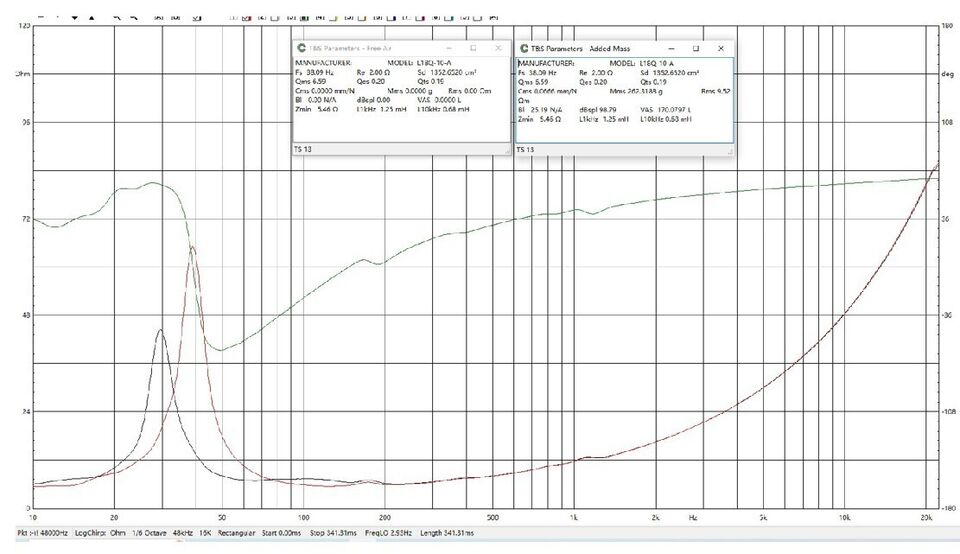

- FS: 38 Hz
- RE: 1.8
- MMS: 262G
- BL: 25T-M
- SD: 1352 cm2
- VAS: 170 L
- Voice Coil Diameter: 6" (152mm)
- Voice Coil Former: Fiberglass
- Voice Coil Wire: 6 inch diameter copper clad aluminum wire
- Overall Diameter: 18.19" (462mm)
- Bolt Circle Diameter: 17.32" (440mm)
- Speaker Cutout Diameter: 16.61" (442mm)
- Weight: 42.5 lbs (19.3 kgm)
- Shipping Weight: 49.6 lbs (22.5 kgm)
- Shipping Dimensions: L 20" x W 20" x H 12.4" (510mm x 510mm x 315mm)
