Description

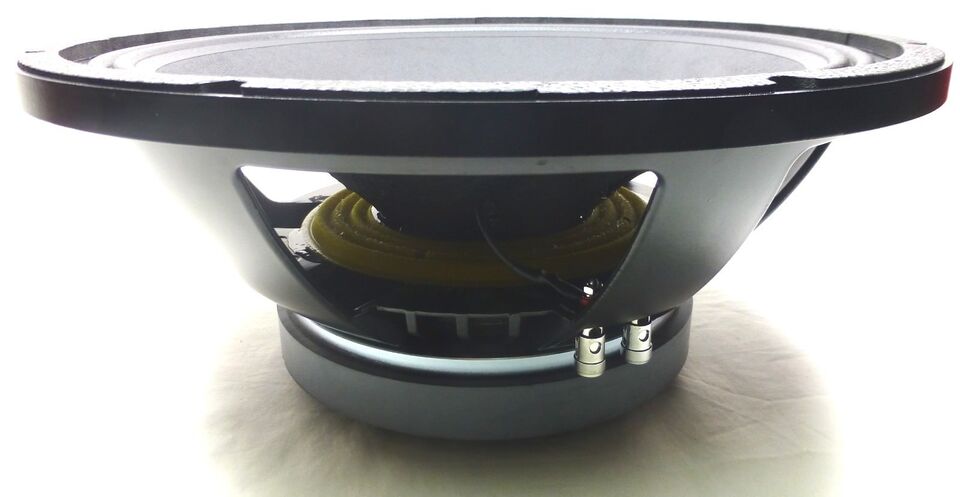

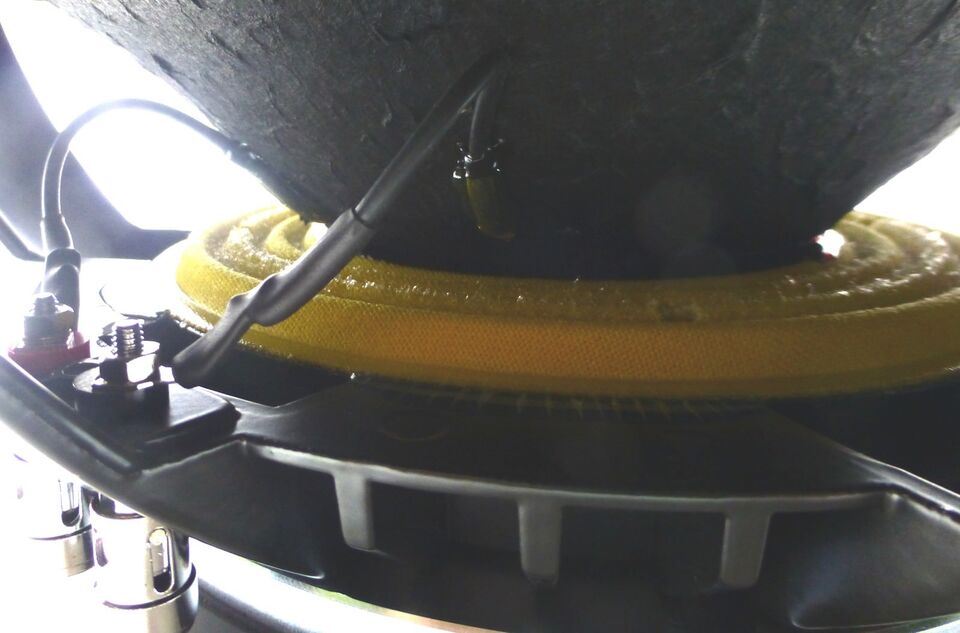

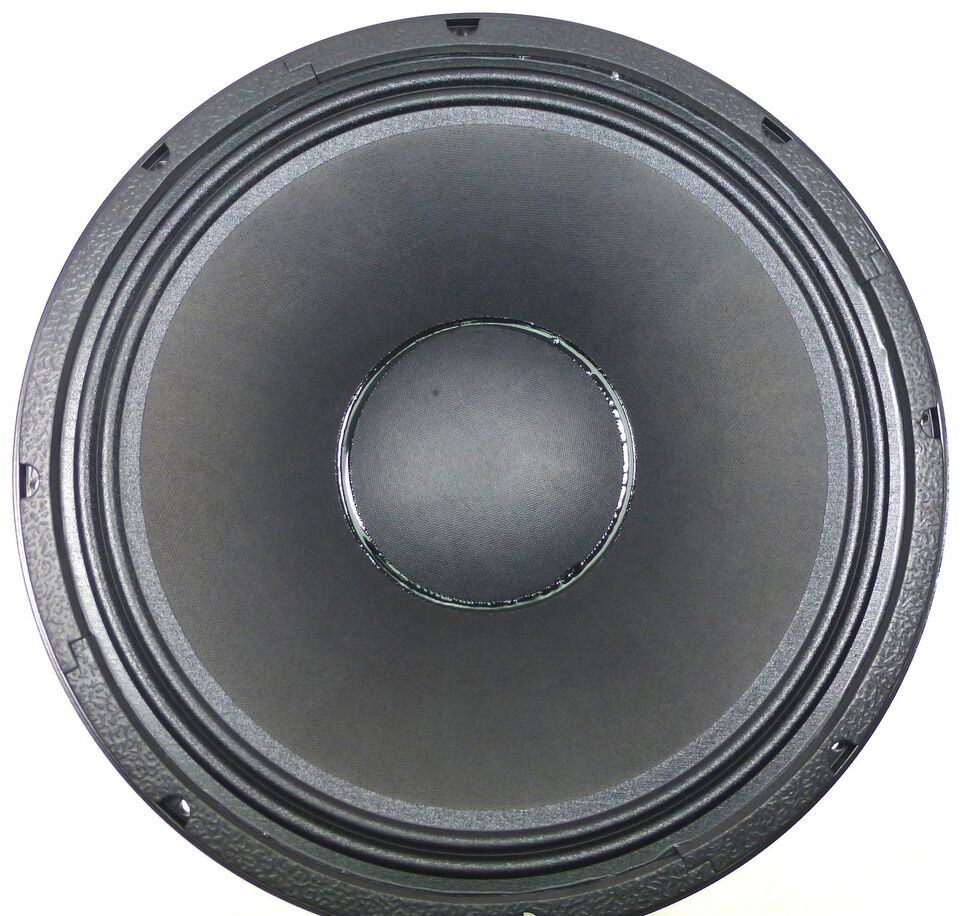

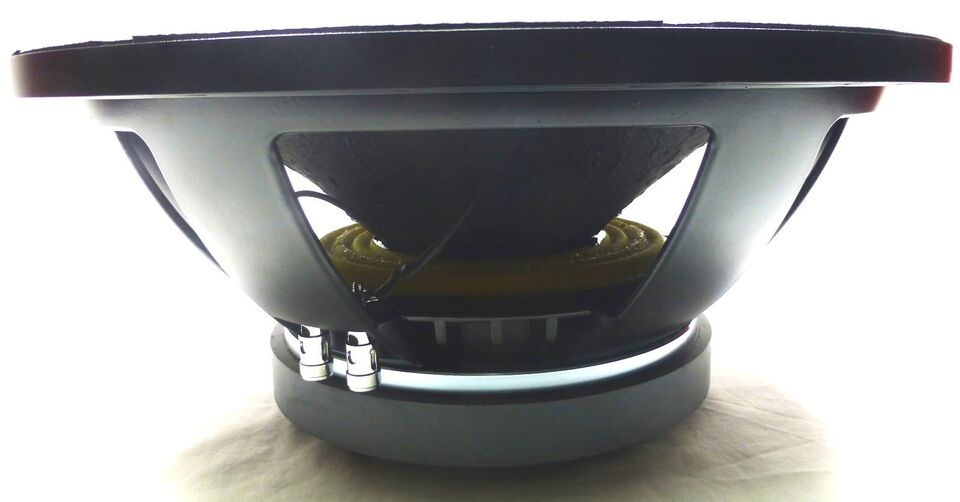

The LASE 15" Replacement Woofer Speaker for Yorkville 7524
Compatible with EF508, EF500P, 15MB650Y, TX4 speakers
FEATURES
- 1,000 watts (AES) power handling capacity
- 100 mm (4 in) copper voice coil
- 35 – 1500 Hz response
- 96 dB sensitivity
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
- Dual demodulation rings in the magnet system
- Very low distortion—nothing but deep, clean bass
SPECIFICATIONS
- Nominal diameter: 15" (380 mm)
- Nominal impedance: 8 Ω
- Minimum impedance: 6.2 Ω
- Nominal power handling: 1000 W (AES)
- Continuous power handling: 2000 W
- Sensitivity (1W/1m): 96.0 dB
- Frequency range: 35 – 1500 Hz
- Voice coil diameter: 100 mm (4.0 in)
- Winding material: Copper
- Former material: Glass Fibre
- Winding depth: 25 mm (1.0 in)
- Magnetic gap depth: 12 mm (0.5 in)
- Shipping Weight: 30.6 lbs (13.9kg)
