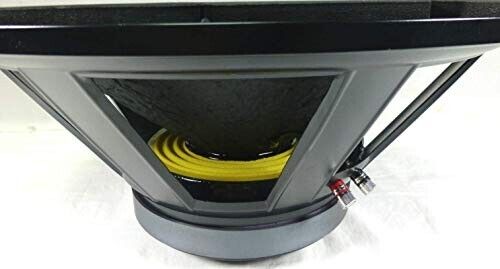

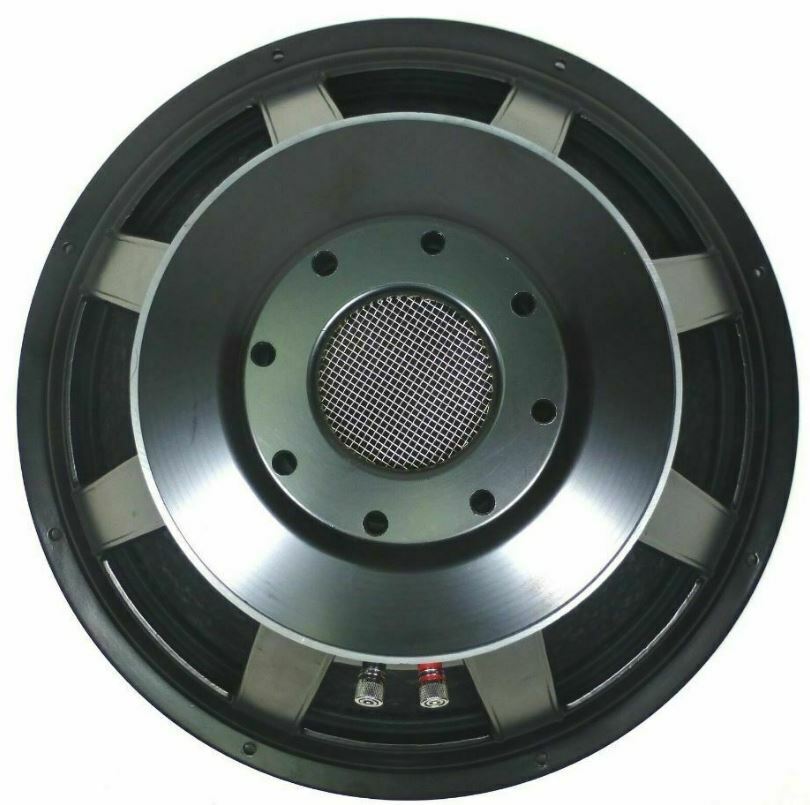

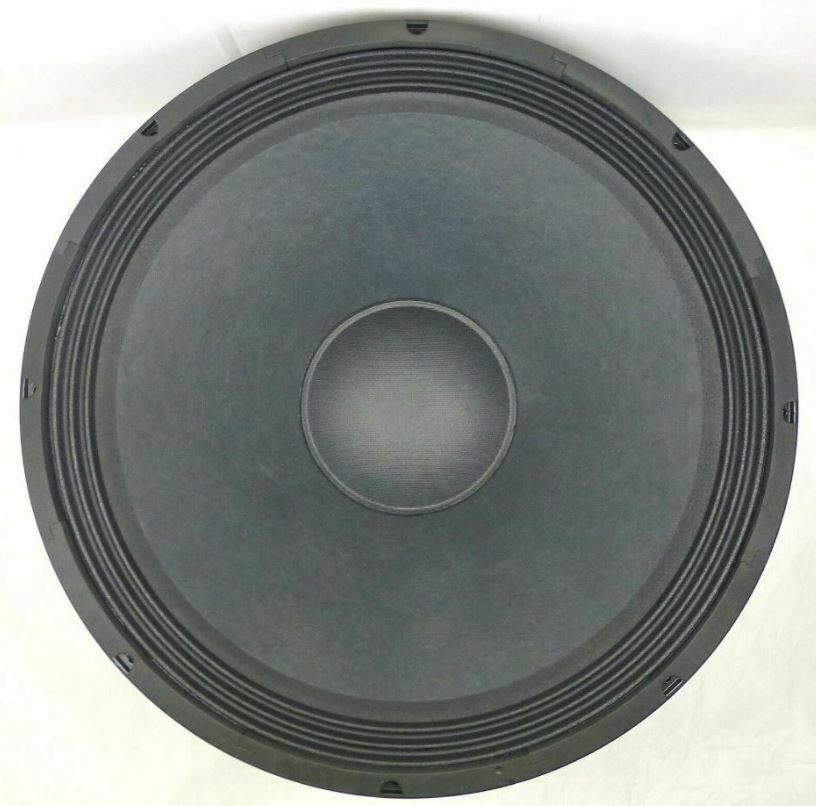

LASE Replacement 18" Speaker for EAW 804064


Price:
Sale price$244.99

Description

The LASE Replacement 18" Speaker for EAW 804064 - 8  Ohm

4" voice coil



2000W continuous power / 1000W RMS AES

SPECIFICATIONS

  • Nominal Diameter: 18"
  • Impedance: 8 ohm
  • Power rating - 1000W RMS
  • Sensitivity - 96dB
  • Frequency range - 30-2500Hz
  • Voice coil diameter - 100mm/4in
  • Chassis type - Cast aluminium
  • Magnet type - Ferrite
  • Coil material - Round copper
  • Former material - Glass fibre
  • Cone material - Glass loaded paper with weather-resistant impregnation
  • Surround material - Cloth-sealed
  • Suspension - Double
  • Xmax - 8mm/0.33in
  • Gap depth - 9.5mm/0.37in
  • Voice coil winding width - 25mm/0.99in
  • Magnet weight - 3.1kg/110oz.
SMALL SIGNAL PARAMETERS
  • D 0.33m / 12.99in
  • Fs 40.5Hz
  • Mms 153.53g / 5.42oz
  • Mmd 139.38g / 4.92oz
  • Qms 3.98
  • Qes 0.36
  • Qts 0.33
  • Re 5.10 Ohms
  • Vas 104.27lt/3.68ft3
  • Bl 23.53Tm
  • Cms 0.10mm/N
  • Rms 9.81kg/s
  • Le (at 1kHz) 1.8mH

    MOUNTING INFORMATION

    • Diameter: 452 mm
    • Overall depth: 205 mm / 8.07 in
    • Cut-out diameter: 416 mm / 16.38 in
    • Mounting slot dimensions: 10mm x 7mm / 0.4in x 0.27in
    • Number of mounting slots: 8
    • Mounting PCD range: 429-440mm/16.89-17.32in
    • Impedance 8 Ohms
    • Unit weight: 9.8kg/21.6lb.
