Description

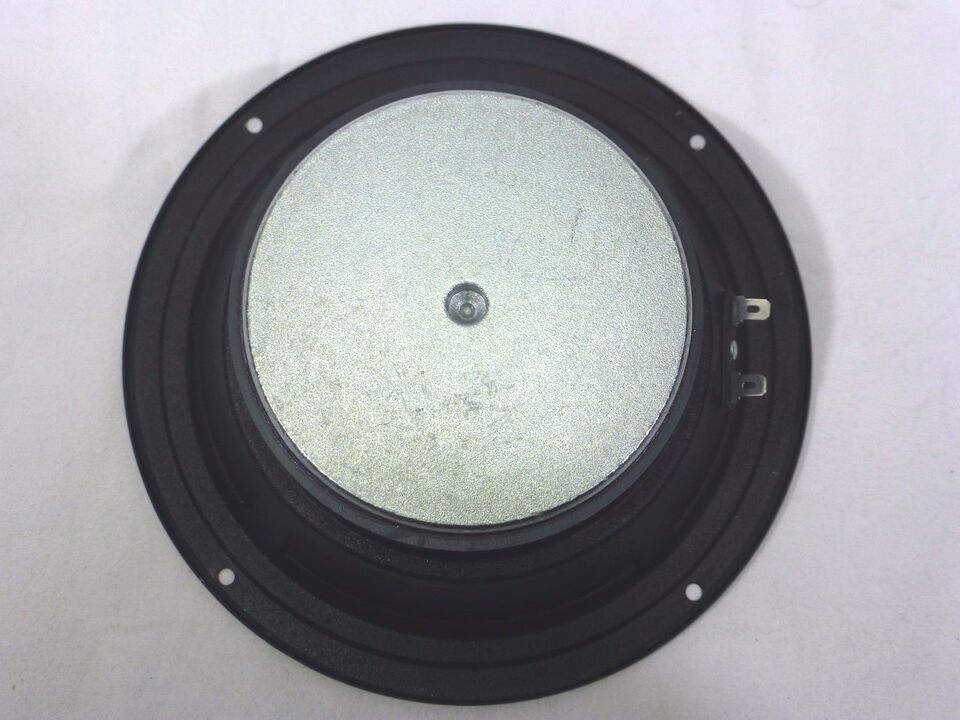

The LASE Replacement 6.5" Mid-Range Woofer for QSC KW153 / XD-000001-00
SPECIFICATIONS
- Nominal diameter: 6.5 inches
- Power rating: 50 Watts RMS
- Nominal Impedance: 8 ohms
- Sensitivity: 97dB
- Frequency Range: 500-5000Hz
- Voice Coil Diameter: 38mm/1.5 inches
- Chassis Type: Pressed steel
- Magnet Type: Ferrite
- Magnet Weight: 0.48kg/17oz
- Coil Material: Round copper
- Former Material: Polyimide
- Cone Material: Kevlar loaded paper
- Surround Material: Treated paper
- Suspension: Single
MOUNTING INFORMATION
- Overall Diameter: 178mm/7.01in
- Overall Depth: 74mm/2.91in
- Cut-out Diameter: 147mm/5.79in
- Mounting Slot Dimensions: Ø 4.3mm/0.17in
- Number of Mounting Slots: 4
- Mounting PCD Range: 168.5mm/6.63 inches
- Unit Weight: 1.4kg/3.1 lbs
