Description
LASE B215D Replacement Amplifier Module for Behringer B215D Powered Speaker Module

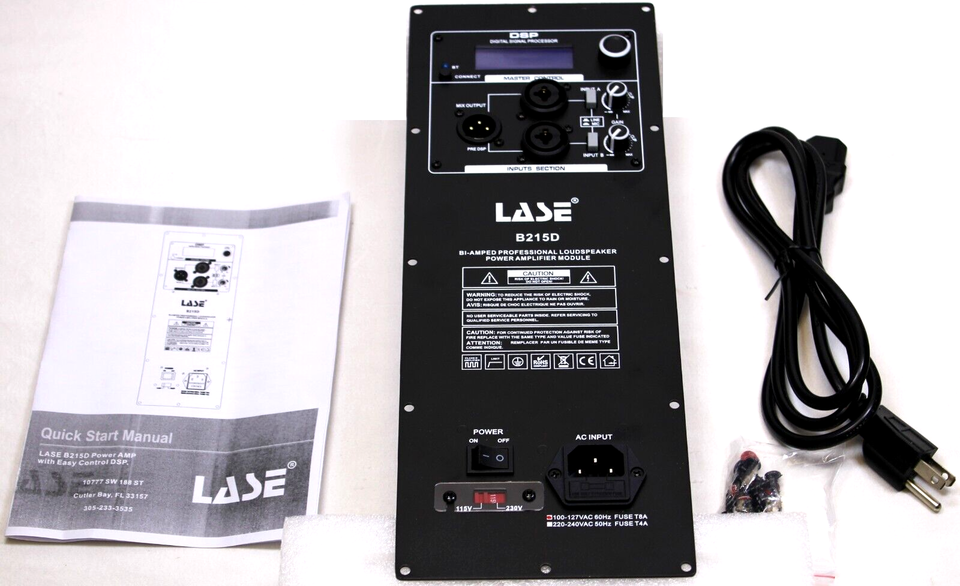

The LASE B215D control panel is simple and neatly laid out, with the user controls being restricted to power, a rotary level control, and a pair of push switches for selecting 'EQ' Boost/Flat settings or Line/ Mic sensitivity. There are two XLR connectors, one for signal input and one for link out, so that additional speakers or systems can be daisy‑chained. The input socket is one of those handy 'combi' types, and will accept either a three‑pin XLR or a standard jack plug (balanced or unbalanced).
New !
LASE B215D Replacement Amplifier Module for Behringer B215D Powered Speaker. Module.
ATT. This will only fit the Behringer B215D Powered Speaker not the B212 or any other Behringer module.
Very Easy To Install.
The LASE B215D control panel is simple and neatly laid out, with the user controls being restricted to power, a rotary level control, and a pair of push switches for selecting 'EQ' Boost/Flat settings or Line/ Mic sensitivity. There are two XLR connectors, one for signal input and one for link out, so that additional speakers or systems can be daisy‑chained. The input socket is one of those handy 'combi' types, and will accept either a three‑pin XLR or a standard jack plug (balanced or unbalanced).

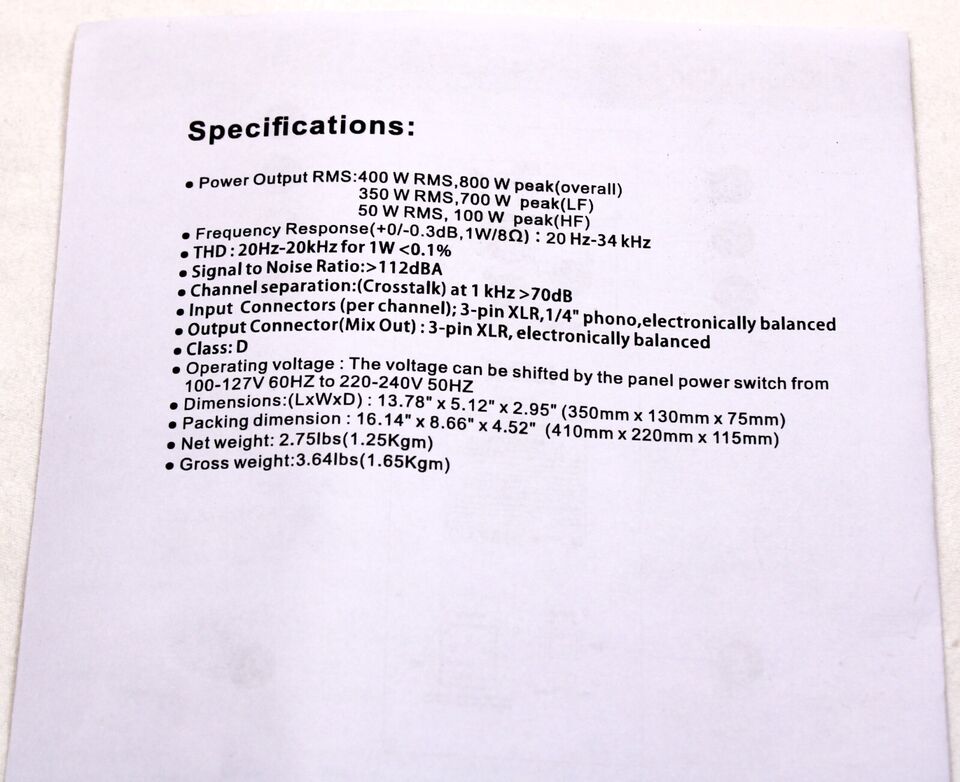

SPECIFICATIONS
- Power Output
- 400W RMS (overall); 800W (Peak)
- LF: 350W RMS (700W Peak) @ 8 Ω
- HF: 50W RMS (100W Peak) @ 8Ω
- Frequency Response (± 0.3dB,1W/8Ω) : 20 Hz - 34 kHz
- Crossover Frequency: 1.8 Khz
- THD: 20 Hz - 20 kHz for 1 W <0.1%
- Signal-to-Noise Ratio: >112 dBA
- Channel separation: (Crosstalk) at 1 kHz >70 dB
- Input Connector (per channel): 3-pin XLR,1/4" phono, electronically balanced.
- Output Connector: Balanced Male 3-pin XLR " Mix Out".
- Class: D
- Operating voltage: The voltage can be shifted by the panel power switch from 100-127V 60 Hz to 220-240V 50Hz

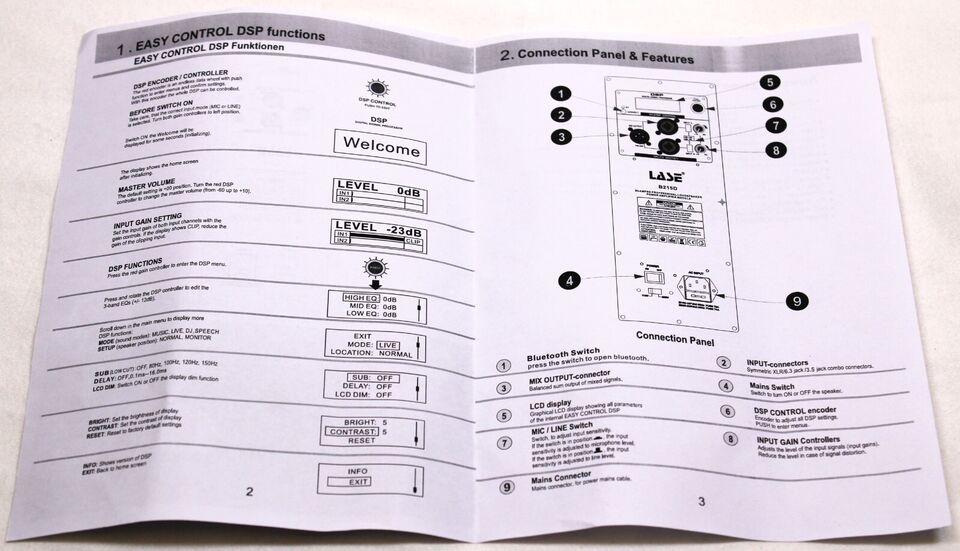

- Module Connect: SEE PICS
- Dimensions (L×W×D) : 13.78" x 5.12" x 2.95" (350mm x 130mm x 75mm).
- Packing dimension: 16.14" x 8.66" x 4.52" (410mm x 220mm x 115mm)
- Net weight: 2.75lbs (1.25Kgm)
- Gross weight: 3.64lbs(1.65Kgm)
