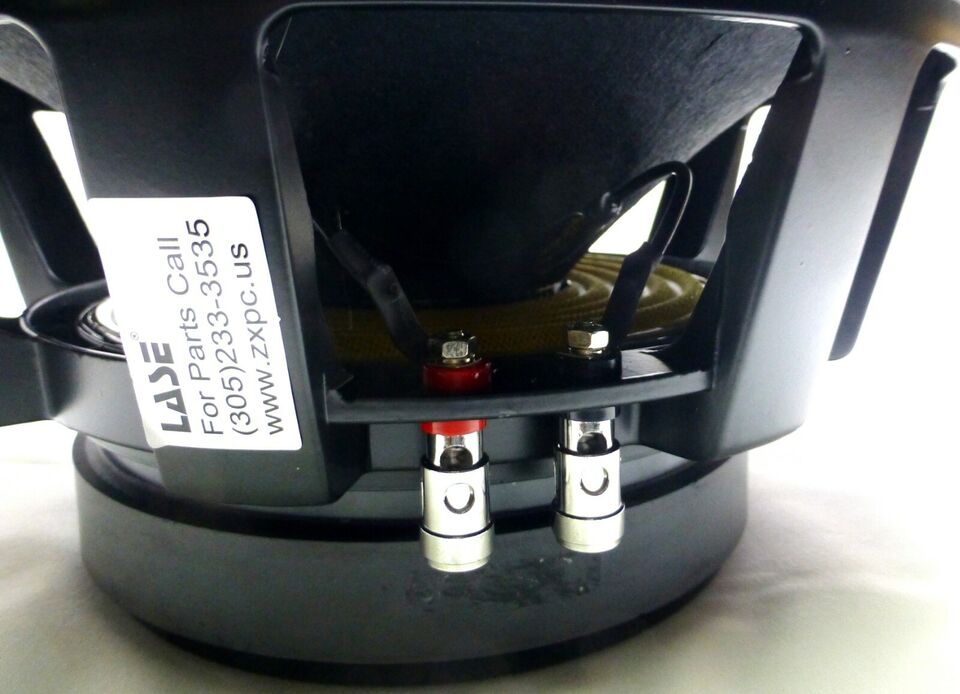

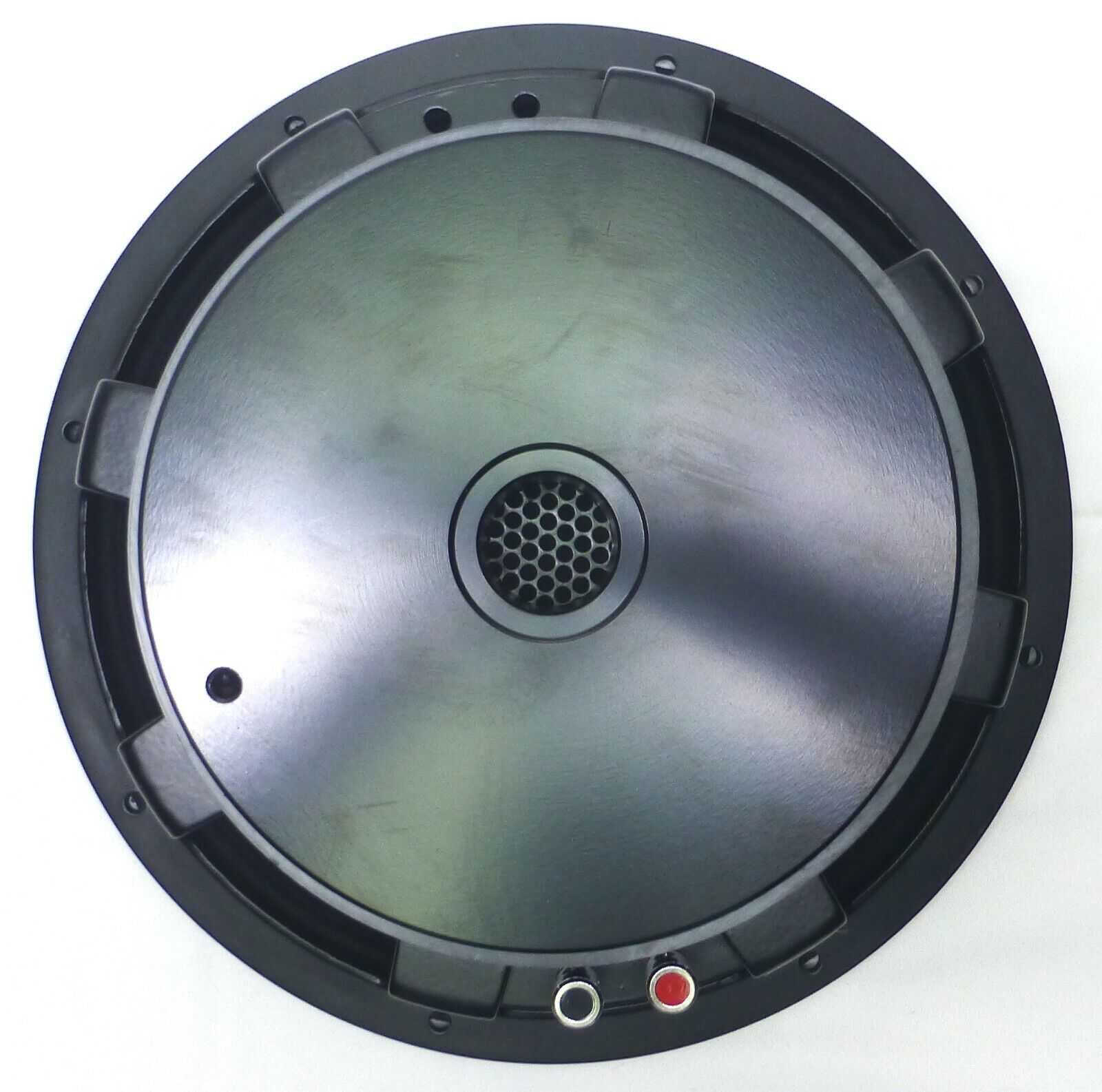

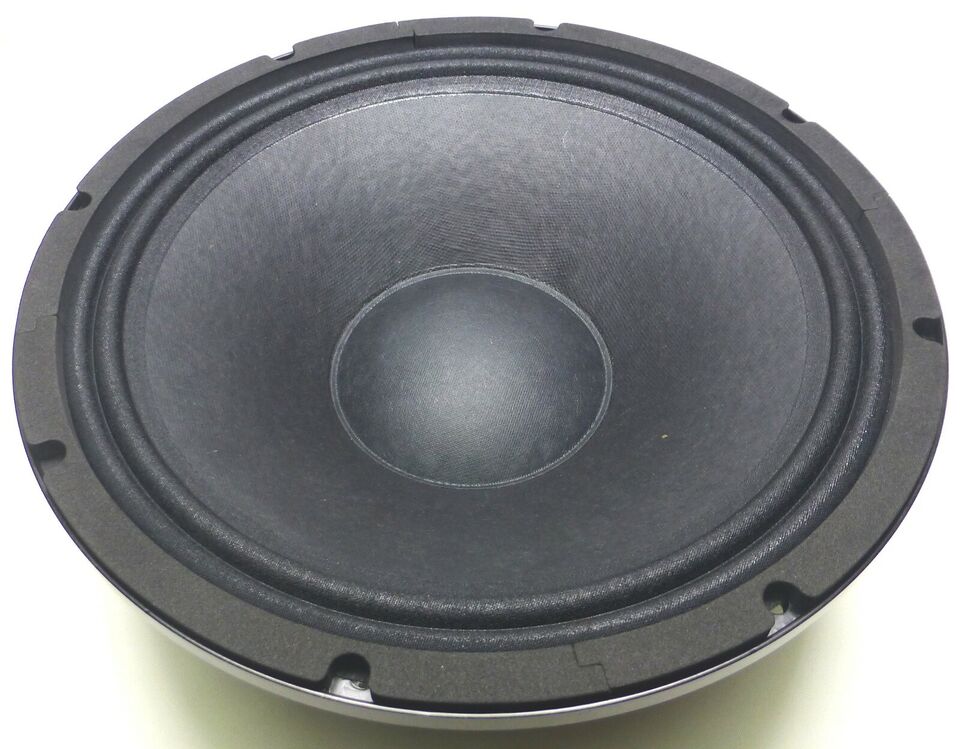

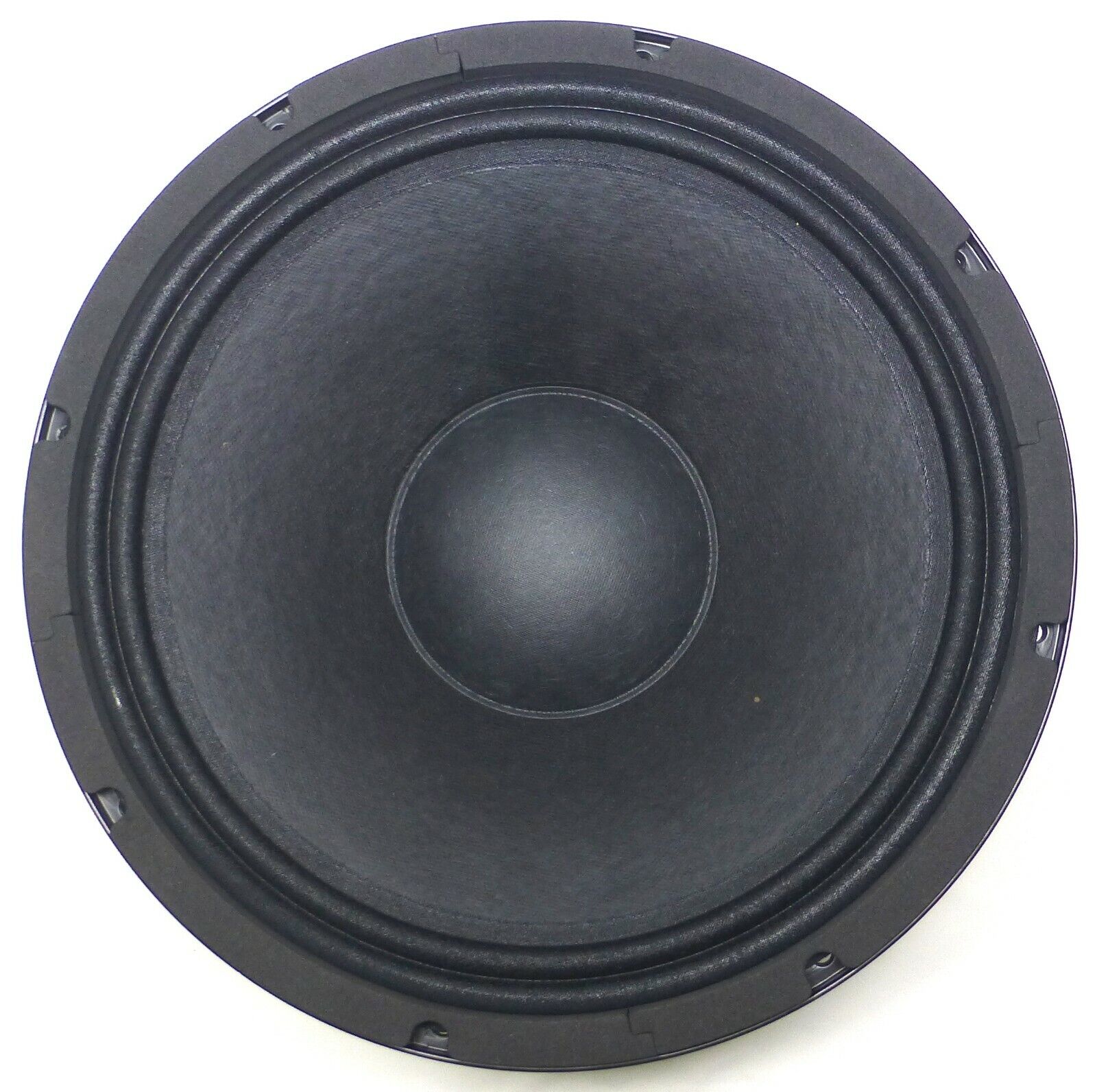

LASE1201 Replacement Speaker for 12" Electro Voice EVS-12SB, EVM-12L, & More


Price:
Sale price$124.99

Description

Our LASE1201 replacement speaker for 12" Electro Voice speakers can be used in place of the following models:

  • EVS-12SB
  • EVM-12L
  • Force 12
  • SX200
  • SX300
  • EVI-12
  • QRX



The LASE1201 speaker is recommended for use in professional audio as a sealed or vented midbass. It can also be used in a vented bass enclosure incorporating a high-pass filter and is great in horn-loaded designs thanks to its high motor strength.

FEATURES

  • Professional bass/mid-bass speaker
  • Polyamide-imide coated copper voice coil
  • Kapton coil former
  • 1000 watt continuous program power handling
  • High sensitivity and low distortion
  • Shaped shallow triple-roll damped surround
  • Primarily designed to be horn loaded in medium and long throw system
  • Ferrite magnet

SPECIFICATIONS

  • Nominal Diameter: 12"
  • Power Handling (rms): 500 watts
  • Power Handling (max): 1000 watts
  • Impedance: 8 ohm.
  • Frequency Response: 57 to 2,800 Hz.
  • Maximum Linear Excursion (Xmax): 4.8 mm
  • Sensitivity: 97.1db 1w/1m
  • Voice Coil Diameter: 3"
  • Magnet Weight: 5 lbs
  • Depth: 6"
