Description

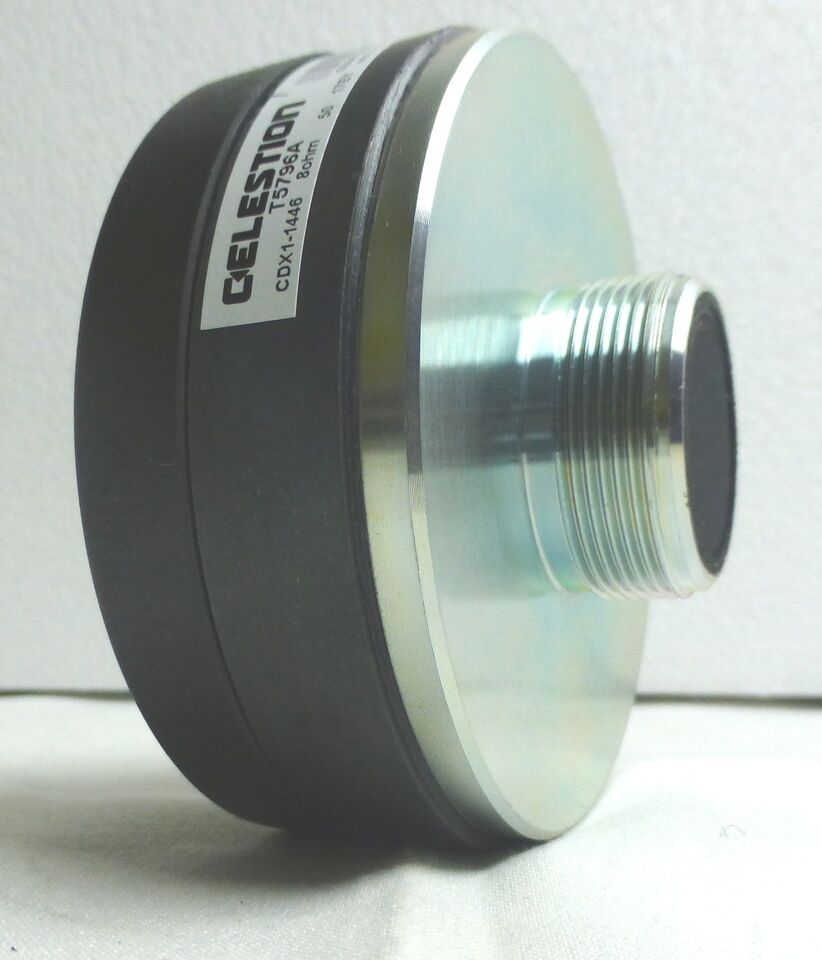

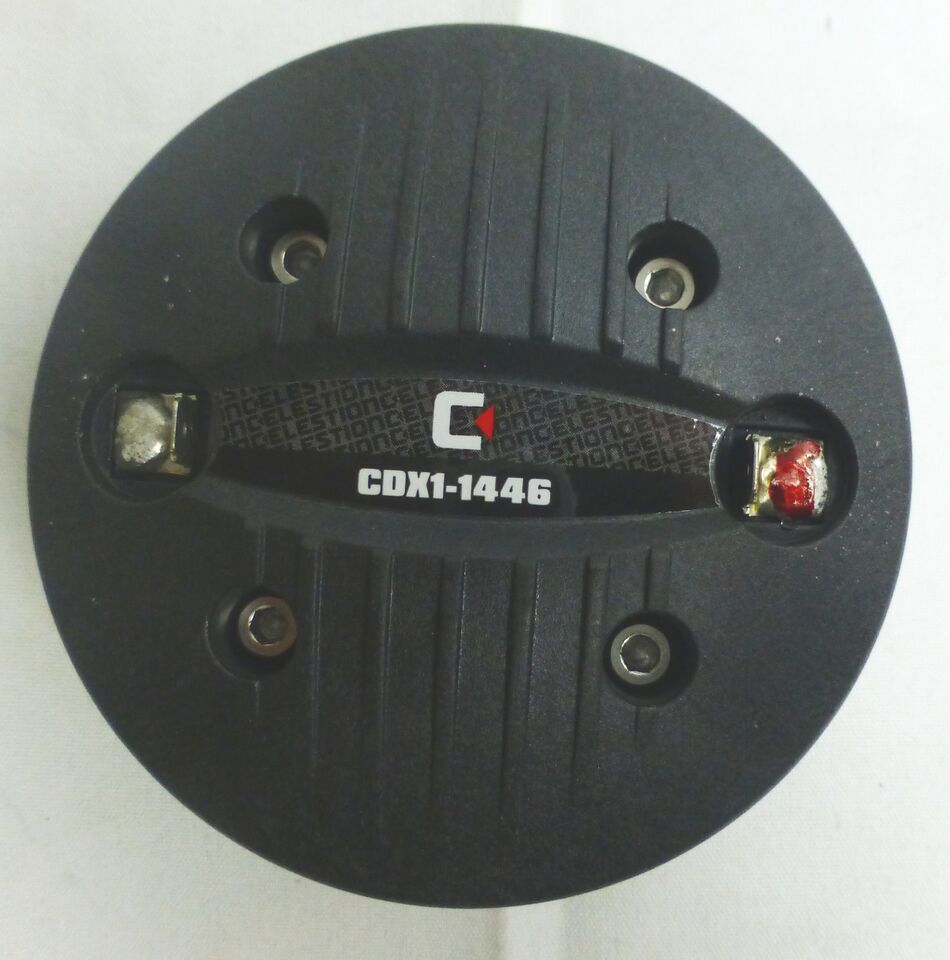

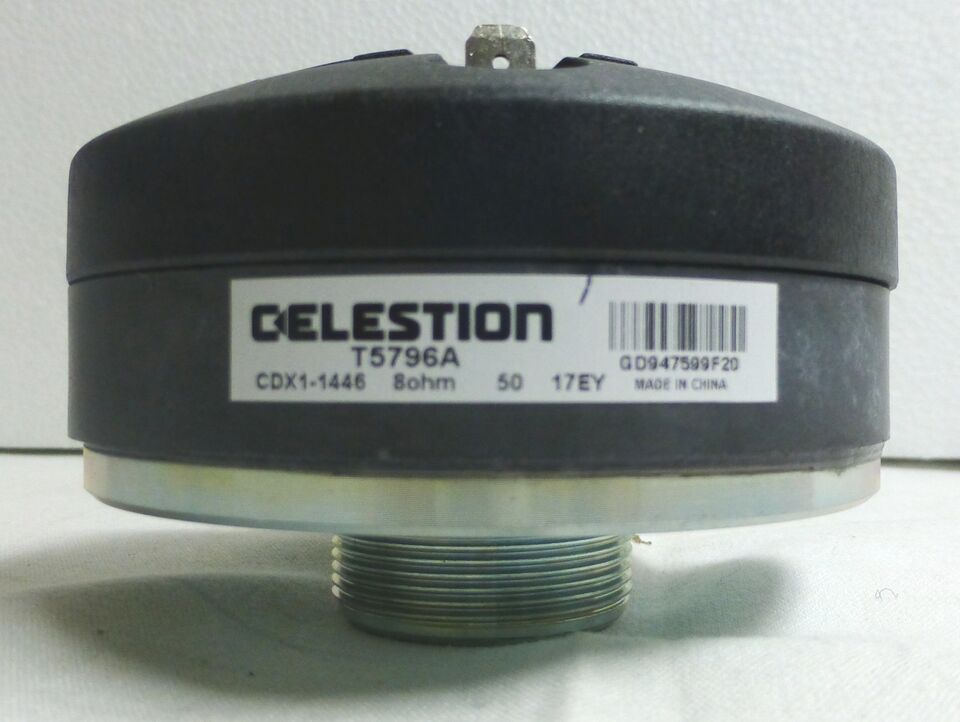

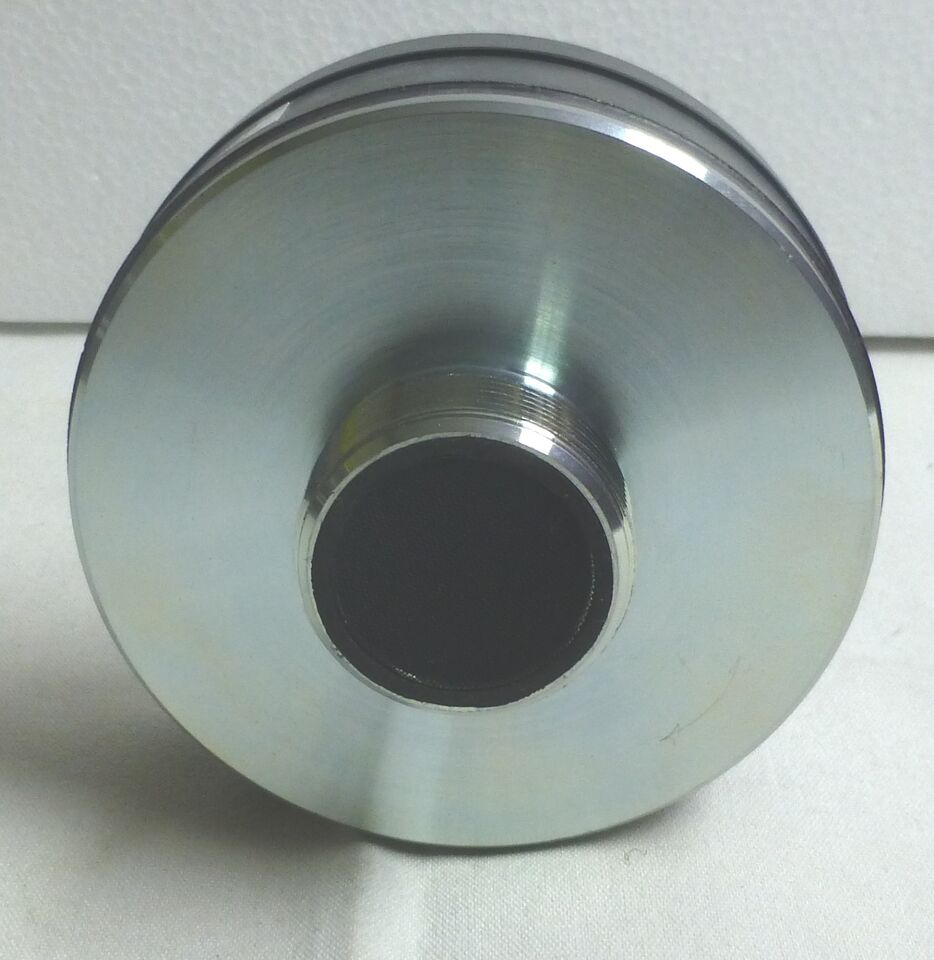

Celestion CDX1-1446 1" 20 Watt, 8 Ohm Compression Driver
Celestion's compact and versatile CDX1-1446 1" high frequency driver with 1-3/8"-18 TPI mount is the result of the company's extensive experience, and its commitment to rigorous technical analysis. The driver's advanced non-metallic PETP diaphragm provides accurate, non-fatiguing response, while offering a higher level of durability than shatter-prone metallic domes. Celestion's new drivers are in great demand by popular loudspeaker system manufacturers, and after a single listen to the CDX-1446 it will be easy to understand why!
FEATURES
- 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
- 20W rms power handling (AES standard) and 106 dB sensitivity
- Finite Element Analysis (FEA) techniques used to optimize both magnetic and acoustic components
- One piece PETP diaphragm and surround
- Recommended 2,200 Hz 12 dB/octave crossover makes this driver suitable for both 2 way and 3 way designs.
SPECIFICATIONS
- Power handling:20watts RMS (AES standard).
- Recommended min. crossover: 2,200 kHz, 12 dB/octave.
- VC dia: 1.4".
- Impedance: 8 ohms.
- Frequency range: 1,500-20,000 Hz.
- Sensitivity: 110 dB 1W/1m.
- Dimensions: 3.54" dia. x 2.71" depth.
- Net weight: 2.4 lbs.
