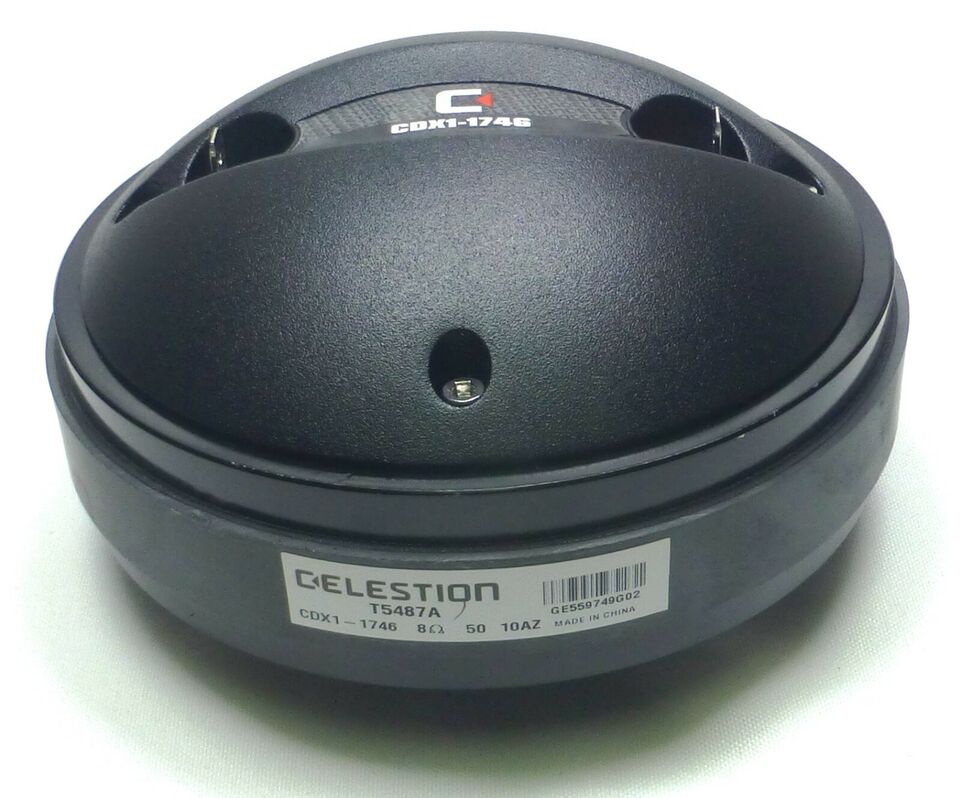

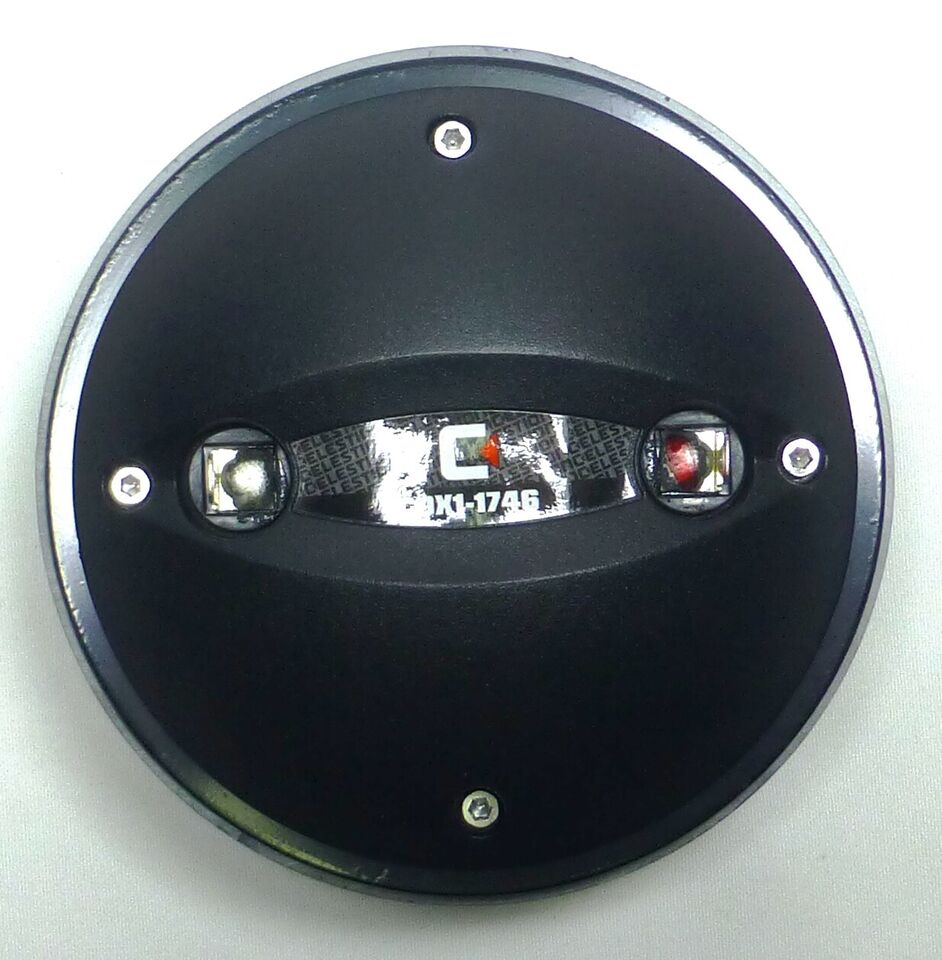

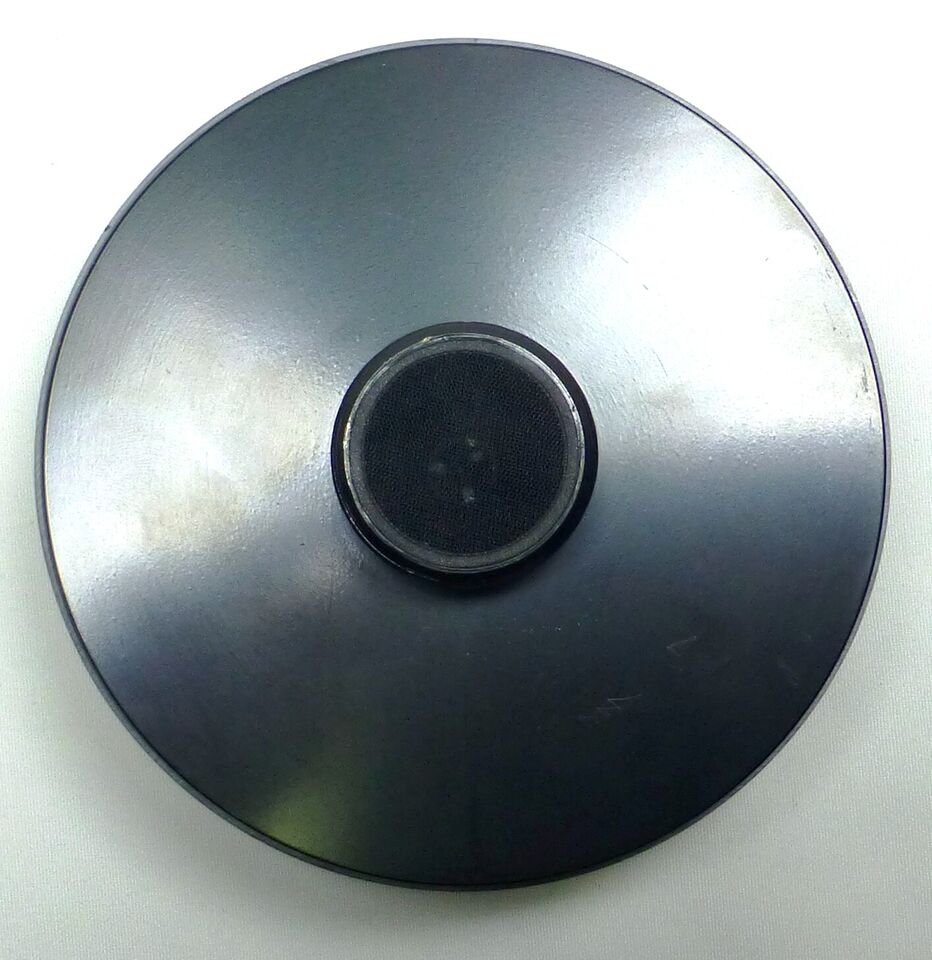

Original Factory Celestion CDX1-1746 - Compression Driver / Ferrite 1" Screw-On

Sale price$72.99


Celestion CDX1-1746 Compression Driver 1 3/8" Screw-On / Ferrite

  • 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
  • 40W rms power handling (AES standard) and 110dB sensitivity
  • Sound Castle™ clamping ensures even pressure on diaphragm assembly for reduced distortion
  • One piece PETP diaphragm and surround
  • Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design


  • Power rating - 40W rms
  • Nominal impedance- 8Ω
  • Frequency range- 1200-20,000Hz
  • Sensitivity2- 110dB
  • Recommended min. crossover (12dB/oct)- 2200Hz
  • Voice coil diameter- 44mm/1.75in
  • Voice coil material- Edgewound copper clad aluminium
  • Magnet type- Ferrite
  • Diaphragm material- PETP film
  • Surround material- PETP film
  • Mounting Information
  • Overall width- 120mm/4.7in
  • Overall depth- 56mm/2.2in

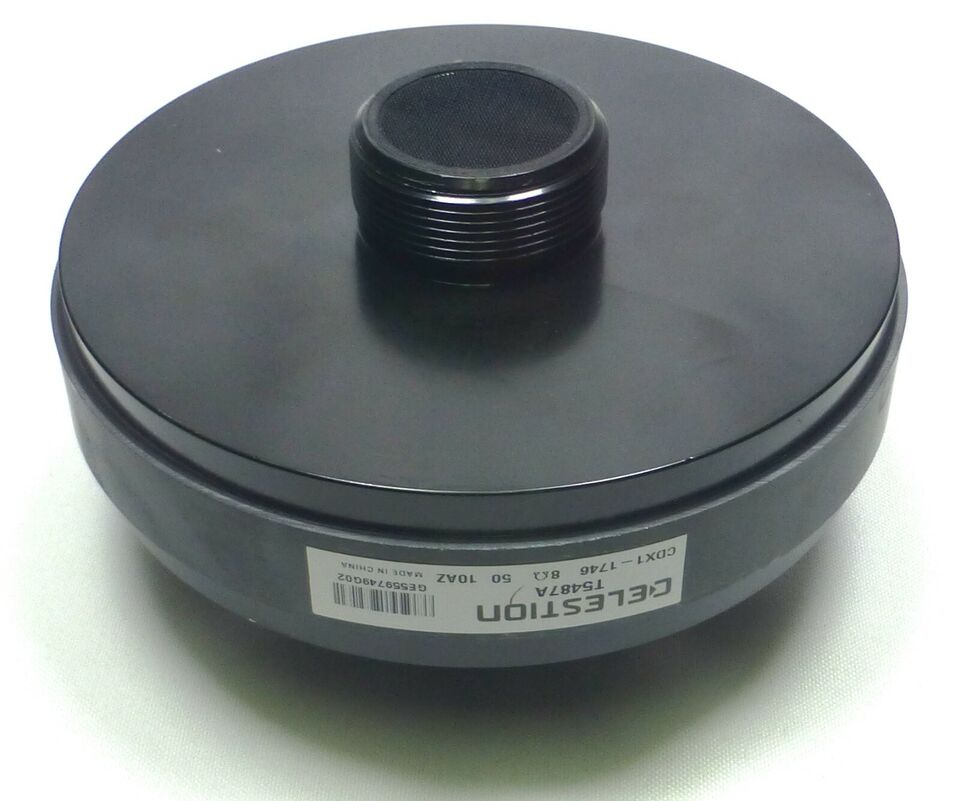

  • Fitting- Screw (35mm, 1.38in dia)
  • Throat exit- 25.4mm/1in
  • Unit weight- 2.3kg/5.1lb

Packed Dimensions & Weight
Single pack size W x D x H- 140mm x 170mm x 70mm (5.5in x 6.7in x 2.8in)
Single pack weight- 3kg/6.6lb.
