Description

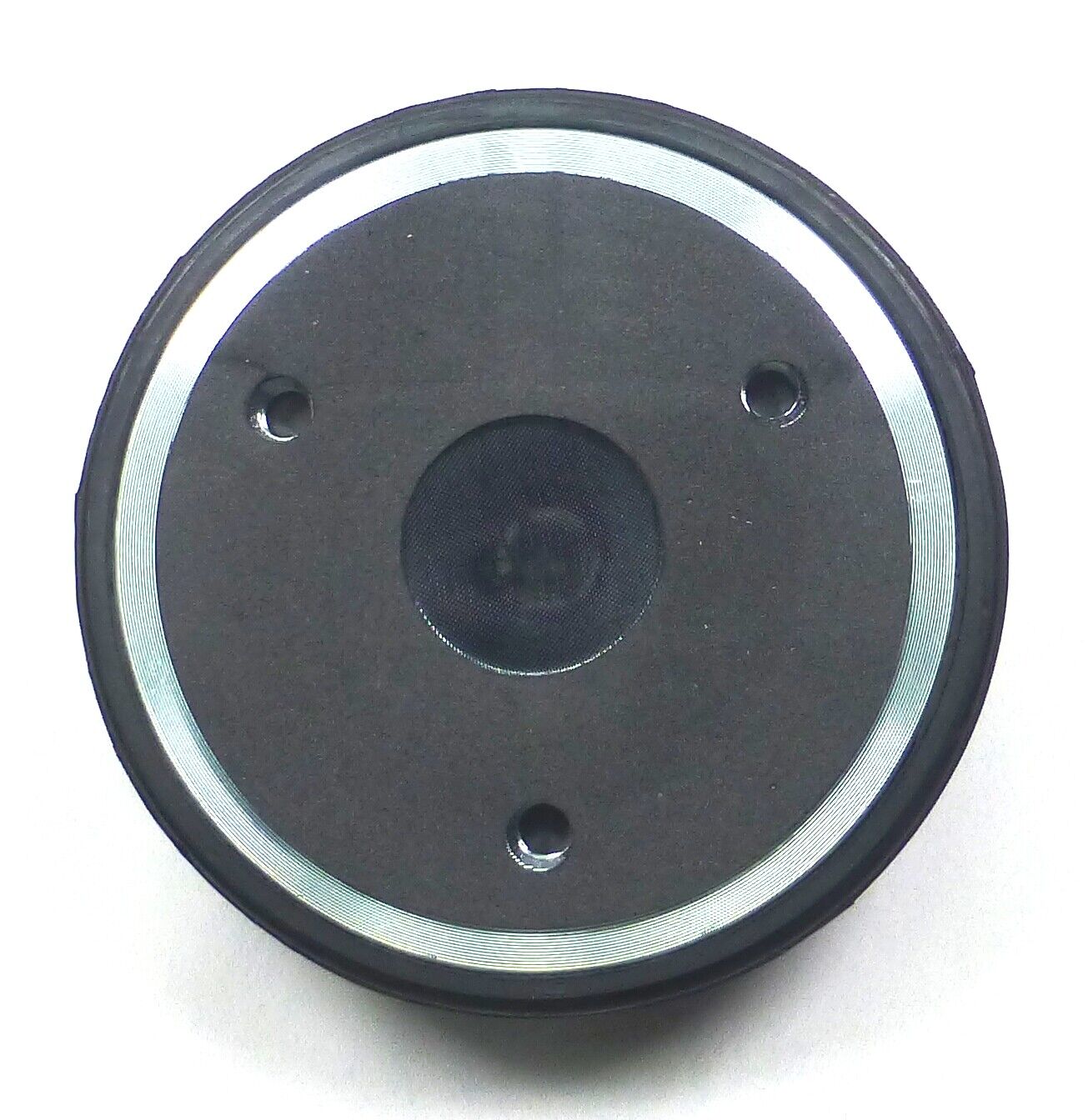

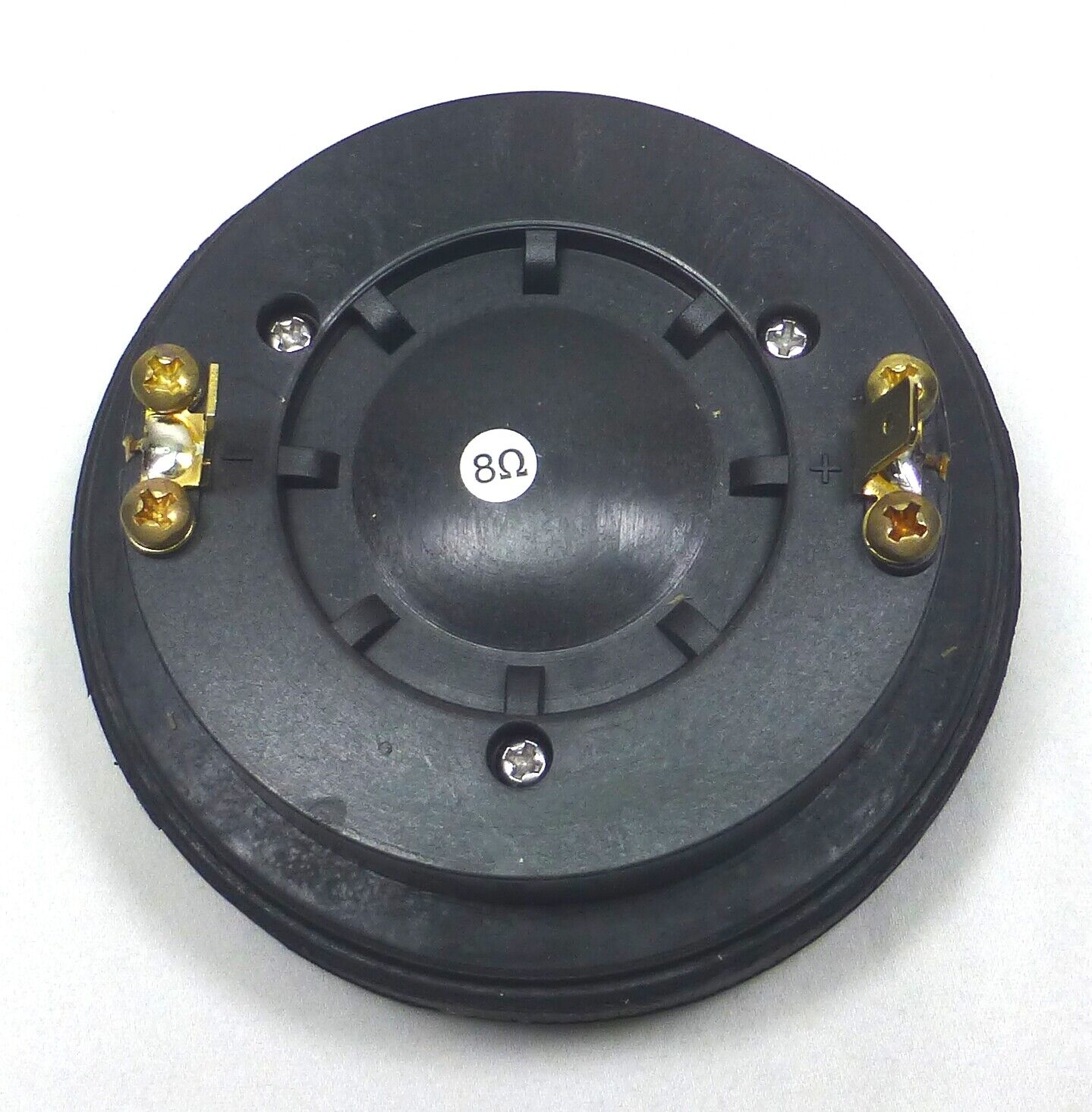

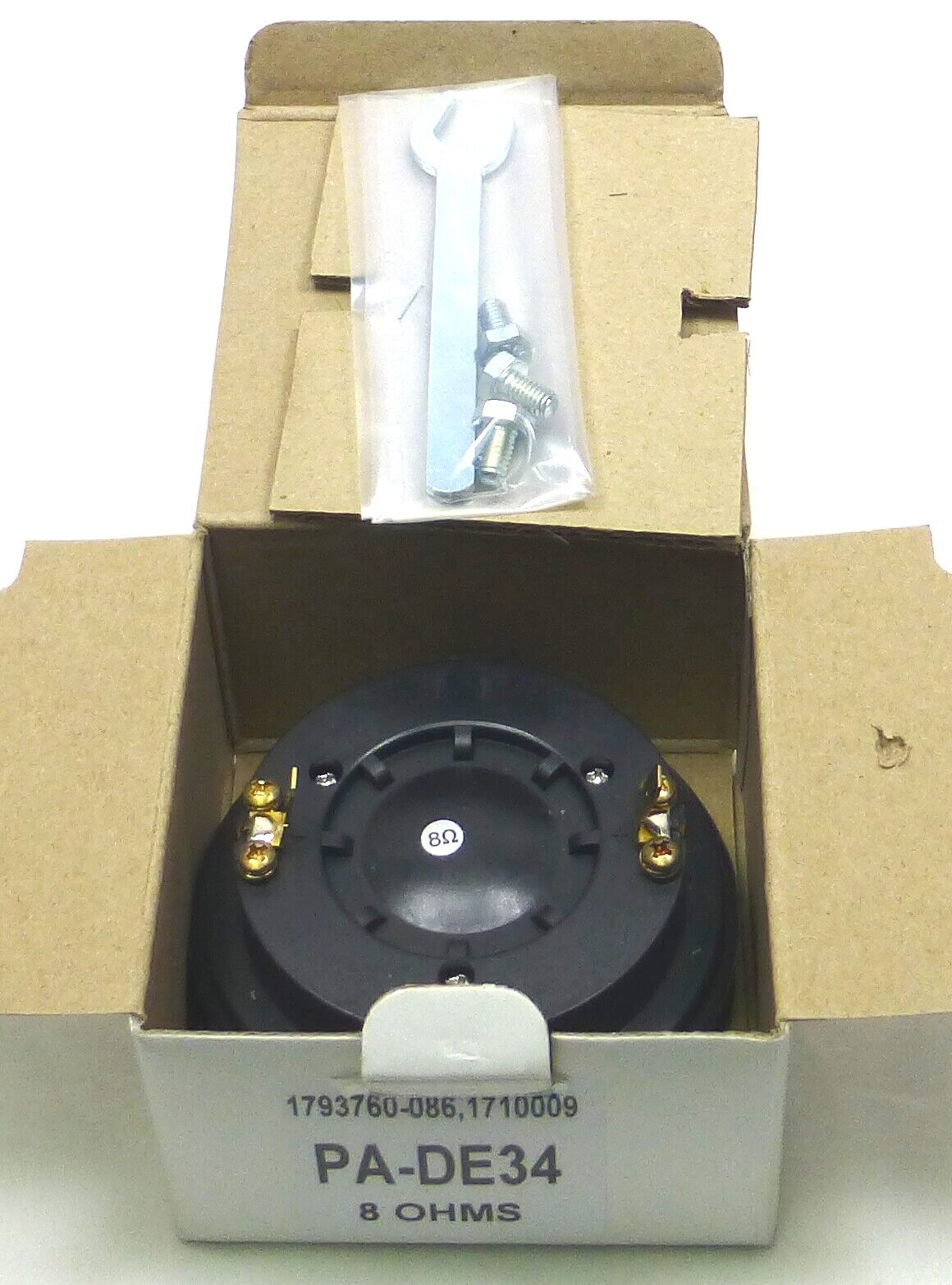

Original Factory P Audio PA DE34 8 ohm Compression Bolt-On Driver
The P Audio PA-DE34 is a small format compression driver designed for mid-range and extended hi-frequency application in two-way professional sound reinforcement system.The small format design is excellent for wide bandwidth applications and is ideal for medium size sound reinforcement system.The PA-DE34 is ferrite base permanent magnet system.This design features P.Audio's legendary high temperature systems to insure high power handling and high reliability.
SPECIFICATIONS
The P Audio PA-DE34 is a small format compression driver designed for mid-range and extended hi-frequency application in two-way professional sound reinforcement system.The small format design is excellent for wide bandwidth applications and is ideal for medium size sound reinforcement system.The PA-DE34 is ferrite base permanent magnet system.This design features P.Audio's legendary high temperature systems to insure high power handling and high reliability.
SPECIFICATIONS
- Throat Diameter 1 inch (25.4mm)
- Diaphragm Diameter 1.35 inch (34.4mm)
- Nominal Impedance 8 Ohm
- Voice Coil DC Resistance 6.4 Ohm
- Power Handling 30 Watt rms
- Mounting Type Bolt On
- Magnet: Ferrite
- Diaphragm Material: Aluminium
- Recommended Crossover 1.2kHz or higher
- (12dB / Oct slope)
- Net Weight 1.05kg (2.31 lbs)
- Shipping Weight 1.1kg (2.42 lbs)
