Price:
$100.00

Description

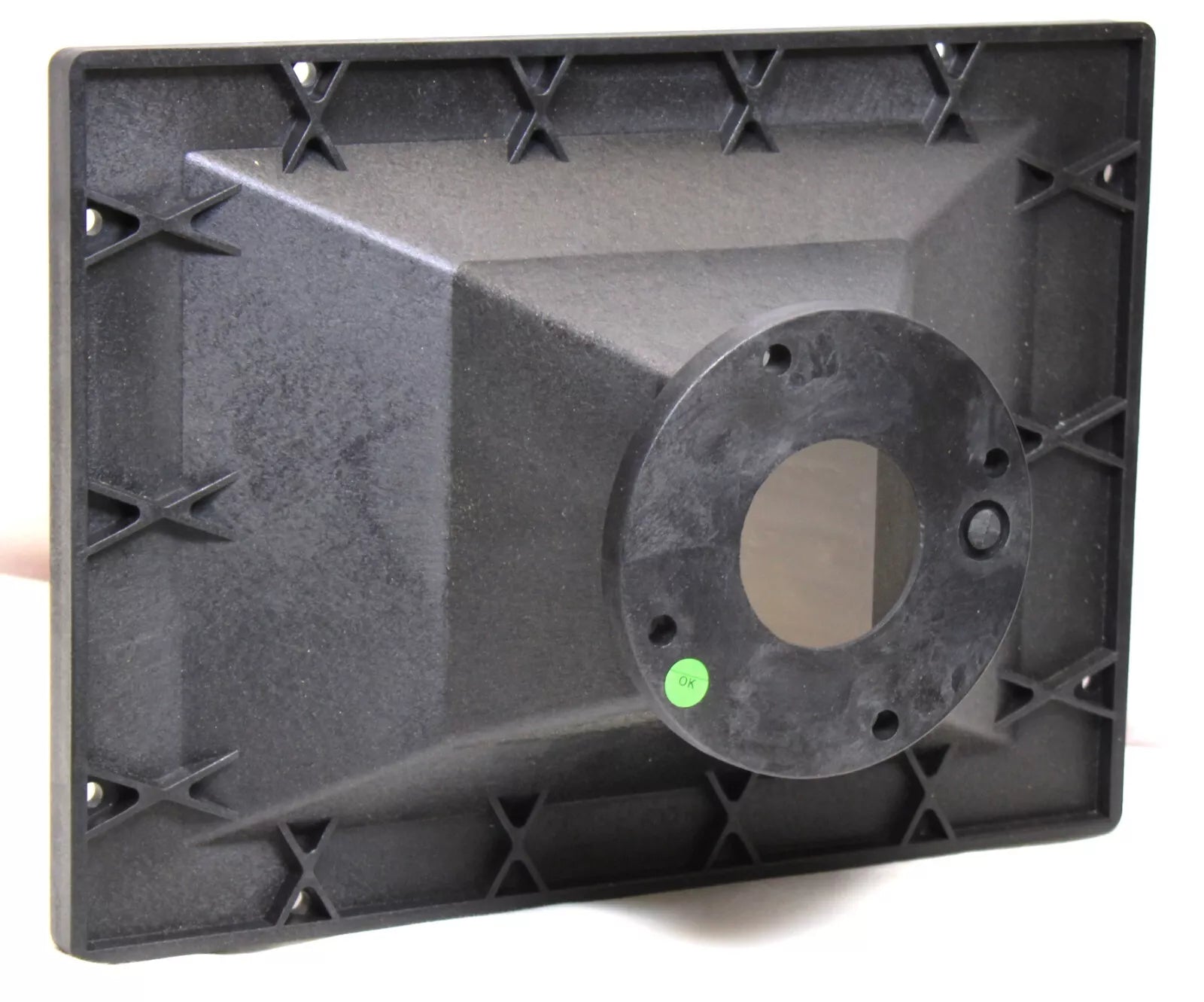

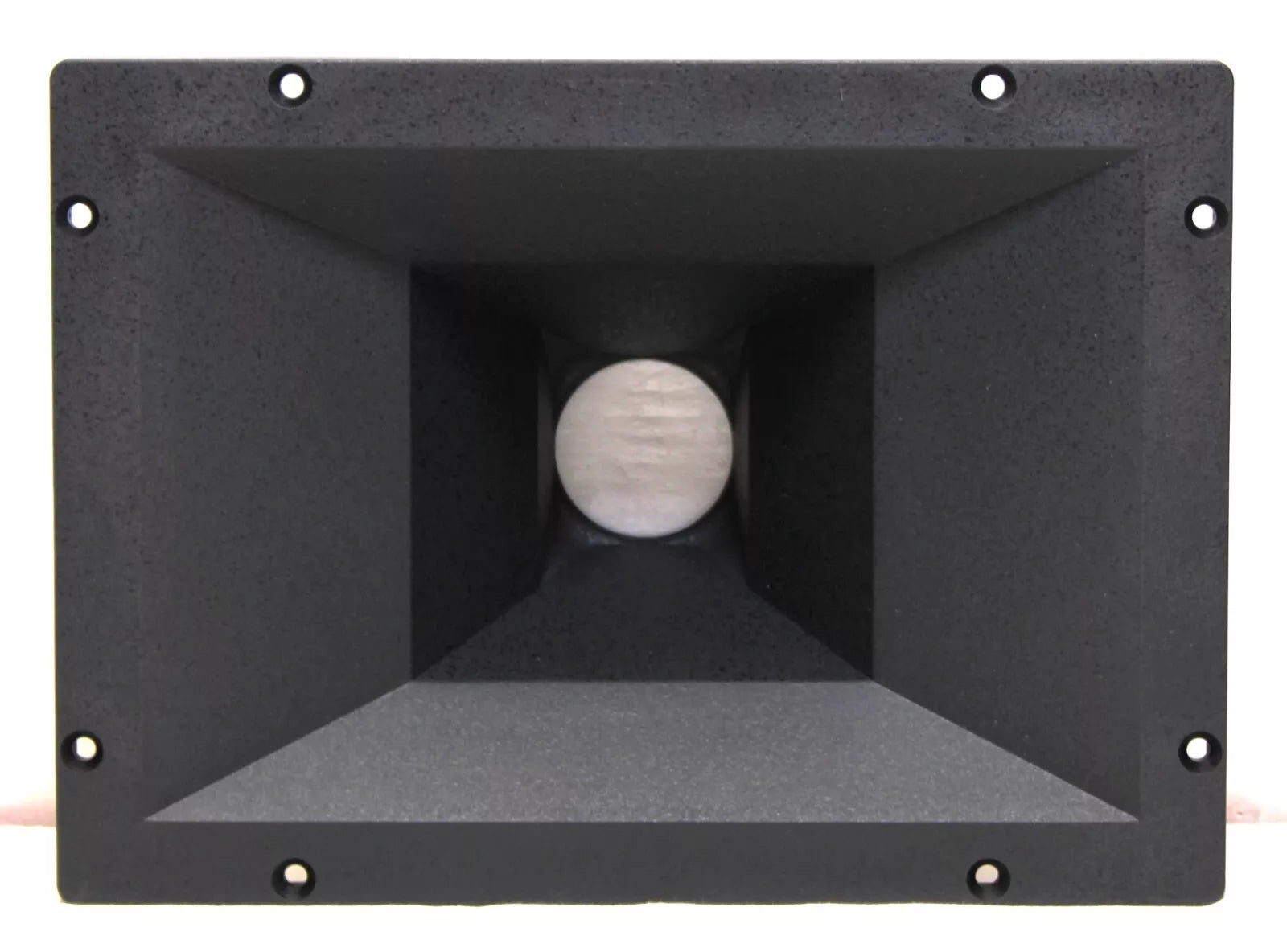

A Store Stock P-Audio PH3223 2" Horn Flare
For Assorted 2" Drivers Like JBL, Eminence, EV, Altec, Peavey Etc.

SPECIFICATIONS

  • Horn Dimension Front: 12.83" x 9.13" (323 mm x 234 mm)
  • Front to Rear: 4.6"(117 mm))
  • Dispersion: 90° Horizontal X 55° Vertical
  • Recommended Crossover Frequency: 500 Hz
  • Cut-Out Dimensions: 9.25" x 6.69" (235 mm x 170 mm)
  • Material: ABS glass-filled polycarbonate.
  • Weight: 3lbs (1.4 kg)
  • Mounting Type: Bolt-on.

The PH-3223 is ideal for short throw applications where wide dispersion is specified. Its large diameter throat accommodates several P Audio PreNeo and BMD series professional compression drivers. With a radiation pattern of 90° horizontal by 55° vertical, it provides good pattern control and acoustic loading. Constructed from high-impact ABS with additional glass filling, it offers structural support and rigidity.This horn is well-suited for mid-band applications
