Description

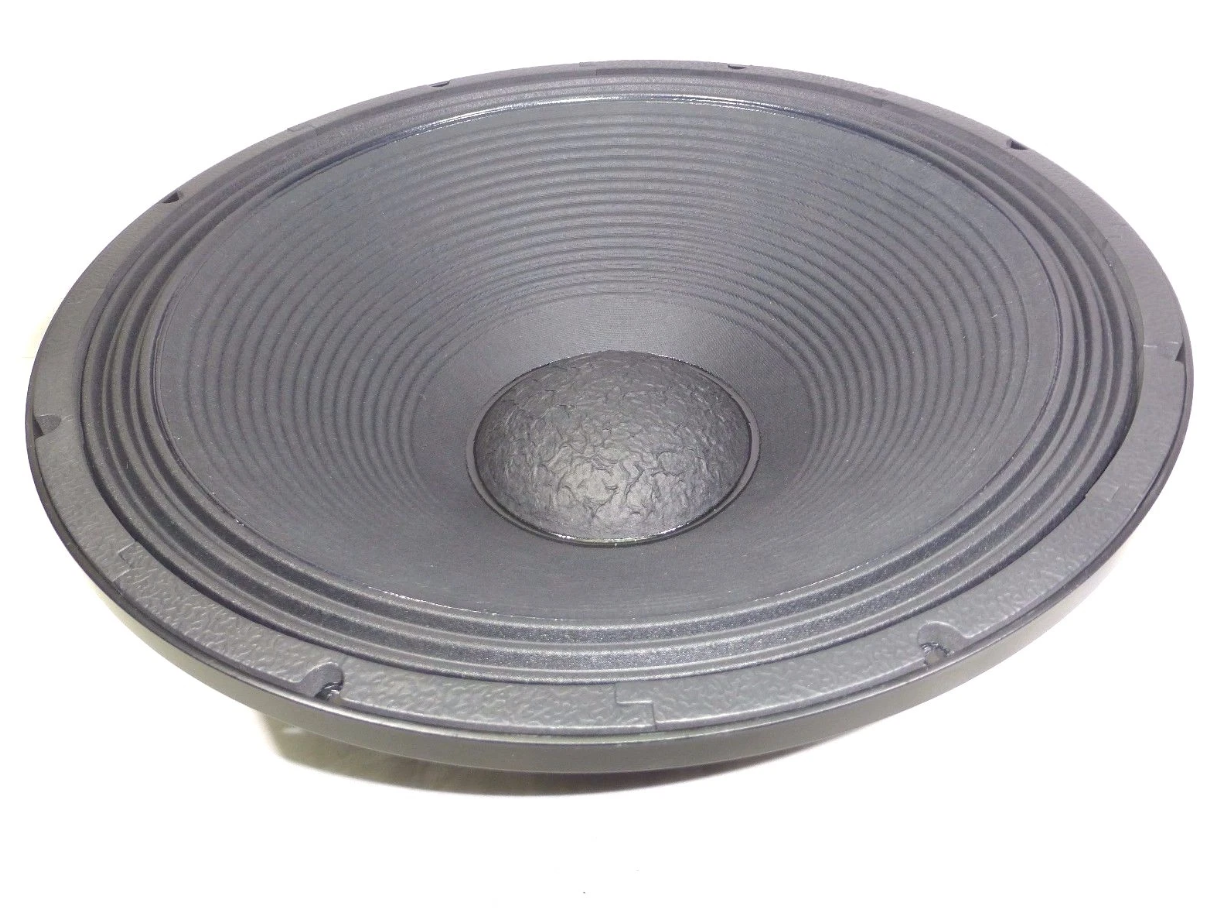

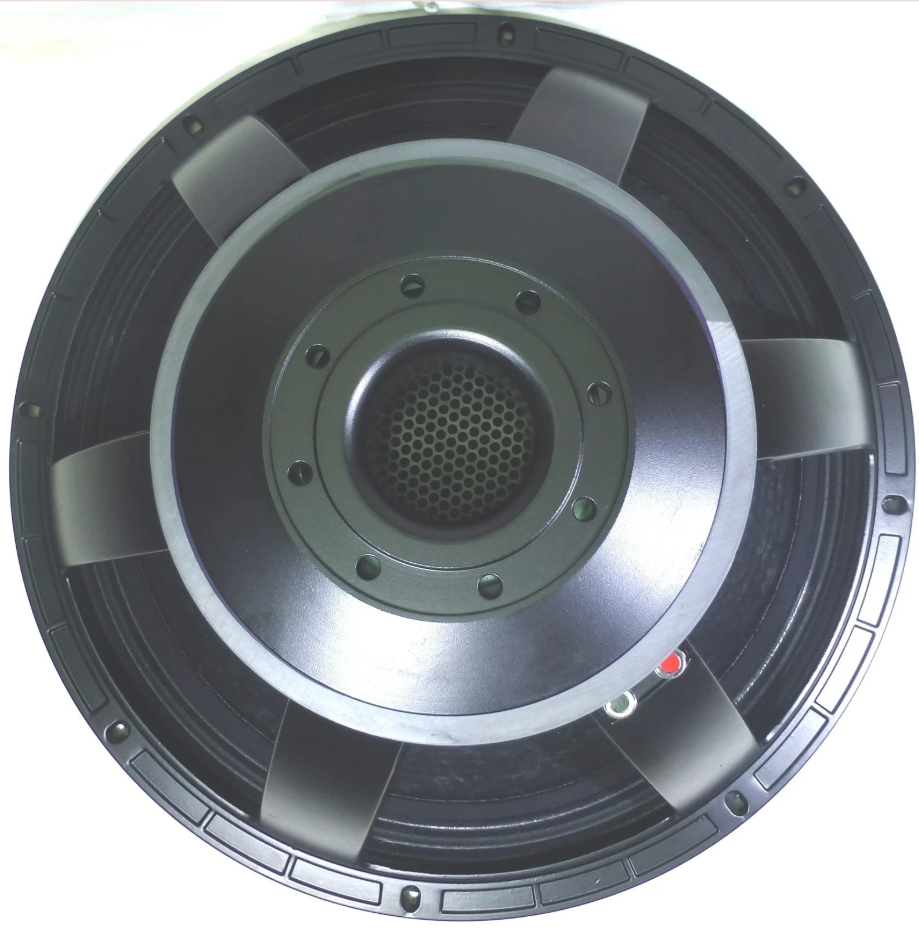

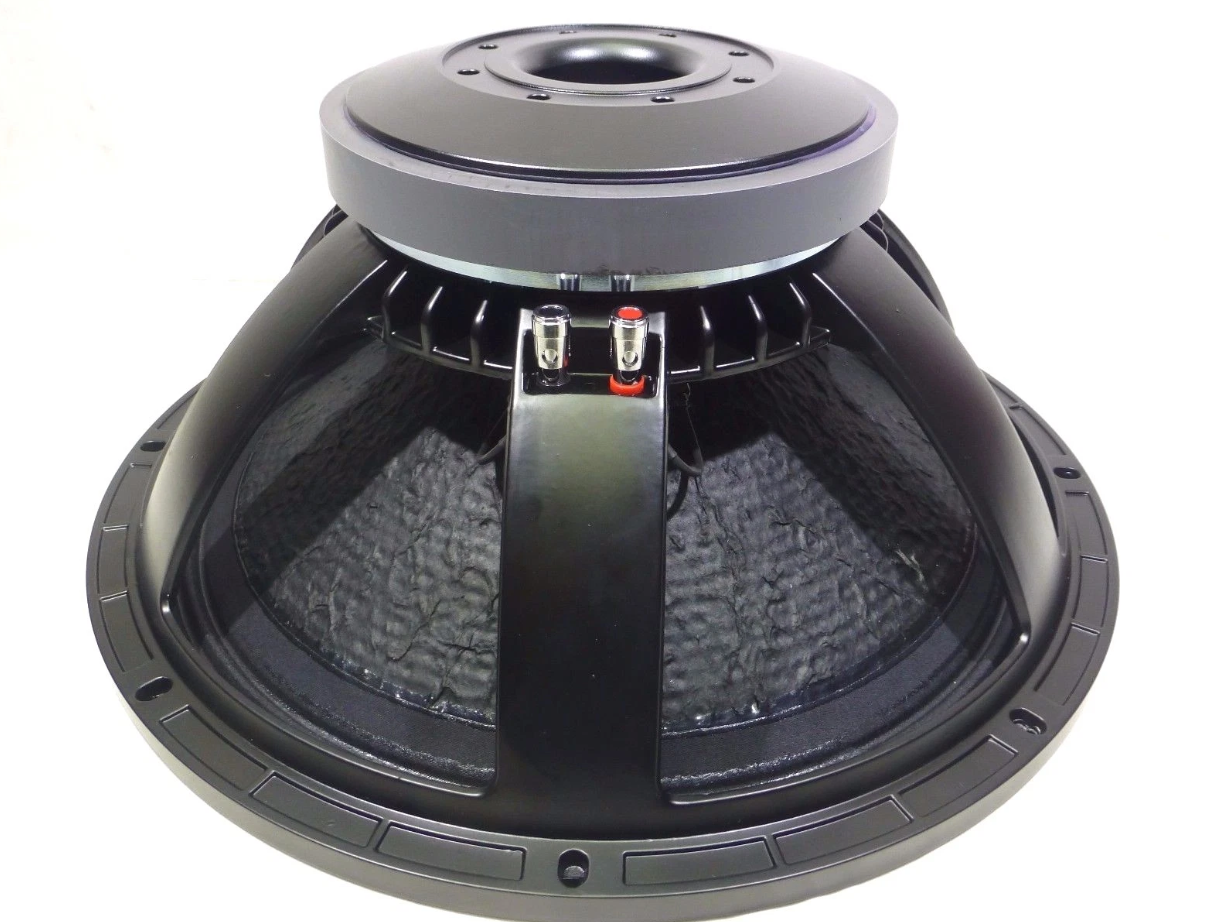

This Is A NEW Aftermarket 18" Woofer
for
Yorkville 7420, 7459 Also LS608, LS800P, LS801, TX9 @ 8 Ohm
Features:
- 1,200 watts RMS power handling capacity
- 100 mm (4 in) copper voice coil
- 35 – 1000 Hz response
- 97 dB sensitivity
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
- Dual demodulation rings in the magnet system
- Very low distortion—nothing but deep, clean bass
Specifications:
- Nominal diameter: 460 mm (18.0 in)
- Nominal impedance: 8 Ω
- Minimum impedance: 6.2 Ω
- Nominal power handling: 1200 W
- Continuous power handling: 2400 W
- Sensitivity (1W/1m): 97.0 dB
- Frequency range: 35 – 1000 Hz
- Voice coil diameter: 100 mm (4.0 in)
- Depth: 8"(203.2mm)
- Winding material: Copper
- Former material: Glass Fibre
- Winding depth: 25 mm (1.0 in)
- Magnetic gap depth: 12 mm (0.5 in)
- Shipping Weight : 24.5 lbs
