Description

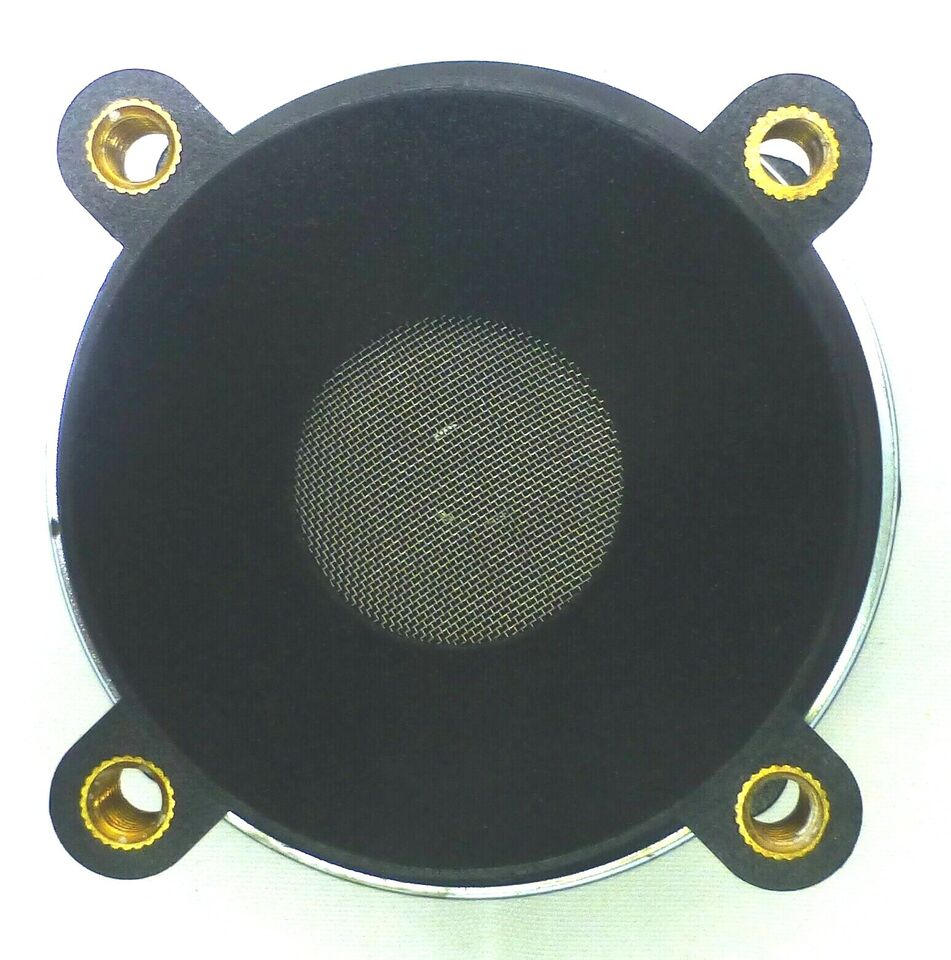

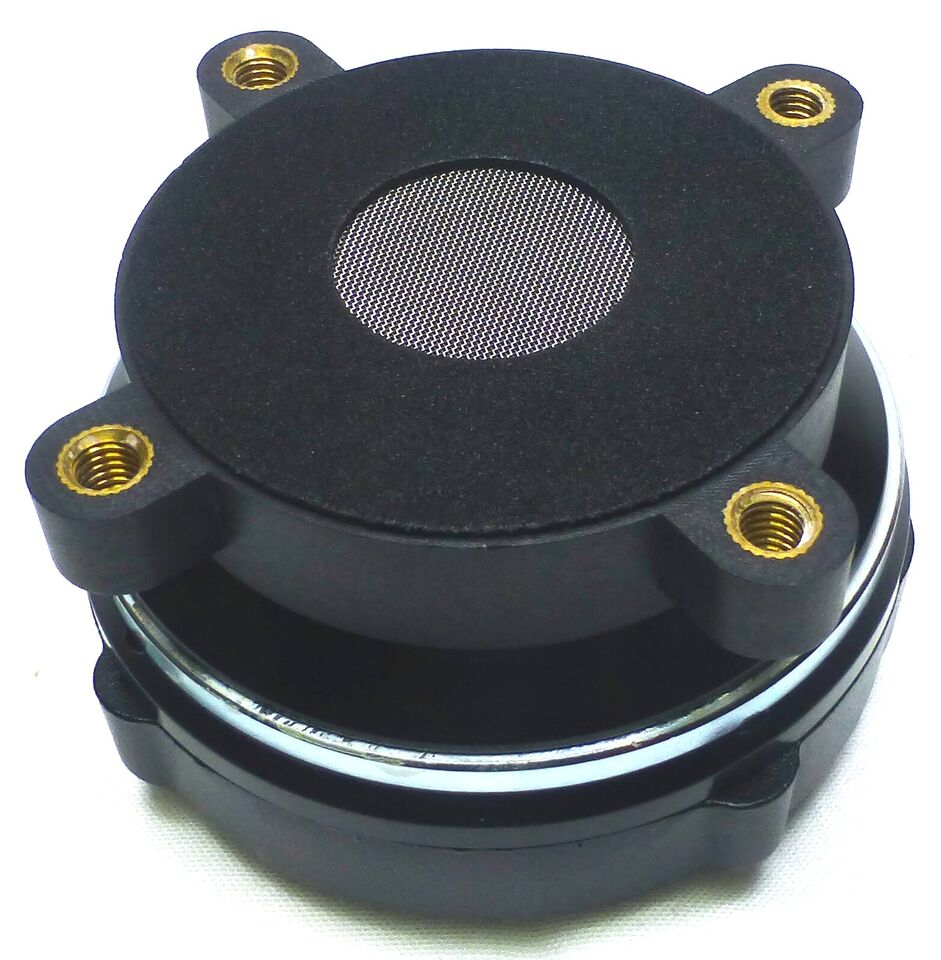

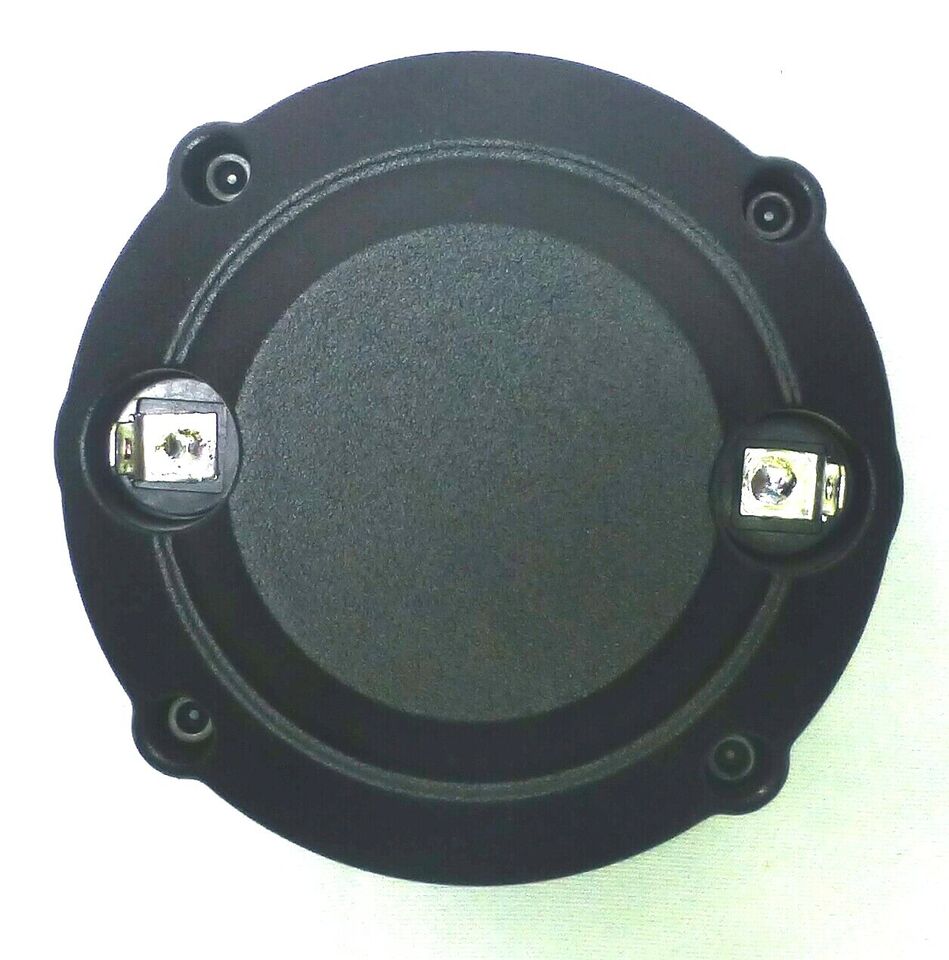

Brand New Compatible Aftermarket Replacement!
Used On QSC K Series K8, K10, K12, KLA12 Powered Speakers
*This Will Not Work on QSC K8.2 , K10.2 or K12.2 Speaker*
FEATURES
- 1" exit, neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
- 40Wrms (AES standard) power handling and 110dB sensitivity
- Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion
- One piece PETP film diaphragm and surround
- Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driver
SPECIFICATIONS
- Power rating - 50Wrms
- Nominal impedance - 8Ω
- Frequency range - 1200-20,000Hz
- Sensitivity - 110dB
- Recommended min. crossover (12dB/oct) - 2200Hz
- Voice coil diameter - 44mm/1.75in
- Voice coil material - Edgewound copper clad aluminium
- Magnet type - Neodymium
- Diaphragm material - PETP film
- Surround material - PETP film
- Mounting Information
- Overall depth - 55mm/2.2in
- Fitting - Flange (4 x M6 holes on 76mm/3in PCD)
- Throat exit - 25.4mm/1in
- Maximum width - 88.5mm/3.48in
- Minimum width - 82.0mm/3.23in
- Unit weight - 0.65kg/1.4lb
- Packed Dimensions & Weight
- Single pack size W x D x H - 90mm x 90mm x 60mm / 3.5in x 3.5in x 2.4in
- Single pack weight - 0.75kg/1.7lb
