Replacement Diaphragm for Altec 604, 802, 804, 806,808, 904 w/ STUD Terminal 16Ω

ZXPC
Price:
$38.99

Description

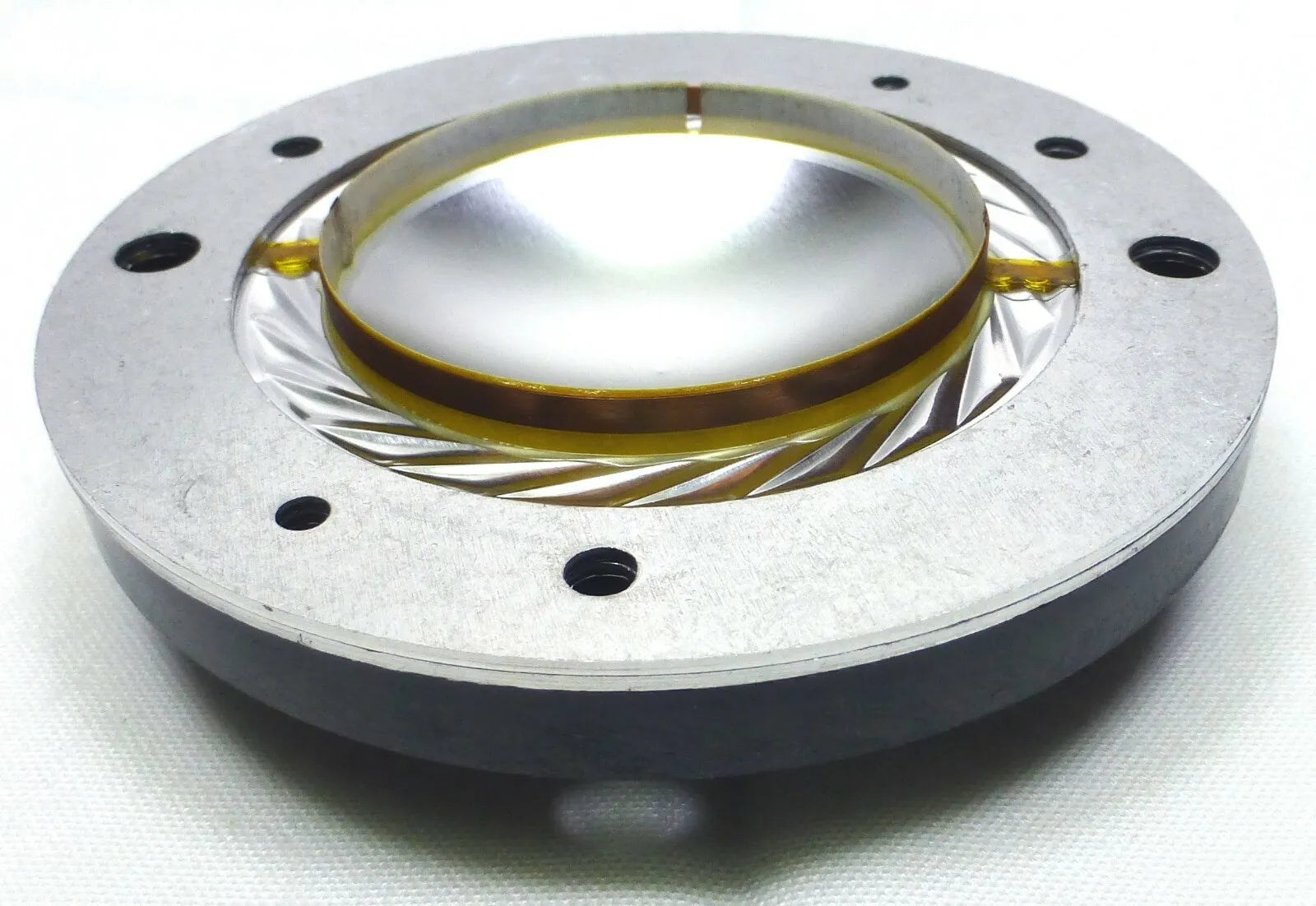

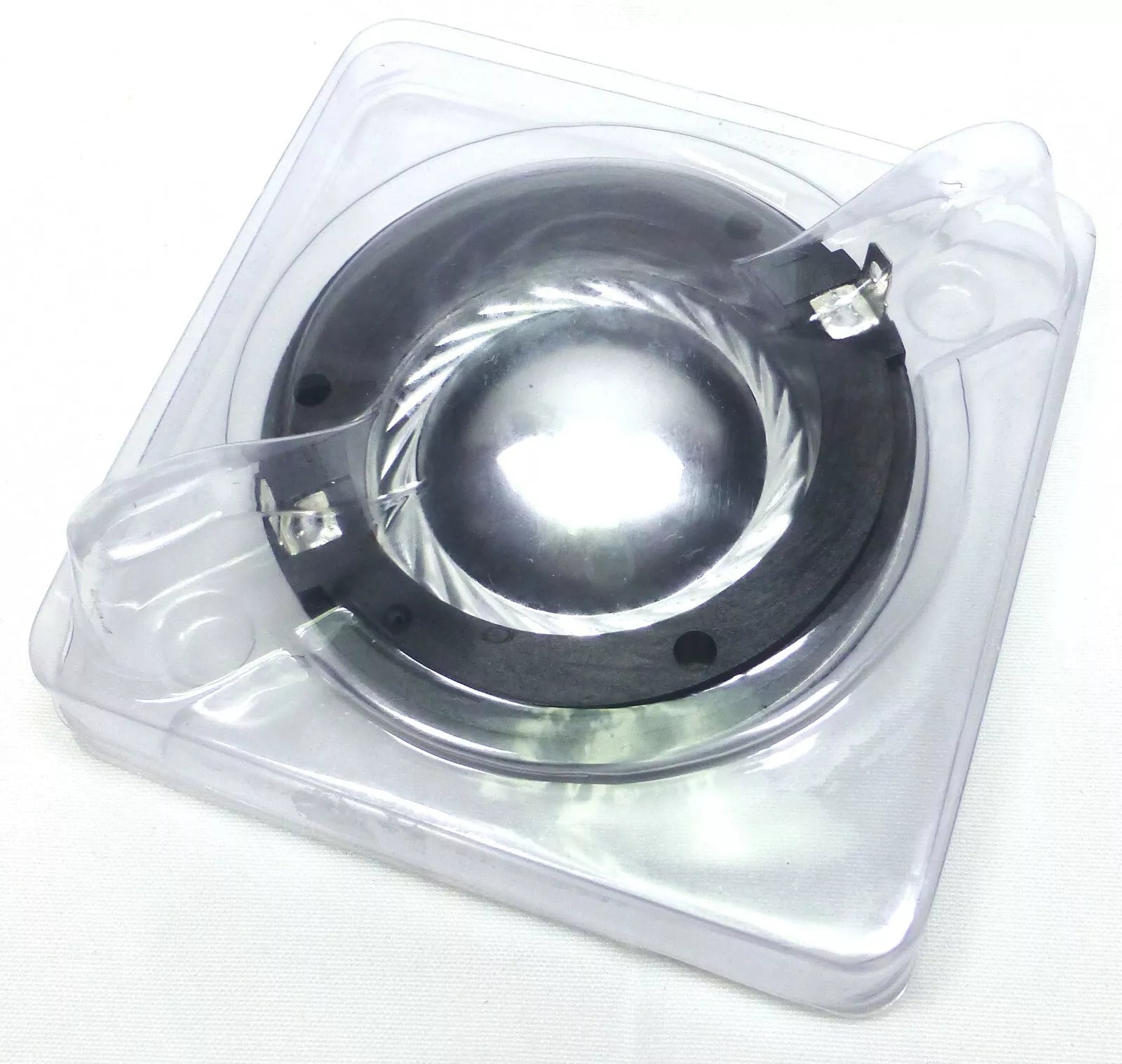

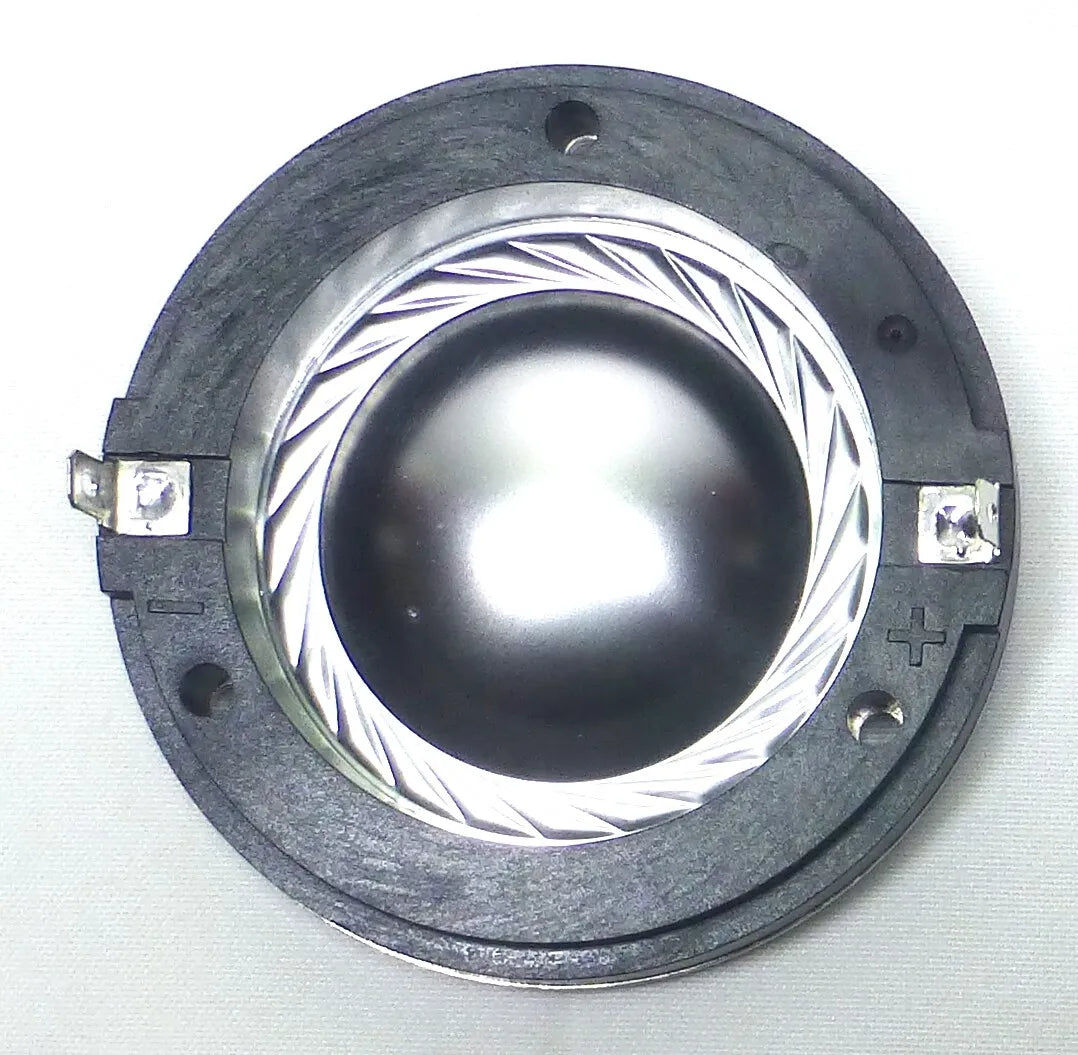

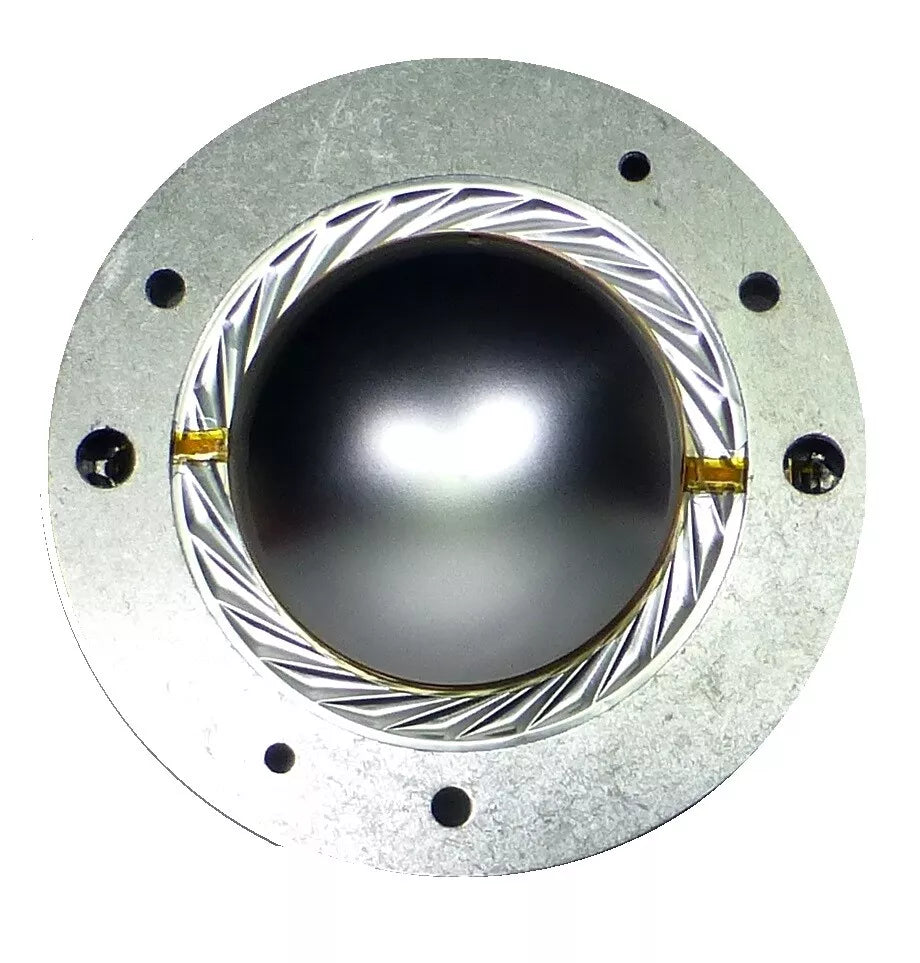

Brand NEW Aftermarket Diaphragm with STUD Terminals

Altec 604-8G, 604-8H, 604-8K; 605; 615; 802-8D, 802-8E, 802-8G, 802-8T; 804; 806-8A, 806-8T; 807-8A, 807-8Z; 808-8A, 808-8B, 808-8Z; 902-8A, 902-8B, 902-8T; 904; 906-8A; 908-8A, 908-8B; 909; 937; 938; 9815; 26421; 26421; 34853; 34853; 34852; 34852; 1228; 1228-16; 14; 17 and 19 drivers.

SPECIFICATIONS

  • Overall Diaphragm Diameter:  2 15/16 - 75mm
  • Voice Coil Diameter:  1 3/4 in - 44.5mm
  • Impedance:  16 ohms.
  • Mounting Holes: 2 1/4 in - 58mm Center To Center
