Description

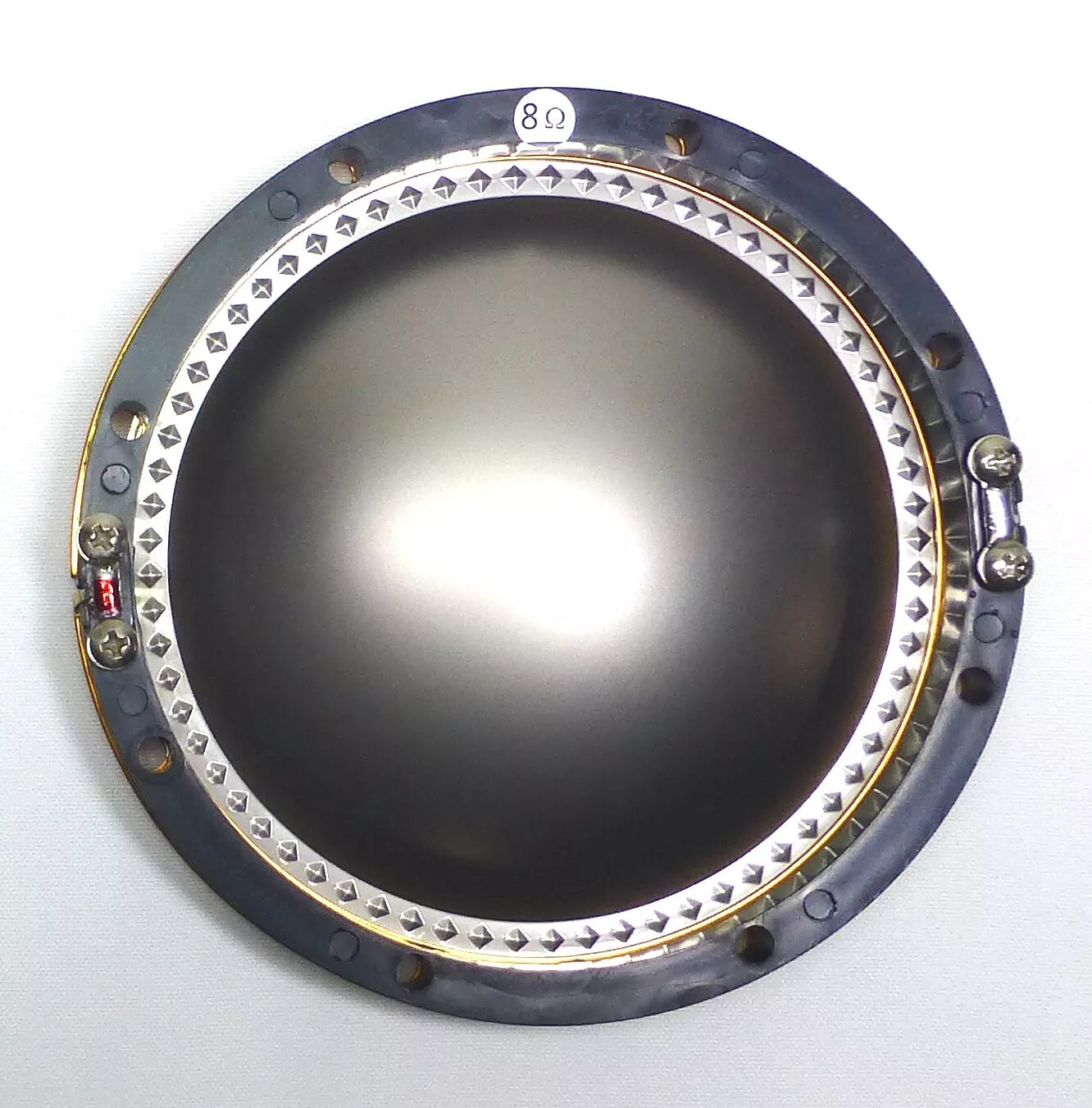

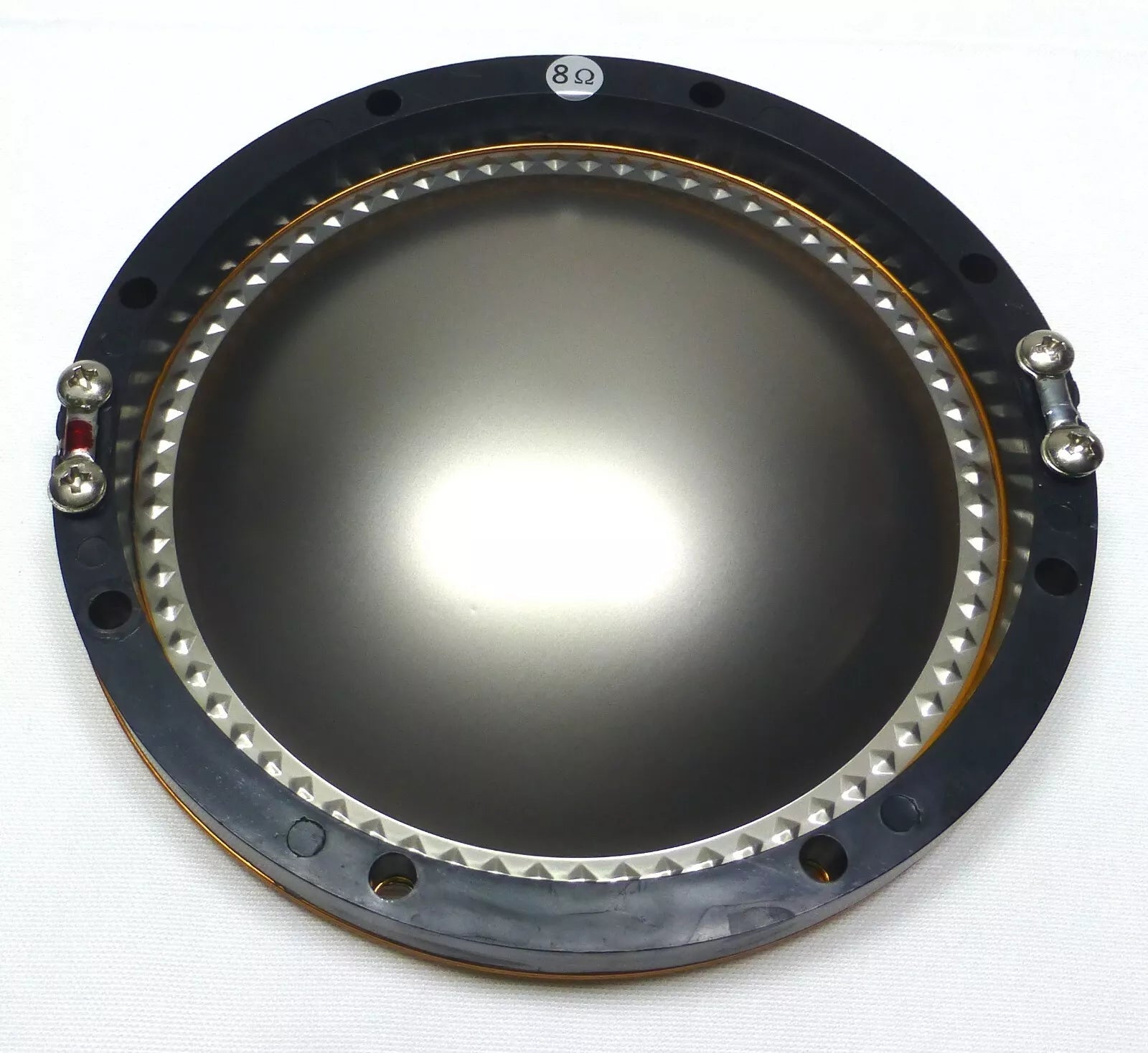

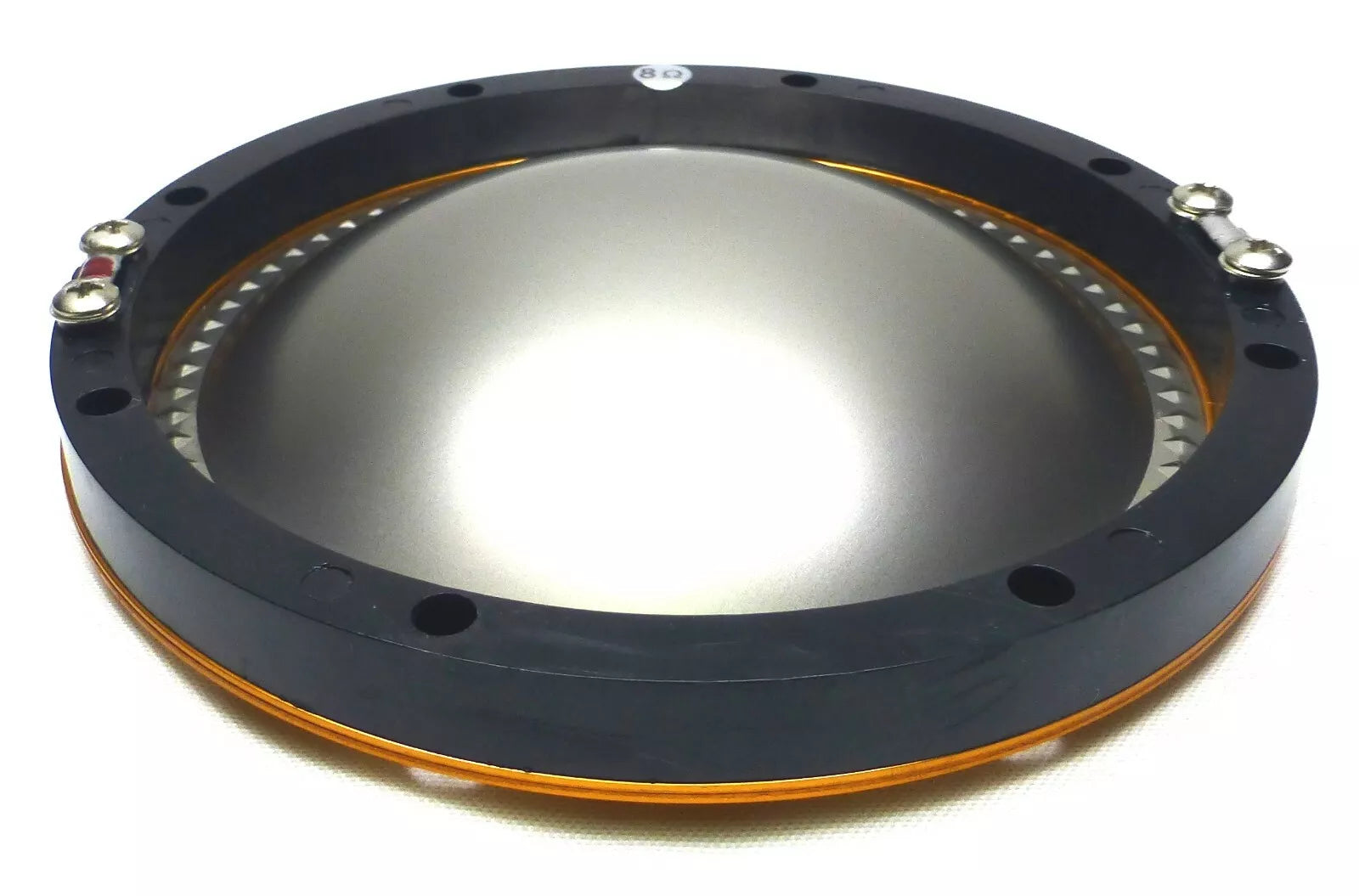

Replacement Diaphragm for JBL 2440H @ 8 Ω
With the 2 Pilot Holes For Mounting & Nomex Tape Around The Coil
This is a high quality aftermarket JBL 2440H with the 2 Piolot Holes. It has an edgewound aluminum ribbon voice coil (DCR 5.5 ohms) and the dome is titanium.This 8 Ohm diaphragm is an exact fit with the Pilot Holes for Mounting and The Nomex Tape Around The Coil For Stability.
SPECIFICATIONS
- Overall Diaphragm Diameter: 5" (127mm)
- Voice Coil Diameter: 3.91" (99.2mm)
- Diaphragm Thickness: 0.05mm
- Diaphragm Height: 18.4mm
- Nominal Impedance: 8 ohms
