Replacement Diaphragm For NX Audio-P7 Driver 72.2mm 8 Ohms 2" Exit Driver

ZXPC
Price:
$29.99

Description

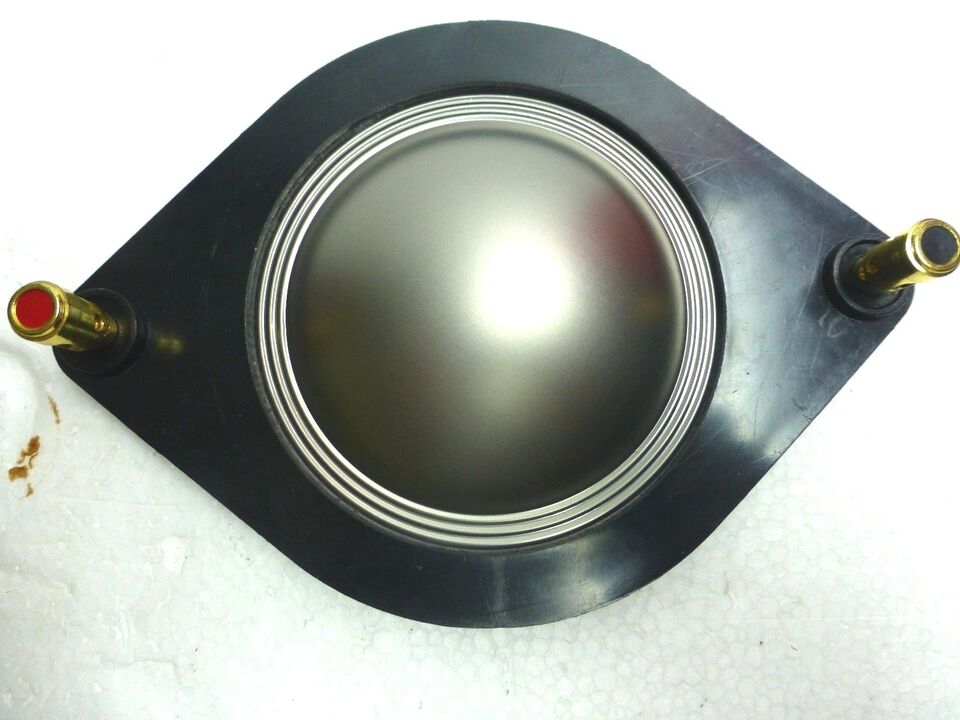

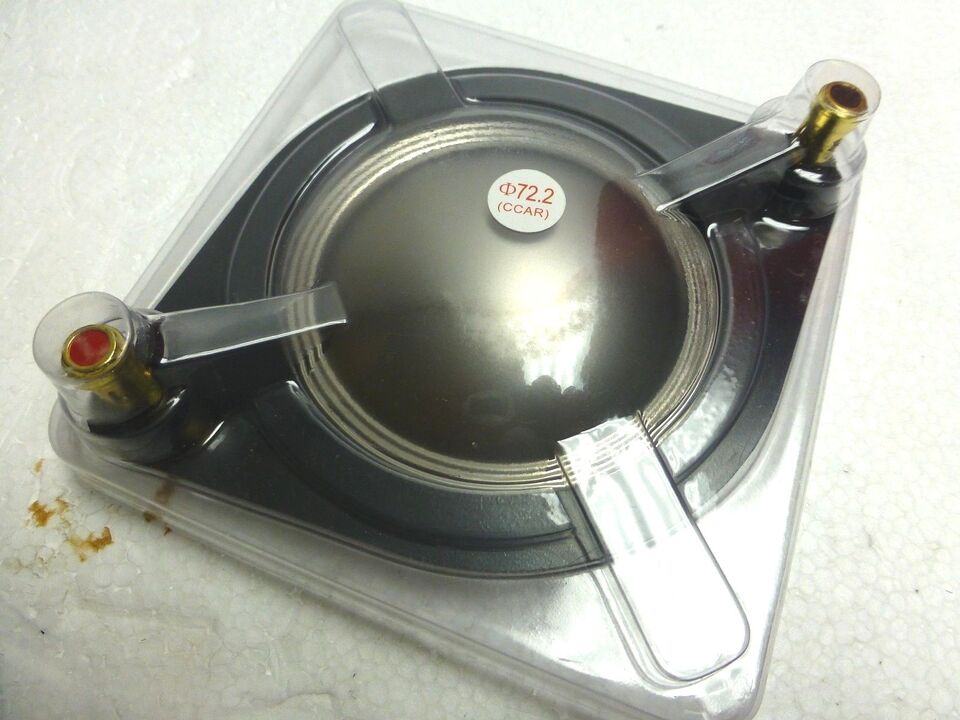

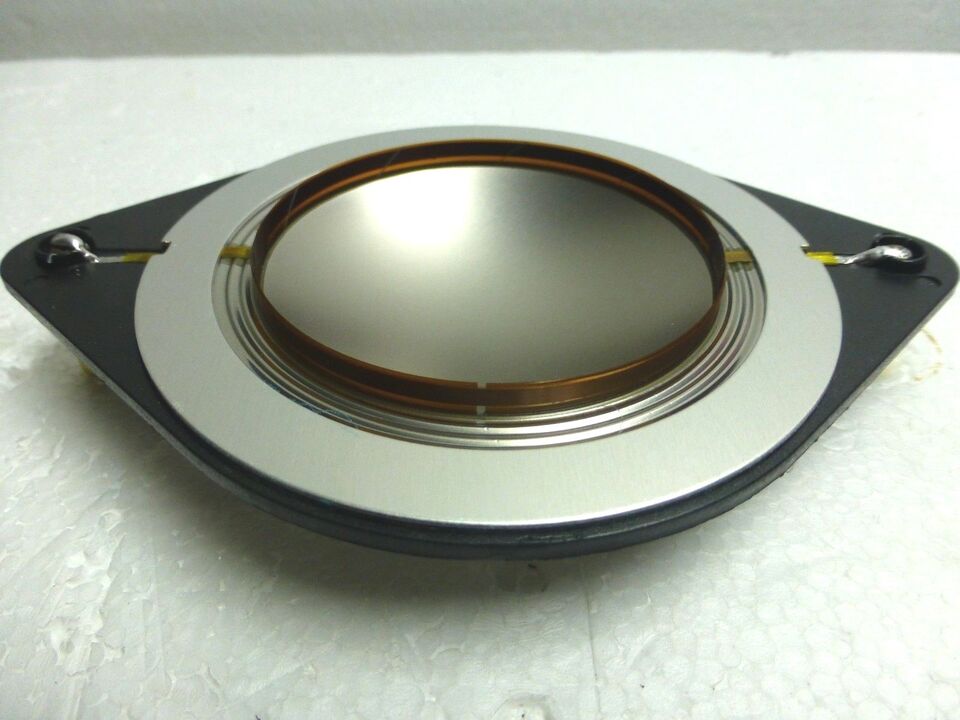

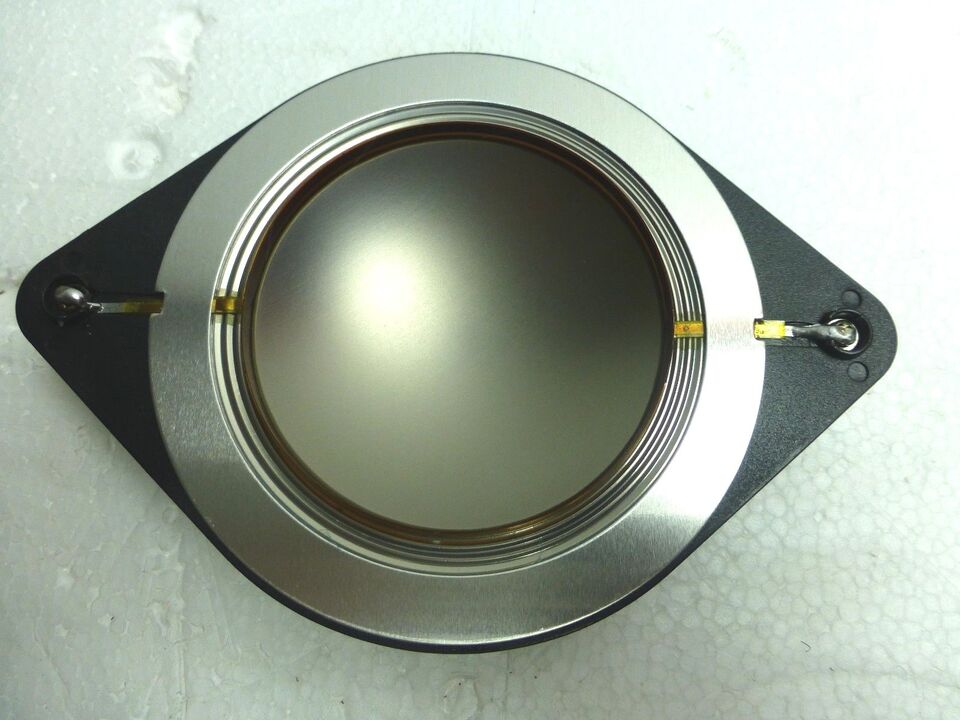

Brand NEW Aftermarket "Titanium" Diaphragm For NX Audio - P7 Driver
*Please verify that the diaphragm you are looking to replace matches the images and specifications provided in this listing.*

SPECIFICATIONS

  • Overall Diameter Across: 4.33" (110 mm)
  • Overall Diameter Length: 6.125" (155.5 mm).
  • Voice Coil Diameter: 2.84" (72.2 mm).
  • Diaphragm Material: Titanium KSV-CCAR.
  • Diaphragm Thickness: .05 mm.
  • Nominal Impedance: 8 ohm.
  • The Center Distance Of The Two Post Terminals : ~135.5mm.
