Description

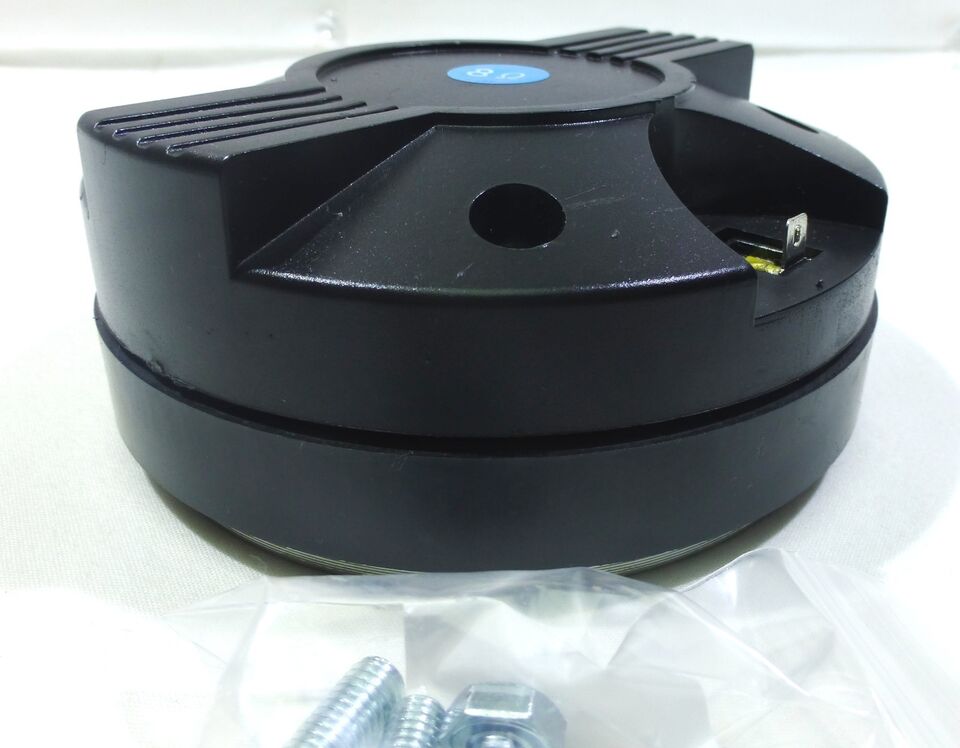

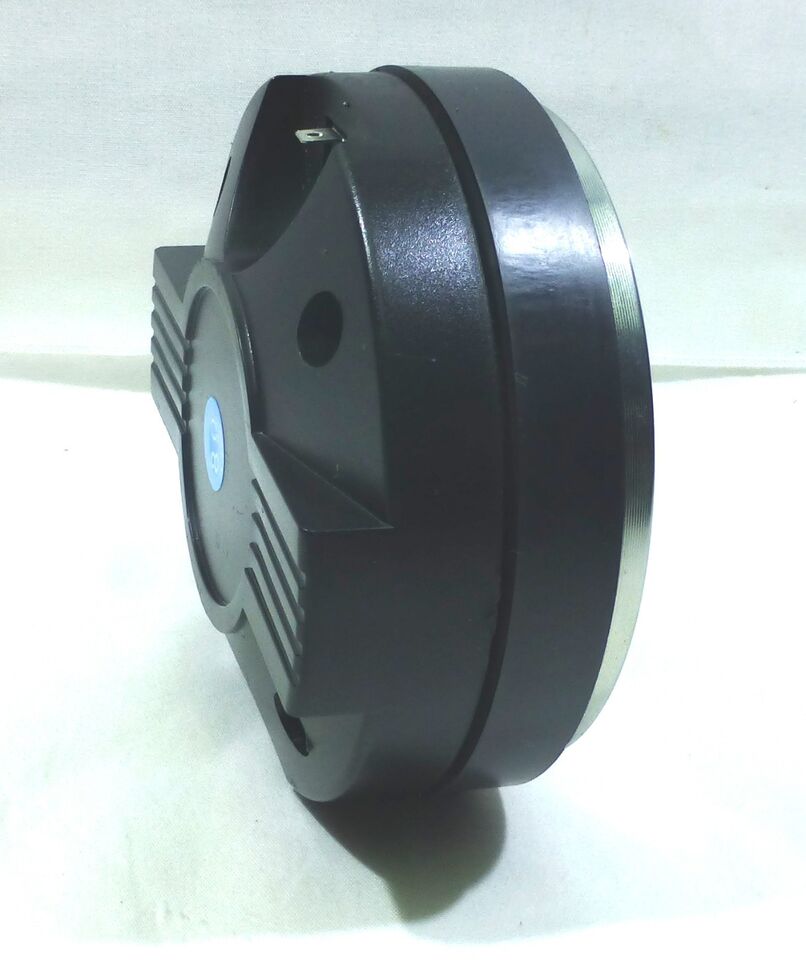

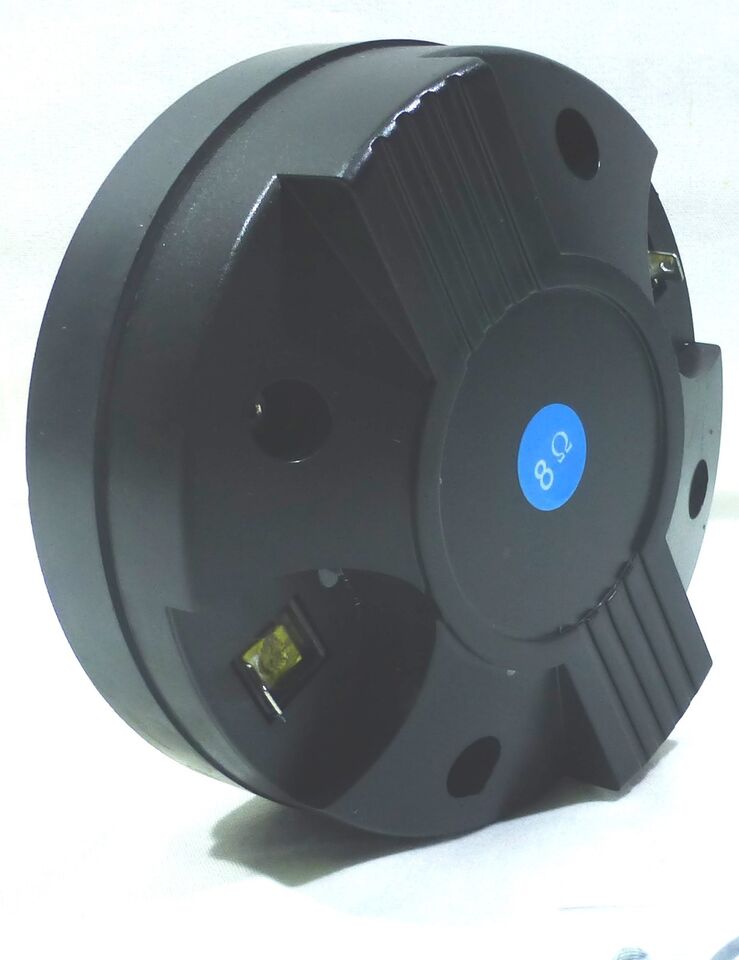

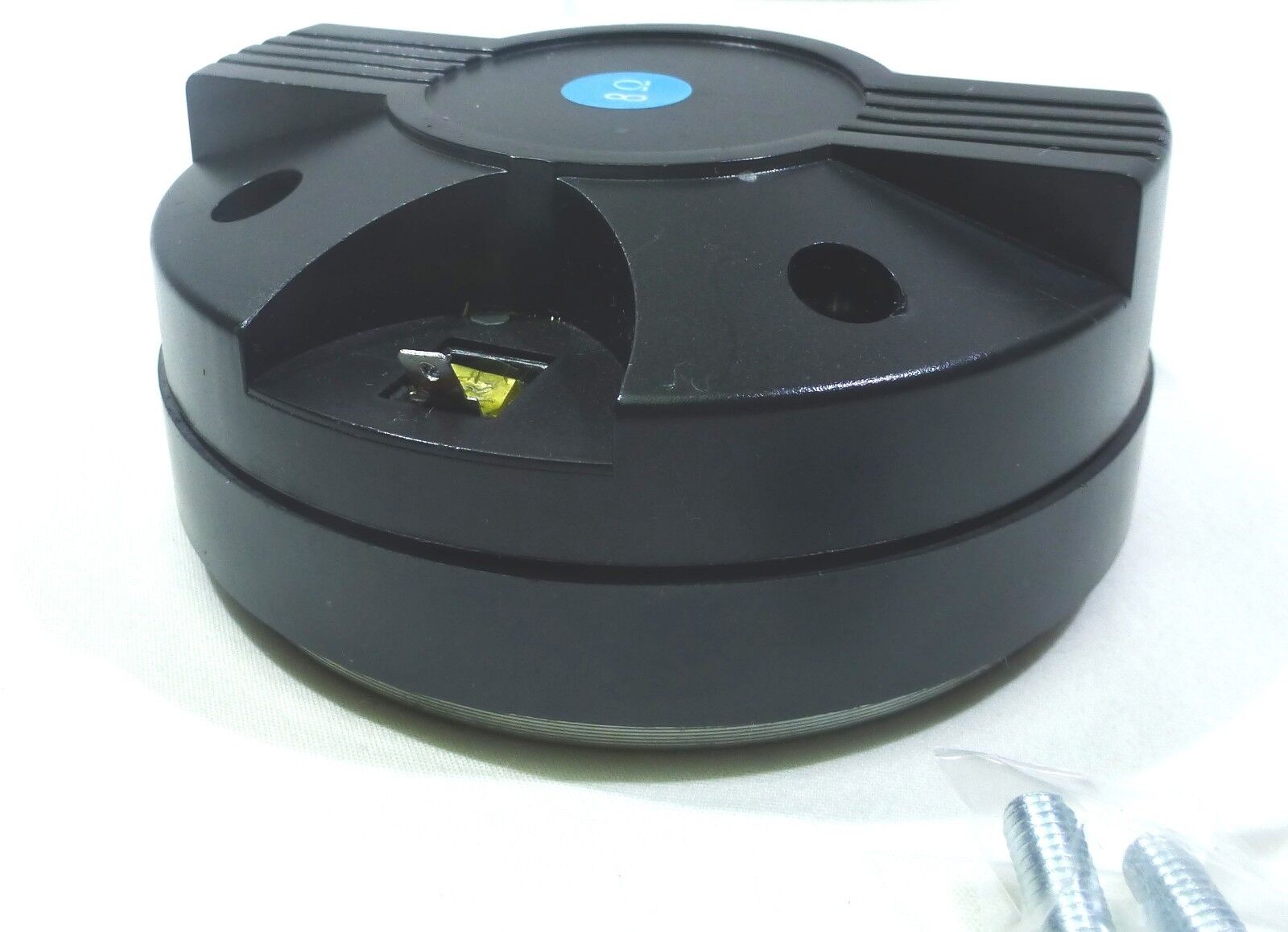

Brand NEW Aftermarket Bolt-On I" Exit Driver
An Up Grade Replacement Driver for Most
Behringer Drivers & Models : 44T30D8, 44T120H8, 44T3018, B312D, B315A, B612D, B615D, X71, 60440-02660, F1220, F1520, B1220 PRO, B1220DSP, B1520 PRO, B2520 PRO, TYPE X71-60440-52166 1" Bolt-On Models
Do Not Confuse This Driver With the Behringer Screw-On Driver (It's Not The Same)
*Please verify the driver you are looking to replace matches the images and specifications provided.*
SPECIFICATIONS
- Throat Size - 1", 25.4mm
- Nominal Impedance - 8 ohms
- Power Rating - 100W @ 1.2kHz
- Resonance - 540Hz
- Usable Frequency Range - 1.2kHz-20kHz
- Sensitivity - 106.1dB (1W/1m across 1.2kHz-20kHz)
- Magnet Weight - 34 oz.
- Voice Coil Diameter - 1.75", 44mm
THIELE & SMALL PARAMETERS
- DC Resistance (Re) - 6.1
- Coil Inductance (Le) - 1.6 mH
- Overall Diameter - 4.375", 111mm
- Depth - 2.1", 53mm
- Weight - 3 lbs, Gross 3.76 lbs
