Replacement Driver Screw-On 1 3/8" for Eminence, Yamaha, Carvin, Sunn, 16 Ohms

Replacement 16 Ohm Screw-On 1 3/8" Driver for Eminence, Yamaha, Carvin, Sunn

A Brand NEW Aftermarket Replacement 16 Ohm Driver

For Eminence, Yamaha, Sonic, Carvin Sunn & More 1 3/8" Screw-On Models.

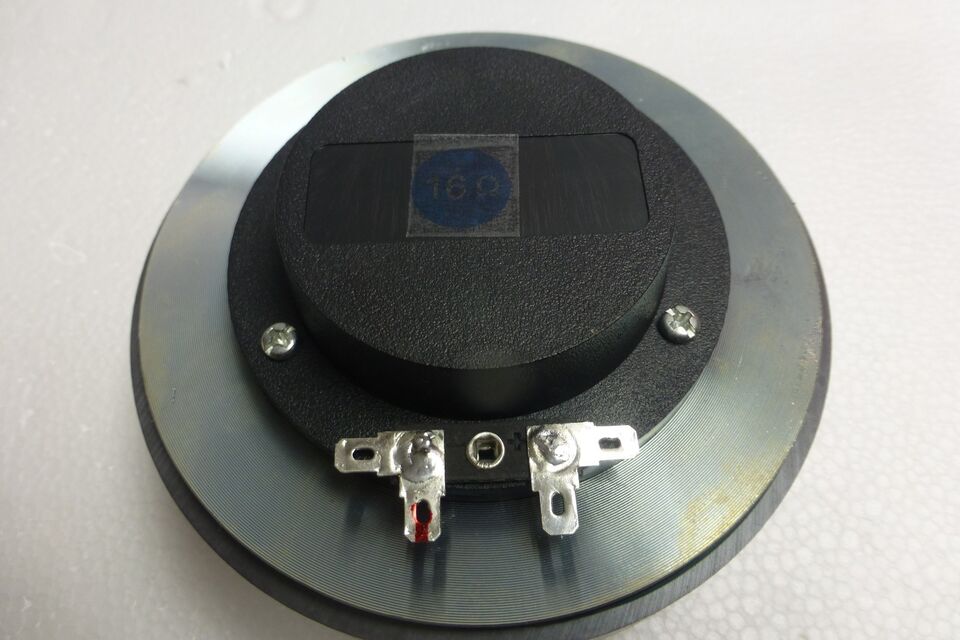

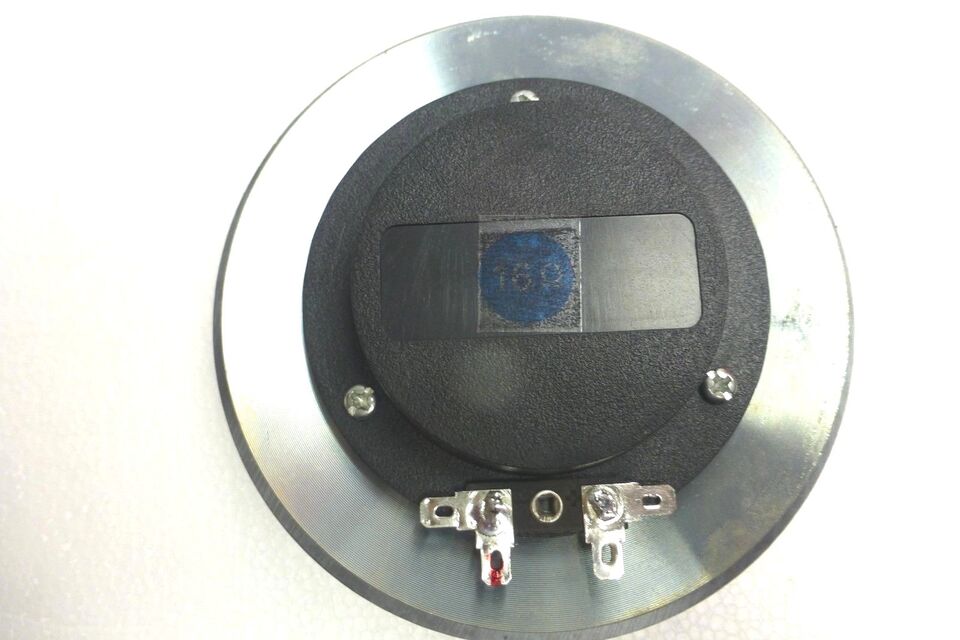

This is an exact fit, drop-in Complete Driver with Polarized quick-disconnect terminals for easy replacement.

SPECIFICATIONS

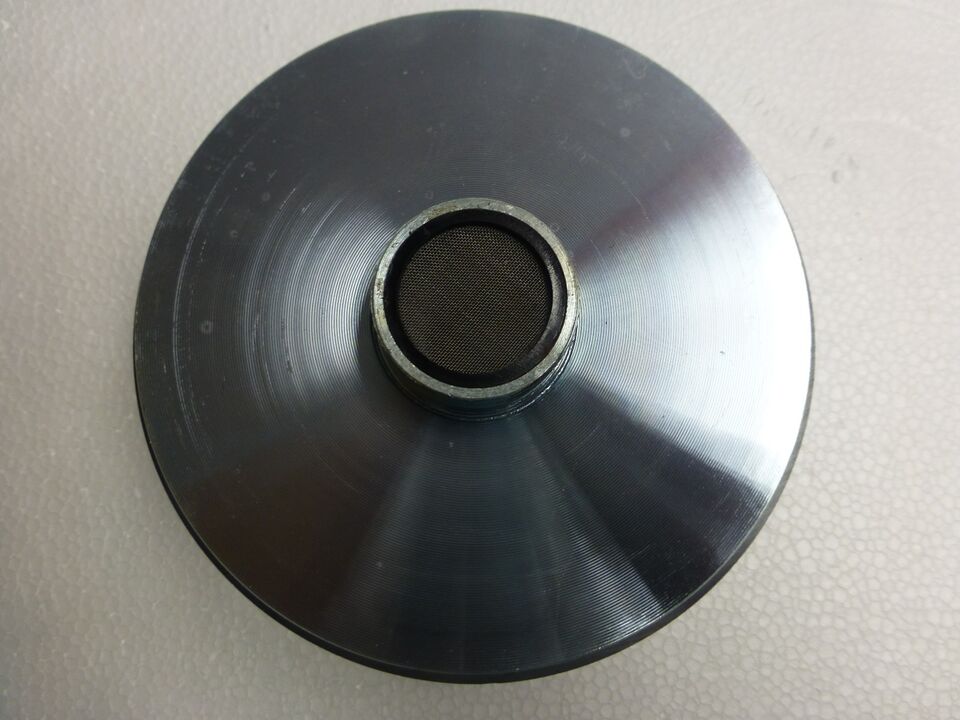

• Throat Size - 1", 25.4mm

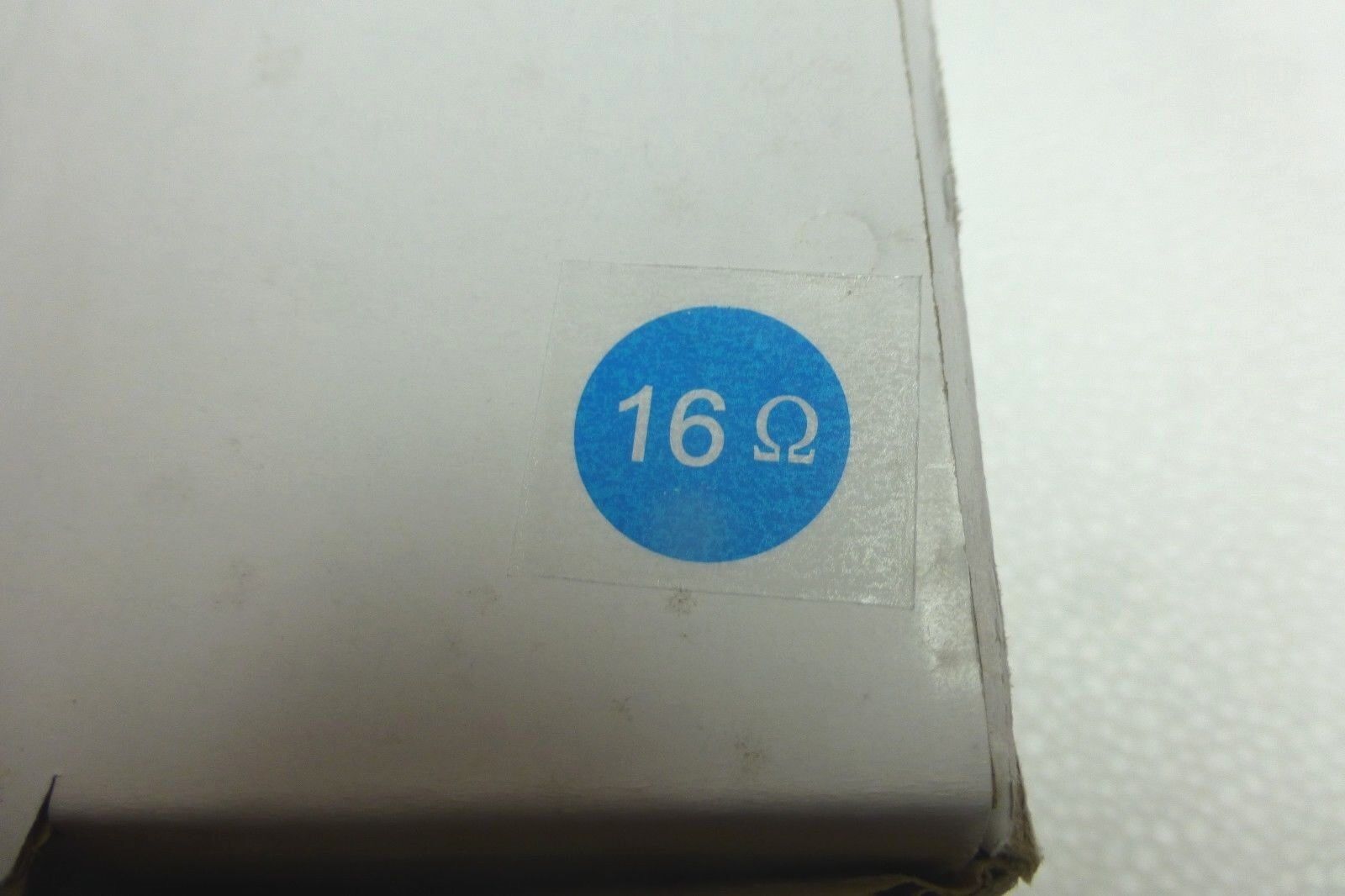

• Nominal Impedance - 16 ohms
• Power Rating - 80W @ 1.2kHz
• Resonance - 540Hz
• Usable Frequency Range - 1.2kHz-20kHz
• Sensitivity - 106.1dB (1W/1m across 1.2kHz-20kHz)
• Magnet Weight - 34 oz.
• Voice Coil Diameter - 2", 51mm

THIELE & SMALL PARAMETERS

• DC Resistance (Re) - 6.1
• Coil Inductance (Le) - 1.6 mH
• Overall Diameter - 5.25", 133mm

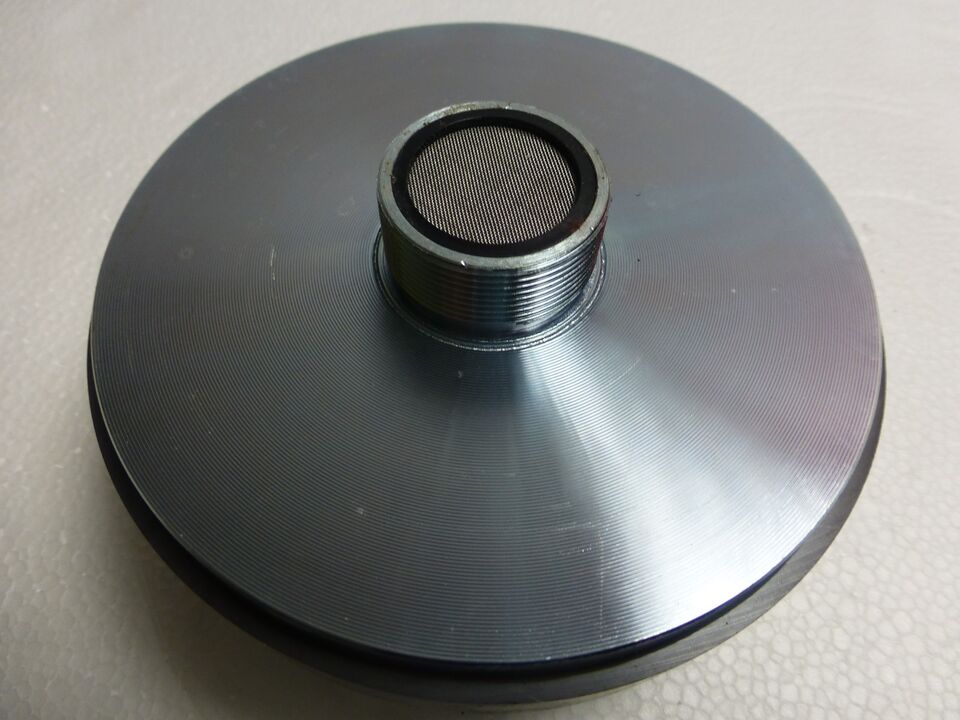

• Screw On Thread - 1 3/8" - 18
• Depth - 2.2", 56mm
• Weight - 5 lbs, Gross 5.76 lbs
