Description
New ! Compatible Aftermarket LASE RPL Mackie THUMP TH12/15 & TH12A/15A! (8 Ω Only).
for

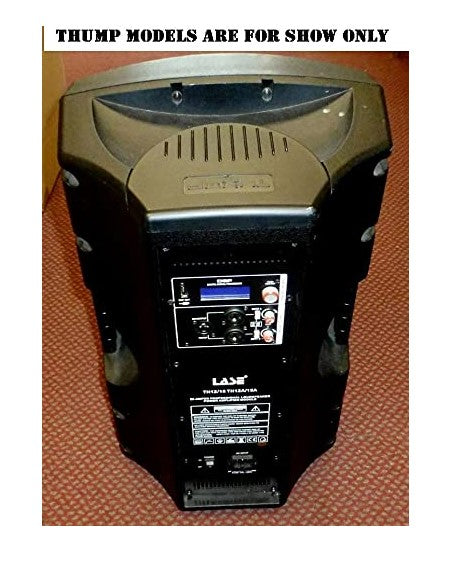

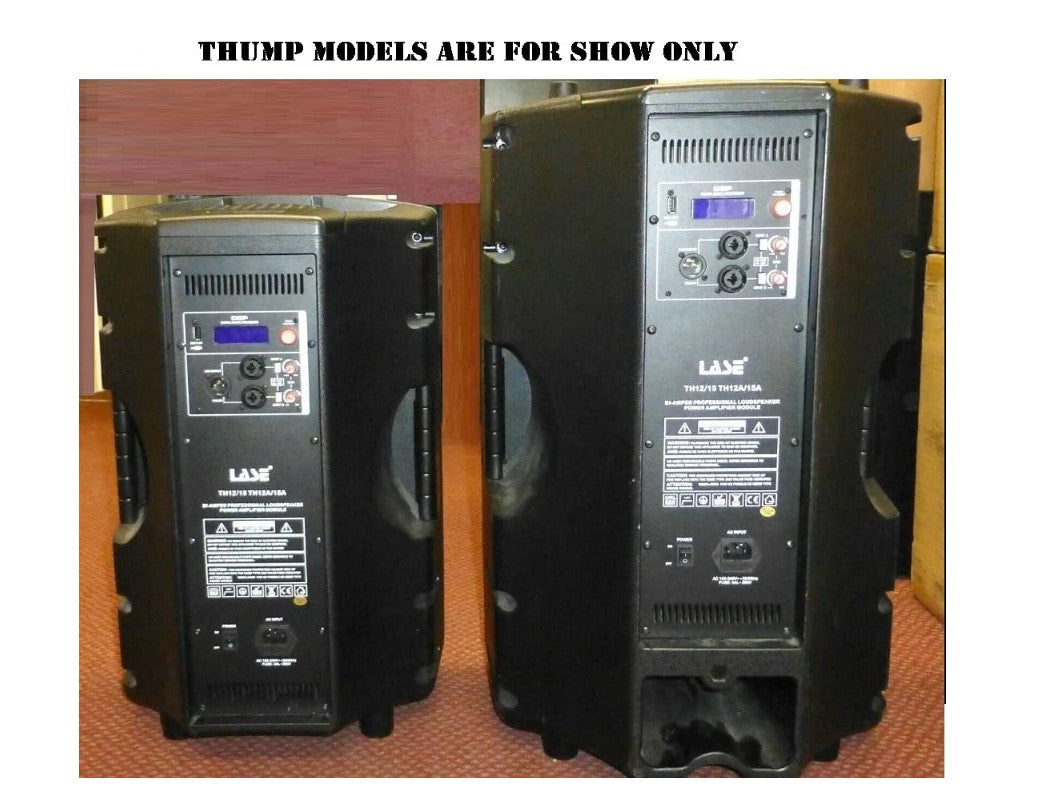

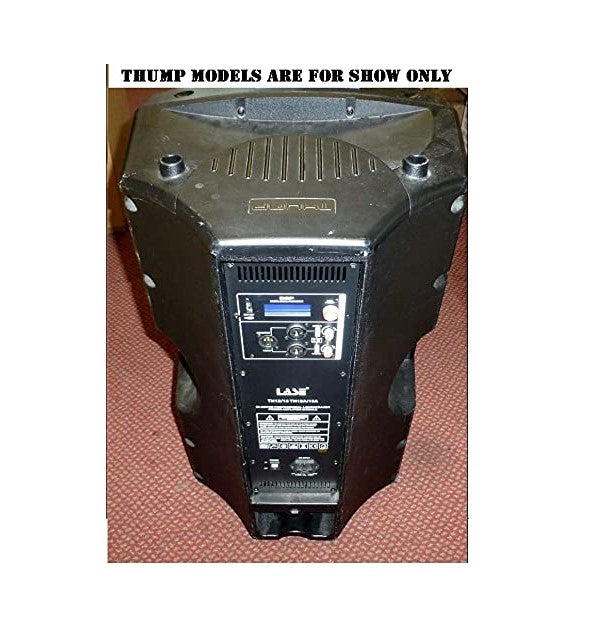

Mackie THUMP TH12/15 & TH12A/15A Powered Speaker Cabinet.
Professional Bi-Amp Power-Amplifier Module with DSP Control. Very Easy to Install.

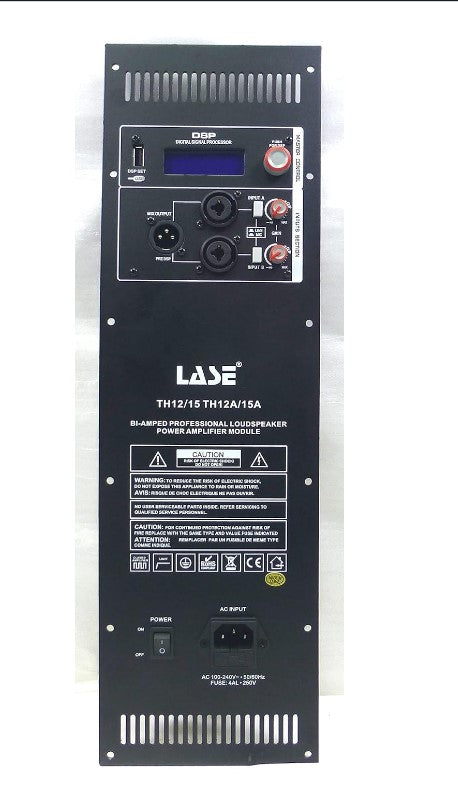

The New LASE RPL Mackie TH12/15 & TH12A/15A Compatible Replacement Professional Bi-Amp Power-Amplifier Module has a number of unique control.
Features
- (2) Two Individual Channel Inputs with Push Button mic/line level inputs.
- A Mix level XLR output ( Pre DSP).
- Master Control with DSP (digital signal processor) push button control.
- Works on 110V or 220V.
Specifications :
- Power Rated @ 8 Ω ONLY.
- Output Power : 20-20kHz, 1W with 1khz
- Power Output RMS : 500 W RMS, 1000 W peak (overall) @ 8 Ω.
400 W RMS, 800 W peak (LF)
100 W RMS, 200 W peak (HF) - Frequency Response(+o/-0.3dB,1W/8Ω) : 20 Hz - 34 kHz
- Crossover Frequency: 1.7Khz
- THD: 20 Hz - 20 kHz for 1 W <0.1%
- Signal-to-Noise Ratio: >112dBA
- Channel separation: (Crosstalk) at 1 kHz >70 dB
- Input Connectors (per channel): 3-pin XLR, 1/4" phono, electronically balanced.
- Output Connector (Mix Out) : 3-pin XLR, electronically balanced
- Class: D wiring
- Operating voltage: 110 V / 220 V nominal
- Dimensions: (L×W×D) : 18.4" x 5.43" x 2.55" (468mm x 138mm x 65mm).
- Packing dimension: 20.55" x 8.07" x 3.9" (522mm x 205mm x 100mm)
- Net weight :2.97lbs (1.35Kgm)
- Gross weight :4.4lbs(2Kgm)
