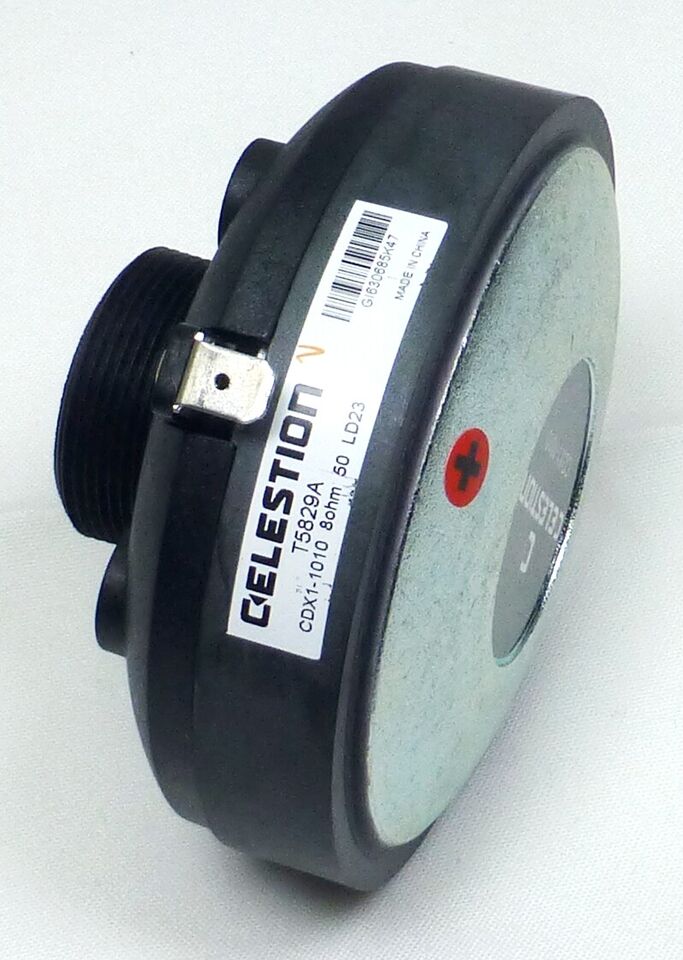

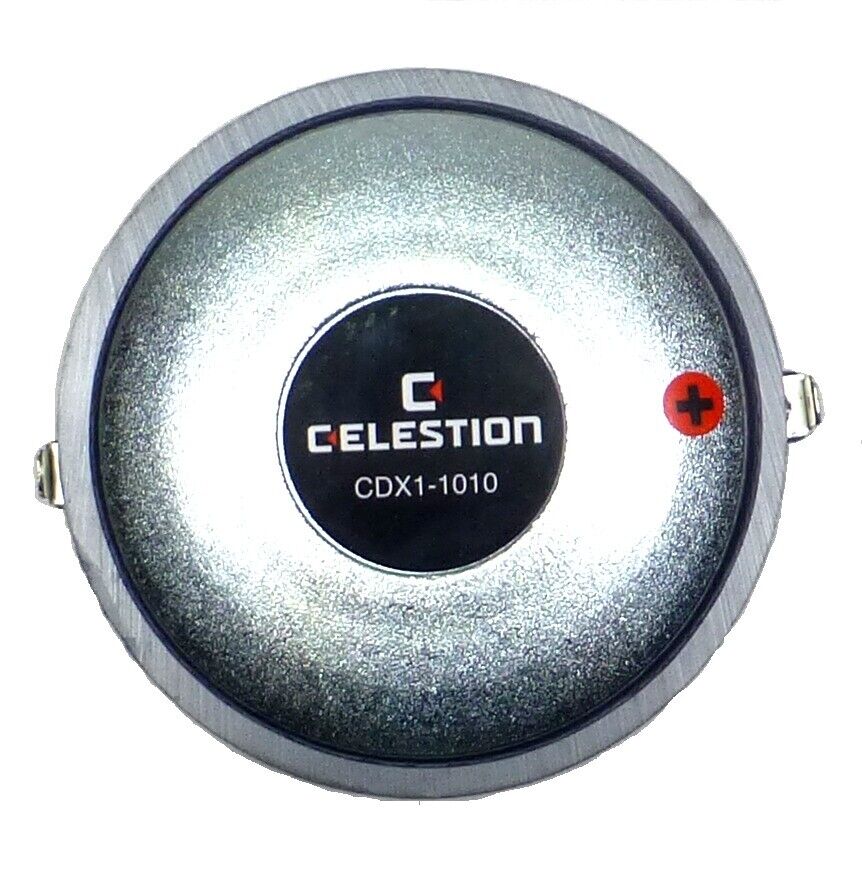

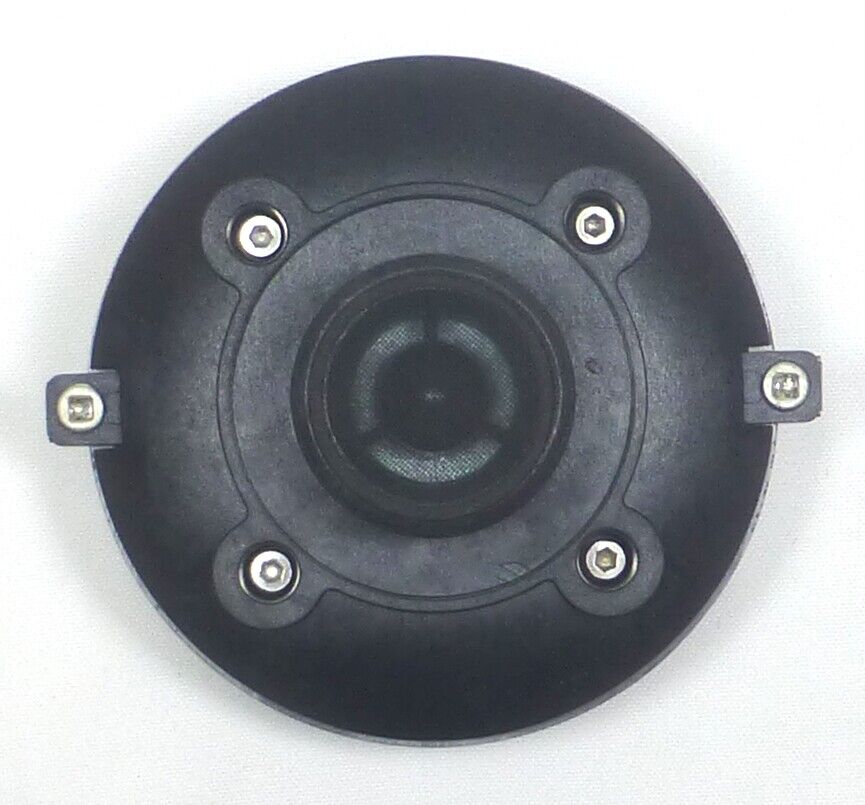

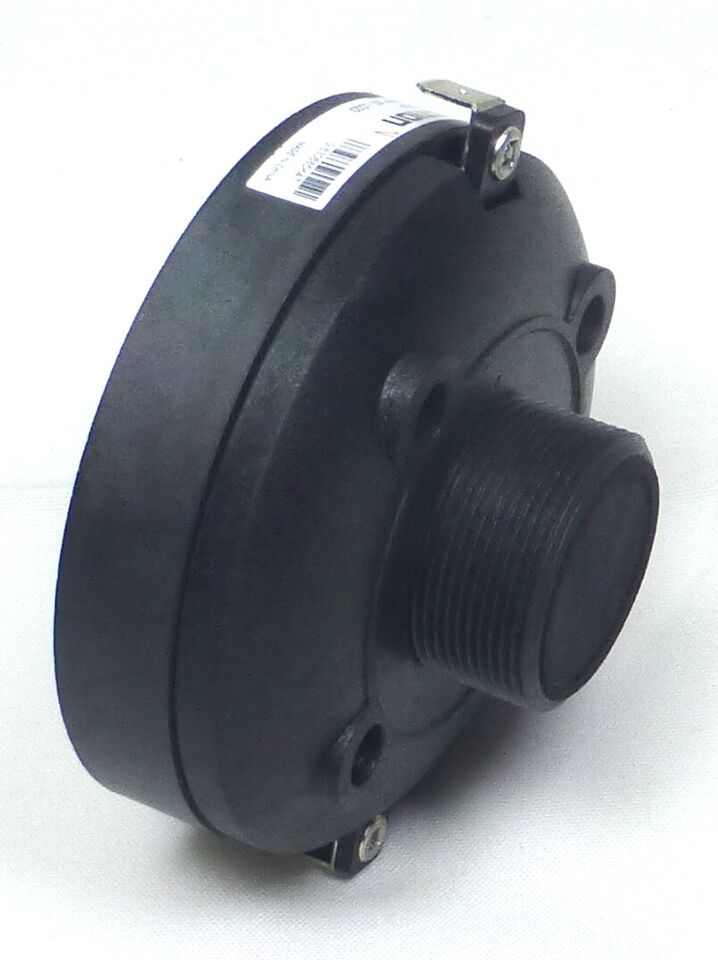

Replacemet Cerwin Vega COMP 00009 Tweeter Driver / Ferrite Screw-On 8 Ohms

• 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
• 15W rms power handling (AES standard) and 107dB sensitivity
• Sound Castle™ clamping ensures even pressure on diaphragm assembly for reduced distortion
• One piece PETP diaphragm and surround
• Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design

SPECIFICATIONS

• Power rating - 15 W rms (AES standard).
• Nominal impedance- 8 Ω
• Frequency range- 1,500-20,000Hz
• Sensitivity - 107dB 1W/1M
• Recommended min. crossover - 2,200Hz (12dB/oct)
• Voice coil diameter- 1-3/8"-18 TPI
• Voice coil material- Edgewound copper clad aluminium
• Magnet type- Ferrite
• Diaphragm material- PETP film
• Surround material- PETP film
• Mounting Information
• Overall width- 120mm/4.7in
• Overall depth- 56mm/2.2in
• Fitting- Screw (35mm, 1.38in dia)
• Throat exit- 25.4mm/1in
• Unit weight- 1.8 lbs (816.46gm)

Packed Dimensions & Weight

• Single pack size W x D x H- 140mm x 170mm x 70mm (5.5in x 6.7in x 2.8in)
• Single pack weight- 3lbs (1360.78gm)
